紫外線二極體放大器 Amplifier |
- One-channel and multi-channel
amplifier boards
- Link between a small current (of
a photodiode) and usually
applied signal analysis technology
(controller, multimeter)
- All boards are also available as
boxed and shielded laboratory module
with traceable calibration
-
產品目錄下載
|
|
|
| Multiboard - Multfunctional
2-Channel Photodiode Amplifier |
|
|
Dual Channel Photodiode Amplifier
Versatile, multi- configurable
amplification of currents from pA
range up to μA range.
Well suited for experimental setup
and small series.
MULTIBOARD 詳細規格
|
|
|
| Digiboard -
Transimpedance Amplifier Board |
|
|
Versatile 2-channel current to
voltage converting amplifier, one
analog and one digital output
Digiboard
詳細規格
|
|
|
| AMPCON_LO -
Low sensitivity transmitter of
photocurrent to 4-20mA current loop |
|
|
Transmitter (current amplifier) with
output current of 4-20mA to include
photodiodes
into an industrial 4-20 mA data bus
maximum photocurrent: 250μA
AMPCON_LO
詳細規格
|
|
|
| AMPCON_MED -
Medium sensitivity transmitter of
photocurrent to 4-20mA current loop |
|
|
Transmitter (current amplifier) with
output current of 4-20mA to include
photodiodes
into an industrial 4-20 mA data bus
maximum photocurrent: 2,5μA
AMPCON_MED 詳細規格
|
|
|
| AMPCON_HI -
High sensitivity transmitter of
photocurrent to 4-20mA current loop |
|
|
Transmitter (current amplifier) with
output current of 4-20mA to include
photodiodes
into an industrial 4-20 mA data bus
maximum photocurrent: 18nA
AMPCON_HI
詳細規格
|
|
|
| VOLTCON_LO
- Low sensitivity transmitter of
photocurrent to a 0-5V signal |
|
|
Voltage amplifier, conversion
of photocurrent into a 0-5V output
signal
maximum photocurrent: 500μA
VOLTCON_LO 詳細規格
|
|
|
| VOLTCON_MED -
Medium sensitivity transmitter of
photocurrent to a 0-5V signal |
|
|
Voltage amplifier, conversion
of photocurrent into a 0-5V output
signal
maximum photocurrent: 5μA
VOLTCON_MED 詳細規格
|
|
|
| VOLTCON_HI -
High sensitivity transmitter of
photocurrent to a 0-5V signal |
|
|
Voltage amplifier, conversion
of photocurrent into a 0-5V output
signal
maximum photocurrent: 40nA
VOLTCON_HI 詳細規格
|
|
|
| PHOTODIODE
AMPLIFIER : REFERENCE STANDARD -
with traceable calibration |
|
|
|
|
手提式紫外線燈(計時功能) UV Hand Lamp with timer function Lamps |
The lamp is available with an
individual traceable calibration. The consigned certificate
provides information about the spectral output data and the
correlation between irradiance and distance to the lamp.
Please ask for this calibration service.
Attention: UV radiation can be harmful. Always
protect eyes and skin. |
|
|

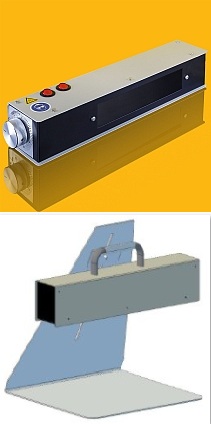

UV Hand Lamp LPL-01 |
- UV radiation source with one or two low
pressure lamps (UVA, UVB or UVC)
- High UV transparent UG11 window glass for
high UVA and UVB radiation emission
- No emission of visible light (UVA, UVB-type)
- Rugged mechanical timer
Applications: irradiation of biological
and pharmaceutical samples, material inspection,
fluorescence excitation, forensic and
contamination analysis
LPL-01 詳細規格
|
| Upgrade - hand lamp
fixture - LPL-01-stand |
- The solid fixture enables easy lamp
mounting.
- The fixture is height adjustable for varying
the irradiation level (and irradiated area).
- A scale allows reproducible height
positioning.
- Order number: LPL-01-Stand
|
|
|
| 氮化鋁鎵紫外線二極體
UV photodiodes (GaN and AlGaN) |
About the material (Aluminium)Gallium
Nitride (Al)GaN
(Al)GaN is a new semiconductor material for visible blind UV
photodiodes. By modification of the Al – to - Ga
stoichiometry it is possible to produce photodiodes with
different spectral behaviour. This allows to offer
Photodiodes sensible for broad band UV (UVA+UVB+UVC), for
UVB-only and for UVC only without using a filter. |
|
|
AG38S / UVA+UVB+UVC |
- Broad Band UVA+UVB+UVC photodiode
- Active Area A = 0,076 mm2
- TO18 metal housing
- 10mW/cm2 peak radiation results a
current of approx. 700 nA
AG38S 詳細規格
|
|
|
|
AG38AS-SMD-S (GUVA-S20ED) / UVA |
- UVA selective photodiode
- Active Area A = 0,076 mm2
- Optimally suited for low-cost UV consumer
applications
- Intrinsicly unsensitive in the visible due
to the wide-bandgap semiconductor material GaN
- Small SMD package (1608)
- High speed and low noise
AG38AS-SMD-S (GUVA-S20ED) 詳細規格
|
|
|
|
AG32S / UVB+UVC |
- UVB sensitive photodiode
- Active Area A = 0,076 mm2
- TO18 metal housing
- 10mW/cm2 peak radiation results a
current of approx. 700 nA
AG32S 詳細規格
|
|
|
|
AG32S-SMD (GUVB-S10GD) / UVB/UVC photodiode
|
- UVB sensitive photodiode
- Active Area A = 0,076 mm2
- 3528 SMD housing with Si window
- 10mW/cm2 peak radiation results a
current of approx. 700 nA
AG32S-SMD (GUVB-S10GD) 詳細規格
|
|
|
|
AG28S / AlGaN |
- UVC sensitive photodiode
- Active Area A = 0,076 mm2
- TO18 metal housing
- 10mW/cm2 peak radiation results a
current of approx. 240 nA
AG28S 詳細規格
|
|
| |
| 紫外線燈泡 UV Bulbs |
|
Model (Datasheet)
|
Description
|
Applications |
|
PL-L Cleo Comp. 36W IV UVA
|
36W / UVA lamp |
- Suntanning/skin pigmentation
- Insect traps
- Photochemical processes
|
 |
|
PL-L 36W / 01 |
36W / UVB lamp |
- Phototherapy in dermatology (psoriasis, SUP)
- These lamps produce UV-B radiation which is harmful
to human skin and eyes. They are therefore only
available for medical and industrial applications
|
|
|
|
PL-L 36 W 4P |
36W / UVC lamp |
- Killing or inactivating bacteria, viruses and other
primitive organisms
- Air, water and surface disinfection in hospitals,
bacteriological research and pharmaceutical
environments, and food processing industries such as
dairies, breweries and bakeries
- Disinfection of drinking water, waste water,
swimming pools, air conditioning systems, cold storage
rooms, packing materials etc.
- Used in a variety of photochemical processes
|
|
|
|
HF-R 136 PLL 36W |
Flat,
lightweight high-frequency electronic regulating ballast to
control the above offered 36W UV lamps, stepless regulation
of the lamp power with a 0-10V input voltage. |
- 1-10V installations with daylight linking and/or
movement detection (for energy savings)
- 1-10V installations with remote control systems
(combining energy savings with comfort)
- Installations with emergency back-up, according to
IEC 60598-2-22
|
|
|
|
|
|
|
 |
|
