The Echo is a hand-held Vector Impedance Analyzer (Vector Network Analyzer), Spectrum Analyzer, Power Meter, and Frequency Domain Reflectometer (FDR) in one instrument. Echo models come in frequency ranges of 4MHz-to-1.0GHz or 4MHz-to-2.5GHz. The VIA Echo Network Analyzer was designed for performing antenna testing and tuning, transmission line testing and fault locating, cellular site turn-up testing and troubleshooting. It can be used for individual component testing, system or network testing. In a production environment Echo can be used to verify components and assemblies the same as equivalent Agilent (old HP) Network Analyzers at a fraction of the cost.

View Datasheet

Time Domain Reflectometer (TDR): 20/20 TDR

The 20/20 Step Time Domain Reflectometer (TDR) was designed to provide the clearest picture of coaxial or twisted pair cable lengths and to pin-point cable faults. Step TDR’s, unlike Pulse TDR’s, have no dead-zone on any range and they can provide an impedance (Z) reading for the cable, both graphically and digitally.

View Datasheet

Vector Impedance Analyzers: VIA Bravo

The VIA Bravo product line is a family of general purpose vector impedance analyzers used to measure impedance and resonant frequencies of circuits and antennas from 100 kHz to 200 MHz. VIA Bravo analyzers are available in both single port (S11) and dual port (S11/S21) versions. Applications include Commercial Radio, Aviation, and Radio Frequency Identification (RFID).

View Datasheet

SWR Meter: CellMate EX

The CellMate EX is an antenna analyzer that operates in the cellular frequency range of 600 – 999 MHz. This low cost analyzer provides graphical plots of SWR and Return Loss, numerical results, and plot storage.

View Datasheet

SWR Meter: 140-525

AEA’s 140-525 Analyzer operates in the UHF/VHF band, and has a frequency range of 135 -525 MHz. The 140-525 provides graphical plots of VSWR and Return Loss, numerical results, and plot storage.

View Datasheet

SWR Meter: VIA

The VIA Analyzer is an impedance analyzer for the HF band. The VIA has a frequency range of 100 kHz to 54 MHz. Features include graphical representations of SWR, Return Loss, Impedance, and Resistance.

View Datasheet

Network Analyzers: Bravo MRI

The Bravo MRI Analyzer product line is used by Medical Industry engineers, installation specialists, production, and QA teams to test and tune transmit and receive coils in MRI Systems. Bravo MRI Analyzers are available in single and dual port versions. This 100 KHz to 200MHz Analyzer has a reduced power output and coil Q calculations.

View Datasheet

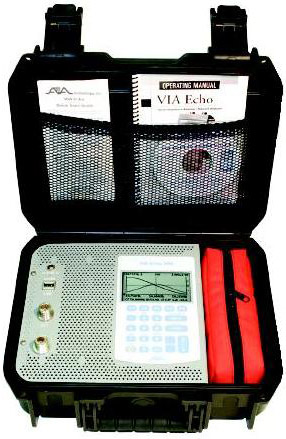

Network Analyzer: VIA Echo MRI

The VIA Echo MRI is an Ultra Low-Magnetic Network Analyzer that accurately measures impedances from 2 to 2000 Ohms, resistance, phase angle, X, Q, return loss, and SWR. The Echo MRI can simultaneously provide graphical display for any two measurement parameters and a digital display of a third parameter. The frequency sweep is plotted in the X axis and independent left and right Y axis scales are user selectable The Echo MRI has the ability to function in close proximity to high magnetic fields making it the ideal test instrument for installing and servicing MRI or NMR systems

View Datasheet
