SiGe RF MMIC 放大器,
ALN 系列低噪声放大器,
APL 锁相环,
RFID
射频模块.

2009 New Product Guide Download PDF

RF MMIC Amplifiers


ASB 自主拥有 SiGe 半导体专利技术。以这些技术为基础,ASB 针对移动通信及电视广播的基站直放站、CATV、CMMB 及 GPS 设备市场,推出了品种齐全的 RFIC 及相关增益、低噪声放大、中功率及锁相环路模块,为这些市场的用户提供性能更好、或性能相近而价格更低的选择。


RFIC包括

AST(SiGe pHEMT),ASL(pHEMT 低噪声放大),ASG(SiGe HBT)
ASW(SiGe HBT 宽带内匹配)及 ASX(GaAs HBT中 小功率功放)等五个系列。

增益模块:AGM系列内匹配、陶瓷贴片式封装、一级或两级LNA。
低噪声放大模块:ALN 系列内匹配、陶瓷贴片式封装、一级或两级 LNA。
小功率放大模块:APM 系列内匹配、陶瓷贴片式封装、P1db 为 29dbm,OIP3 为 47dbm,低噪声,高线性。适用于所有标准的 2G、3G 基站及直放站。
锁相环模块:APL 系列陶瓷贴片式封装、含 VCO、锁相 IC 及环路滤波器、可选内置 TVXO及 / 或 ROM(点频)。
2.4GHz ISM波段收发信机:贴片 RF 收发信模块,内含 GFSK 调制解调,可用于 USN、遥测、遥控及 RFID 等 2.4GHz ISM 波段相关应用。









When it comes to radio frequency ICs ranging up to 10 GHz, an SiGe technology is the only solution in competitive wireless markets today. The SiGe technologies and designs have already broken into the frequency domain of a GaAs technology and have become very cost-effective alternate to GaAs. Now, it is confident that retooling wave to SiGe will be a key to the growth and profits of modern semiconductor factories.









ASB's RF power amplifiers are designed for high linearity and low noise applications for modern wireless and wireline telecommunication systems such as mobile infrastructure equipments, CATV, and so on. All products are manufactured using a state-of-the-art SiGe-base bipolar process of the company's own, making them cost-effective RF components to meet fast-growing competitive wireless markets. The amplifiers are delivered with a low cost SOT-89 package completing stringent reliability tests. Now, experience the exceptional performance, reliability, and price from our SiGe process technology.









We offers compact-sized RF mini-modules that are widely applicable as low noise amplifier and general purpose gain block for use in mobile infrastructure equipments such as cellular, GSM, PCS, IMT-2000 and so on. The company's plerowTM-series RF mini-modules are available in surface-mount package and provide exceptionally low noise with outstanding gain and linearity performance. The plerowTM designed with low current consumption less than 1 watt aslo makes telecommunication systems more reliable.









The plerowTM PLL module is a compact-sized and cost-effective product which was designed for use in modern wireless and wireline systems in a wide range of frequency from 50 MHz to 6 GHz. We provide not only the company-standardized PLLs, but also a customized one upon request with a quick turnaround time. ASB’s PLL provides exceptionally low spurious and phase noise performance with fast locking time and low current consumption. All products are available in a surface-mount type package.

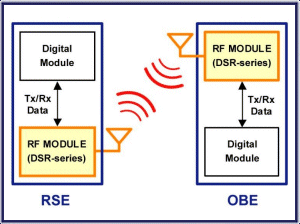

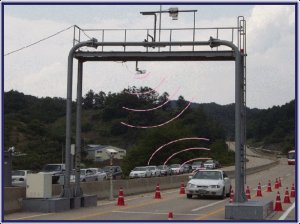

This is a state-of-the-art 5.8 GHz active DSRC RF module to be easily fit to the On-Board Equipment (OBE) and infrastructure Road Side Equipment (RSE) which are applied for the Electronic Toll Collection system (ETC), Traffic Information System (TIS), Bus Information System (BIS), etc.







   Gain Block Amplifiers



Part

Number

Freq. Range

(MHz)

Gain

(dB)

NF

(dB)

P1dB

(dBm)

OIP3

(dBm)

Vs

(V)

Current

(mA)

Package

Style

Data

Sheet

ASL03H

900

19.5

0.9

17.0

30.0

3.7

36

SOT-363

  PDF

2000

14.2

1.0

18.0

32.5

3.7

36

ASL13W



900

19.0

0.9

22.0

35.5

5.0

60

SOT-363

  PDF

2000

13.0

0.9

22.0

38.0

5.0

60

2450

11.5

1.1

22.0

37.5

5.0

60

ASL19W



900

19.0

0.7

22.0

37.5

5.0

73

SOT-89

  PDF

2000

13.0

0.9

22.0

37.5

5.0

73

2700

11.0

1.1

22.0

38.0

5.0

73

ASL19H

900

20.0

1.0

22.0

35.0

5.0

73

SOT-89

  PDF

2000

14.5

1.05

22.0

36.0

5.0

73

3500

9.0

1.8

20.0

35.0

5.0

73

ASL29W

900

19.0

0.9

22.0

37.0

5.0

75

SOT-89

  PDF

2000

13.0

0.9

22.0

39.5

5.0

75

ASL19D

2000

24.5

0.95

19.0

36.0

3.0

90

DFN-6

  PDF

2700

20.0

1.25

19.0

37.0

3.0

90

ASW101

900

18.0

3.8

17.0

30.0

3.3

40

SOT-89

  PDF

2000

11.0

4.0

18.0

31.0

3.3

40

2400

9.5

4.5

18.0

31.0

3.3

40

ASW103

900

17.0

3.7

17.0

30.0

3.3

44

SOT-89

  PDF

2000

11.0

3.9

18.0

31.0

3.3

44

2400

9.0

4.2

19.0

31.0

3.3

44

ASW114

900

20.0

3.3

12.5

24.5

3.2

37

SOT-363

  PDF

2000

17.0

3.3

13.0

26.0

3.2

37

3500

13.5

-

14.0

26.5

3.2

37

5800

10.5

-

12.0

23.0

3.2

37

900

20.5

3.1

14.5

29.5

3.3

53

2000

17.0

3.3

14.5

29.0

3.3

53

3500

14.0

-

14.5

-

3.3

53

ASW204

900

20.0

1.9

21.0

34.5

4.6

75

SOT-89

  PDF

2000

17.6

1.9

19.5

33.5

4.6

75

3500

14.2

-

17.5

30.5

4.6

75

ASW205

900

24.5

3.5

18.5

33.5

4.9

72

SOT-89

  PDF

2000

21.3

3.6

19.0

33.0

4.9

72

2700

18.5

3.9

18.0

31.5

4.9

72

ASW212

900

14.0

5.0

18.0

35.0

5.0

73

SOT-89

  PDF

2000

12.5

5.5

18.0

34.0

5.0

73

3500

11.0

-

17.0

28.0

5.0

73

5800

11.0

-

16.0

26.5

5.0

73

ASW214

900

19.5

5.5

16.0

30.0

5.0

52

SOT-89

  PDF

2000

18.0

5.7

17.0

32.0

5.0

52

3500

15.0

-

14.0

28.0

5.0

52

5800

13.5

-

13.5

24.5

5.0

52

ASW215

900

16.0

3.8

19.0

37.0

5.0

83

SOT-89

  PDF

2000

12.0

4.3

19.0

35.0

5.0

83

3500

10.0

-

16.0

28.0

5.0

83

ASW216

900

14.0

2.2

20.0

37.5

4.5

80

SOT-89

  PDF

2000

11.8

2.4

20.0

38.0

4.5

80

*ASW222

900

29.5

2.3

18.0

30.0

4.5

67

DFN-6

  PDF

2000

26.5

2.5

17.0

28.0

4.5

67

3500

16.5

-

17.0

27.5

4.5

67

ASW301

900

16.5

6.7

22.0

39.0

5.0

75

SOT-89

  PDF

2000

10.0

7.0

22.0

40.5

5.0

75

2400

8.0

7.3

22.5

41.0

5.0

75

ASW311

900

14.3

2.2

21.5

41.0

5.0

120

SOT-89

  PDF

2000

12.1

2.4

21.0

41.0

5.0

120

ASW313

900

16.5

2.3

21.5

42.0

5.0

95

SOT-89

  PDF

1950

14.5

3.2

23.0

41.0

5.0

92

ASW318

900

16.5

2.3

26.0

47.0

8.0

120

SOT-89

  PDF

1950

15.0

3.3

26.0

45.5

8.0

120

ASW335

900

17.5

2.0

22.0

42.0

5.0

100

SOT-89

  PDF

1950

16.3

2.1

21.5

41.5

5.0

100

ASW338

900

17.5

2.0

26.0

44.0

8.0

120

SOT-89

  PDF

1950

16.5

2.2

25.0

43.0

8.0

120

ASW350

100

24.7

8.0

23.5

41.0

5.0

150

SOT-89

  PDF

250

23.0

7.1

23.0

40.0

5.0

150

ASX101

850

21.5

3.2

16.0

27.0

2.7

38

SOT-89

  PDF

1950

15.5

3.2

17.0

29.0

2.7

38

2450

13.0

3.5

17.0

30.0

3.3

40

ASX201

900

19.0

4.0

20.0

34.0

5.0

66

SOT-89

  PDF

2000

16.0

3.3

21.0

34.5

5.0

66

2450

14.0

3.3

22.0

36.0

5.0

66

3500

12.0

3.6

20.0

34.0

5.0

66

ASG305

900

19.5

3.3

21.0

42.0

6.0

65

SOT-89

  PDF

2000

12.5

3.4

20.0

42.0

6.0

65

ASG307

860

18.0

3.1

25.0

40.0

5.0

185

SOT-89

  PDF

2000

11.0

4.1

25.0

40.0

5.0

185

ASG330

1950

11.0

3.8

20.0

43.0

5.0

75

SOT-89

  PDF

2140

10.0

4.3

20.0

43.0

5.0

75

* Engineering samples available







 Medium Power Amplifiers







Part

Number

Freq. Range

(MHz)

Gain

(dB)

NF

(dB)

P1dB

(dBm)

OIP3

(dBm)

Vs

(V)

Current

(mA)

Package

Style

Data

Sheet

ASX401

900

19.5

4.5

29.5

47.0

5.0

290

SOT-89

  PDF

2000

13.0

4.2

29.5

46.0

900

19.5

4.5

29.5

44.0

4.8

260

2000

13.0

4.2

28.5

44.0

900

19.0

4.5

28.5

41.0

4.4

190

2000

13.0

4.2

28.5

42.0

ASX415

900

19.5

4.5

29.0

42.0

5.0

155

SOT-89

  PDF

2000

14.0

4.7

27.5

41.0

2600

12.0

3.7

29.0

37.0

2000

13.5

4.2

27.0

40.0

4.75

123

ASX420

900

31.5

6.8

29.5

47.0

5.0

370

SOIC-8

  PDF

2000

21.0

7.0

29.5

46.0

5.0

370

2600

16.5

7.1

30.0

46.0

5.0

370

ASX423

900

32.5

2.4

30.0

45.0

5.0

400

SOIC-8

  PDF

2000

23.5

2.7

29.5

47.0

5.0

400

2700

18.0

3.2

29.5

45.0

5.0

400

ASL425

900

35.5

1.0

29.0

45.0

5.0

350

SOIC-8

  PDF

1950

29.5

1.4

29.5

47.0

5.0

350

2700

18.0

2.1

28.5

46.0

5.0

350

ASX501

900

18.0

4.7

31.5

47.0

5.0

560

SOT-89

  PDF

2000

11.5

4.7

29.0

46.0

5.0

560

ASX520

900

31.0

7.0

33.0

48.0

5.0

650

SOIC-8

  PDF

ASX521

900

28.0

11.0

32.0

48.0

5.0

870

SOIC-8

  PDF

2000

19.0

5.0

31.5

48.0

5.0

870

2450

18.5

5.1

31.5

48.0

5.0

870

ASX601

900

16.0

5.6

32.7

49.0

5.0

850

SOT-89

  PDF

2000

9.5

5.8

31.0

47.0

5.0

850

ASX620

900

29.0

6.7

33.0

48.0

5.0

950

SOIC-8

  PDF

ASX621

900

30.0

11.5

33.0

48.0

5.0

1150

SOIC-8

  PDF

2000

18.0

5.6

32.5

49.0

5.0

1150

2450

13.0

7.0

33.0

48.0

5.0

1150

2700

16.0

5.9

33.0

48.0

5.0

1150







 Low Noise Amplifiers







Part

Number

Freq. Range

(MHz)

Gain

(dB)

NF

(dB)

P1dB

(dBm)

OIP3

(dBm)

Vs

(V)

Current

(mA)

Package

Style

Data

Sheet

*ASL003

170

16.3

1.8

1.5

10.0

2.8

7

SOT-363

  PDF

240

16.1

1.74

1.0

7.0

478

15.5

1.43

0.0

8.5

2.8

7

862

13.8

1.66

1.5

10.0

ASL03H

900

19.5

0.9

17.0

30.0

3.7

36

SOT-363

  PDF

2000

14.2

1.0

18.0

32.5

3.7

36

ASL13W

900

19.0

0.9

22.0

35.5

5.0

60

SOT-363

  PDF

2000

13.0

0.9

22.0

38.0

5.0

60

2450

11.5

1.1

22.0

37.5

5.0

60

ASL19W

850

20.0

0.9

22.0

35.5

5.0

73

SOT-89

  PDF

2000

13.5

0.9

22.0

37.0

5.0

73

2700

11.0

1.1

22.0

38.0

5.0

73

ASL19H

900

20.0

1.0

22.0

35.0

5.0

73

SOT-89

  PDF

2000

14.5

1.05

22.0

36.0

5.0

73

3500

9.0

1.8

20.0

35.0

5.0

73

ASL29W

900

19.0

0.9

22.0

37.0

5.0

75

SOT-89

  PDF

2000

13.0

0.9

22.0

39.5

5.0

75

ASL19D

2000

24.5

0.95

19.0

36.0

3.0

90

DFN-6

  PDF

2700

20.0

1.25

19.0

37.0

3.0

90

ASL226

1575

28.0

1.1

11.0

15.5

3.0

8.5

SOT-363

  PDF

1575

23.5

1.3

8.0

10.0

2.0

4.5

900

34.0

1.3

9.0

18.0

3.0

8.5

1950

25.0

1.3

10.5

16.5

3.0

8.5

3500

14.0

1.5

6.5

12.0

3.0

8.5

ASL563

900

33.0

1.0

11.0

23.0

5.0

50

SOT-363

  PDF

1950

26.0

1.0

15.0

29.0

5.0

50

AST11L

900

18.0

1.2

13.0

24.5

3.0

25

SOT-363

  PDF

2000

13.0

1.3

14.0

27.0

3.0

25

AST163

1575

13.5

1.1

10.0

16.0

3.0

3.7

SOT-363

  PDF

1575

14.0

0.95

10.0

18.0

3.0

6.0



AST20S

900

18.0

0.65

16.5

30.0

5.0

48

SOT-363

  PDF

1950

15.5/13.5

0.7

18.0

34.0

AST30S

900

21

2

22

34.0

5.0

135

DFN-6

  PDF

1950

15.5

1.9

22

37.0

* Engineering samples available







 Wideband MMIC for CATV Amplifiers







Part

Number

Freq. Range

(MHz)

Gain

(dB)

NF

(dB)

P1dB

(dBm)

OIP3

(dBm)

Vs

(V)

Current

(mA)

Package

Style

Data

Sheet

ASL550

50

17.1

2.0

23.0

40.0

8.0

120

SOT-89

  PDF

500

17.0

2.0

25.0

43.0

1000

16.9

2.2

25.0

41.0

5

17.2

3.4

23.0

33.5

8.0

120

50

17.4

2.0

23.0

43.0

200

16.9

2.2

24.5

43.0

50

16.9

1.9

20.0

38.0

5.0

92

500

16.7

2.0

21.0

39.0

1000

16.6

2.2

21.0

36.0



:: Selection Guide   PDF

:: Outline drawing & Recommended Footprint   PDF
:: PCB Footprint(AutoCad File)


ALN0000

  PDF

ALN0000AT&T

  PDF

ALN0000R

  PDF

* ON/OFF switchable for WiBro/WiMax application.
* ALNOOOOT, R : 10 × 10  size 2-stage LNA



□  CATV LNA

Operating Temperature : -40 ~ +100 °C





Part

Number

Frequency

Range

(MHz)

Gain

(dB)

Gain

Flatness

(dB)

In/Out

S11/S22

(dB)

NF

(dB)

P1dB

(dBm)

OIP3

(dBm)

DC Power

(V/mA)(Max)

@ 25°C

Data

Sheet

ALN50-1000AT

50~300

16

±0.1

-15 / -10

2.0

21

39

5 / 90

  PDF

300~600

16

±0.1

-12 / -14

2.1

21

39

600~1000

15.5

±0.2

-11 / -11

2.2

20

36









□  1-Stage LNA

Operating Temperature : -40 ~ +100 °C







Part

Number

Frequency

Range

(MHz)

Gain

(dB)

Gain

Flatness

(dB)

In/Out

S11/S22

(dB)

NF

(dB)

P1dB

(dBm)

OIP3

(dBm)

DC Power

(V/mA)(Max)

@ 25°C

Data

Sheet

ALN0195AT

180~210

21

±0.5

-20 / -15

1.0

18

32

5 / 65

  PDF

ALN0196AT

180~210

23

±0.5

-14 / -14

1.0

18

32

5 / 70

  PDF

ALN0450AT

400~500

20

±0.5

-14 / -14

1.1

17

32

5 / 70

  PDF

ALN0450WT

400~500

19

±0.4

-16 / -14

1.1

22

29

5 / 35

  PDF

ALN0460WT

450~470

22

±0.1

-17 / -14

0.75

21

35

5 / 65

  PDF

ALN0675WT

450~900

17

±1.5

-15 / -13

1.1

21

30

5 / 40

  PDF

ALN0836AT

824~849

21

±0.2

-12 / -10

0.55

15

28

5 / 40

  PDF

ALN0837AT

824~849

21

±0.2

-16 / -9

0.65

15

28

5 / 40

  PDF

ALN0859AT



824~894

19.5

±0.5

-14 / -14

0.75

16

31

5 / 65

  PDF

ALN0859BT



824~894

19

±0.4

-14 / -14

0.8

17

30.5

5 / 60

  PDF

ALN0882AT

873~892

20

±0.2

-18 / -12

0.8

16

32

3.3 / 75

  PDF

ALN0902AT

890~915

22

±0.3

-14 / -14

1.0

17

30

5 / 60

  PDF

ALN0925AT

890~960

20

±0.5

-14 / -14

0.8

17

31

5 / 70

  PDF

ALN0926AT

890~960

18.5

±0.5

-18 / -10

0.60

15

29

5 / 40

  PDF

ALN0925BT

890~960

18

±0.4

-14 / -14

0.8

16.5

30.5

5 / 60

  PDF

ALN1100BT

950~1250

16

±1.2

-18 -10

0.75

15

28

5 / 50

  PDF

ALN1500AT



1400~1600

16.0

±0.5

-18 / -10

0.65

18

33

5 / 70

  PDF

ALN1502AT



1400~1600

15.9

±0.5

-18 / -10

0.65

12

26

5 / 30

  PDF

ALN1747AT



1710~1785

13.0

±0.2

-19 / -19

0.65

18

34

5 / 65

  PDF

ALN1750AT



1700~1800

15.5

±0.3

-19 / -9

0.7

17

33

5 / 65

  PDF

ALN1750BT



1700~1800

15.0

±0.3

-19 / -9

0.8

17

33

5 / 55

  PDF

ALN1765AT



1740~1790

17.5

±0.5

-18 / -10

0.7

18

31

5 / 70

  PDF

ALN1810AT

1750~1870

15.3

±0.4

-19 / -9

0.65

18

34

5 / 65

  PDF

ALN1810BT

1750~1870

14.5

±0.3

-18 / -10

0.8

17

33

5 / 45

  PDF

ALN1811BT

1750~1870

14.5

±0.4

-18 / -10

0.8

17

31

5 / 45

  PDF

ALN1880AT



1850~1910

14.9

±0.2

-19 / -9

0.65

18

34

5 / 65

  PDF

ALN1930AT



1875~1985

14.8

±0.3

-19 / -9

0.65

18

34

5 / 65

  PDF

ALN1950BT



1900~2000

14.2

±0.3

-18 / -9

0.8

17

31

3.5 / 25

  PDF

ALN1951BT



1920~1980

15

±0.3

-18 / -14

0.90

17

31

5 / 50

  PDF

ALN2044AT



1920~2170

14.2

±0.5

-19 / -9

0.65

18.5

34

5 / 50

  PDF

ALN2045AT



1920~2170

14.3

±0.5

-19 / -9

0.65

18

34

5 / 65

  PDF

ALN2046AT



1920~2170

15.2

±0.5

-15 / -10

0.7

18

34

5 / 65

  PDF

ALN2140BT



2110~2170

14.5

±0.3

-18 / -12

0.8

17

32

5 / 35

  PDF

ALN2500AT

2300~2700

12.2

±0.75

-19 / -9

0.75

19

34

5 / 80

  PDF

*ALN2501AT

2300~2700

12.2

±0.75

-19 / -9

0.75

19

34

5 / 80

  PDF

*ALN2502AT

2300~2700

12.2

±0.7

-16 / -9

0.6

17.5

31

5 / 40

  PDF

*ALN2503AT

2300~2700

13.5

±0.7

-11 / -8

0.7

17

32

5 / 40

  PDF

*ALN2504AT

2300~2700

14

±0.6

-12 / -10

0.8

18

32

5 / 60

  PDF

*ALN2505AT

2300~2700

13.5

±0.7

-12 / -10

0.65

18

35

5 / 65

  PDF







□  2-Stage LNA

Operating Temperature : -40 ~ +100 °C





Part

Number

Frequency

Range

(MHz)

Gain

(dB)

Gain

Flatness

(dB)

In/Out

S11/S22

(dB)

NF

(dB)

P1dB

(dBm)

OIP3

(dBm)

DC Power

(V/mA)(Max)

@ 25°C

Data

Sheet

ALN0098

88~108

35

±0.2

-16 / -14

1.3

21

37

5 / 160

  PDF

ALN0207

200~215

35

±0.2

-20 / -20

0.8

21

37

5 / 160

  PDF

ALN0223

215~231

35

±0.2

-20 / -20

0.8

21

37

5 / 160

  PDF

ALN0460

450~470

35

±0.1

-18 / -18

0.75

22

38

5 / 160

  PDF

ALN0810

780~840

38

±0.3

-16 / -16

0.6

18

34

5 / 100

  PDF

ALN0832

830~835

29

±0.1

-15 / -15

0.7

17

32

5 / 130

  PDF

ALN0836

823.5~848.5

29

±0.1

-15 / -15

0.7

17

32

5 / 130

  PDF

ALN0837

828~847

36

±0.2

-18 / -18

0.8

18

30

3.3 / 100

  PDF

ALN0859

824~894

37.5

±0.5

-18 / -14

0.65

17

34

5 / 105

  PDF

* ALN0892T1

824~894

36

±0.5

-18 / -15

0.85

21

37

5 / 100

  PDF

890~960

35

±0.5

-18 / -15

0.85

21

37

5 / 100

* ALN0892R2

824~894

35

±0.5

-18 / -15

0.7

21

38

5 / 110



  PDF



890~960

34.5

±0.5

-18 / -15

0.72

21

38

5 / 110

ALN0905

885~925

29

±0.2

-20 / -20

0.8

22

36

5 / 320

  PDF

ALN0925

890~960

37.5

±0.5

-14 / -14

1.1

19

35

5 / 80

  PDF

ALN1100

950~1250

32

±0.3

-18 / -10

0.75

18

35

5 / 100

  PDF

* ALN1100T2

950~1250

25

±1.0

-18 / -10

0.85

12

18

5 / 20

  PDF

ALN1250

1000~1500

30

±0.5

-16 / -10

0.9

16

32

5 / 80

  PDF

ALN1280



1270~1290

32

±0.2

-18 / -10

0.7

18

38

5 / 100

  PDF

ALN1400



1200~1600

25

±1.0

-18 / -10

0.8

18

29

5 / 50

  PDF

ALN1425



1200~1650

30

±0.3

-18 / -10

1.0

17

34

5 / 80

  PDF

ALN1465



1450~1480

27

±0.2

-18 / -10

0.95

18

33

5 / 85

  PDF

ALN1585



1550~1620

34

±0.4

-18 / -10

0.95

21

34

5 / 100

  PDF

ALN1700



1550~1850

28

±0.5

-14 / -14

0.8

18

37

5 / 100

  PDF

ALN1701



1550~1850

30

±0.5

-20 / -10

0.95

20

36

5 / 80

  PDF

ALN1750

1700~1800

27

±0.5

-18 / -10

0.95

18

33

5 / 80

  PDF

* ALN1800T2

1700~1900

26

±0.8

-14 / -14

0.65

21

34

5 / 100

  PDF

ALN1810

1750~1870

30

±0.5

-14 / -14

0.9

19

37

5 / 80

  PDF

ALN1811



1750~1870

27

±0.5

-18 / -10

0.95

18

33

5 / 80

  PDF

ALN1880



1850~1920

32

±0.3

-18 / -10

0.9

20

34

5 / 100

  PDF

ALN1910

1900~1920

30

±0.2

-14 / -14

0.8

20

38

5 / 80

  PDF

ALN1911

1900~1920

29

±0.1

-17.7 / -18

0.9

23

36

5 / 180

  PDF

ALN1912



1900~1920

27

±0.1

-18 / -10

0.95

18

33

5 / 80

  PDF

ALN1930

1875~1985

27

±0.5

-18 / -10

0.95

18

33

5 / 80

  PDF

ALN1945

1915~1975

27

±0.1

-18 / -10

0.65

23

36

5 / 150

  PDF

*ALN1945T2

1920~1970

32

±0.2

-18 / -10

1.0

17

31

5 / 80

  PDF

ALN1951

1940~1960

27

±0.1

-18 / -10

0.65

20.5

33

5 / 75

  PDF

ALN1952

1940~1960

30

±0.1

-18 / -10

0.9

21

33

5 / 100

  PDF

ALN1953

1940~1960

29

±0.1

-18 / -10

0.65

21

34

5 / 100

  PDF

ALN1960

1940~1980

30

±0.5

-20 / -10

0.95

19

36

5 / 80

  PDF

*ALN1970T2

1960~1980

29

±0.1

-18 / -15

0.65

17

33

5 / 90

  PDF

*ALN1971T2

1960~1980

24

±0.1

-18 / -12

0.65

20

34

5 / 95

  PDF

ALN2017



2010~2025

32.5

±0.1

-18 / -15

0.95

21

34

5 / 95

  PDF

ALN2045



1920~2170

27

±0.5

-18 / -10

0.95

18

35

5 / 80

  PDF

*ALN2045T1

1920~2170

28

±0.7

-18 / -15

1.00

20

35

5 / 95

  PDF

*ALN2045R2

1920~2170

25.5

±0.8

-18 / -10

0.95

20.5

36.5

5 / 110

  PDF

*ALN2046

1920~2170

28

±0.5

-18 / -10

0.95

18

29

5 / 80

  PDF

*ALN2046R2

1920~2170

22

±1.0

-18 / -10

0.95

21

38

5 / 110

  PDF

ALN2047

1920~2170

25

±0.6

-18 / -10

0.9

20

35

5 / 90

  PDF

ALN2250

2200~2300

25

±0.5

-18 / -10

1.0

18

33

5 / 80

  PDF

ALN2251

2000~2500

26

±0.3

-18 / -10

1.0

17

33

5 / 80

  PDF

*ALN2313R2

2300~2326

20

±0.2

-18 / -10

1.1

21

38

5 / 120

  PDF

*ALN2330T2

2300~2360

21

±0.2

-18 / -10

0.7

21

35

5 / 100

  PDF

*ALN2331

2300~2360

25

±0.3

-15 / -12

0.88

20

36

5 / 165

  PDF

ALN2332

2300~2360

25

±0.2

-18 / -10

0.75

21

36

5 / 100

  PDF

ALN2333

2300~2360

24

±0.1

-18 / -10

1.0

20

34

5 / 90

  PDF

ALN2350

2300~2400

30

±0.5

-18 / -10

0.95

20

32

5 / 85

  PDF

ALN2351

2300~2400

35

±0.5

-18 / -10

0.95

21

37

5 / 130

  PDF

ALN2352

2300~2400

35

±0.5

-18 / -10

0.9

21

37

4.5 / 130

  PDF

ALN2376

2363~2390

28

±0.2

-18 / -10

0.8

21

36

5 / 100

  PDF

ALN2400

2300~2500

25

±0.5

-18 / -10

1.1

18

35

5 / 80

  PDF

ALN2401

2300~2500

30

±0.6

-18 / -12

1.0

18

32

3.3 / 80

  PDF

*ALN2450T2

2300~2600

28

±1.0

-18 / -12

1.0

18

34

5 / 90

  PDF

ALN2500

2480~2520

28

±0.5

-17 / -12

1.0

13

29

3.3 / 30

  PDF

**ALN2575T1

2560~2590

24

±0.2

-18 / -10

0.80

15

31

3 / 60

  PDF

**ALN2590T2

2490~2690

23

±0.3

-18 / -15

0.8

15

32

5 / 70

  PDF

*ALN2592

2577.5~2607

25

±0.5

-17 / -11

0.95

20

32.5

5 / 120

  PDF

ALN3300

3050~3500

20

±1.3

-18 / -10

0.95

21

34

5 / 100

  PDF

ALN3687

3680~3695

18

±0.2

-18 / -10

1.0

20

33

5 / 100

  PDF

*ALN3800T2

3400~4200

12

±1.0

-11 / -8

1.5

18

30

5 / 100

  PDF

*ACL4275T2

4200~4350

21

±0.8

-18 / -10

1.25

14

30

5 / 50

  PDF

*ACL4400T2

4300~4500

20

±0.8

-15 / -12

1.5

14

30

5 / 50

  PDF

ALN4500

4000~5000

18

±0.5

-8 / -10

1.85

21

35

5 / 160

  PDF

*ACL5000T2

4900~5100

18.5

±0.8

-15 / -11

1.5

14

30

5 / 50

  PDF

ALN5000

4000~6000

18

±1.2

-9 / -9

2.0

21

35

5 / 160

  PDF

ALN5050

4300~5800

17

±0.5

-9 / -9

2.05

21

35

5 / 160

  PDF

ALN5500

5000~6000

17

±0.4

-9 / -10

2.1

21

35

5 / 160

  PDF







□  High Gain LNA

Operating Temperature : -40 ~ +100 °C





Part

Number

Frequency

Range

(MHz)

Gain

(dB)

Gain

Flatness

(dB)

In/Out

S11/S22

(dB)

NF

(dB)

P1dB

(dBm)

OIP3

(dBm)

DC Power

(V/mA)(Max)

@ 25°C

Data

Sheet

ALN1810M3

1710~1910

36

±0.6

-20 / -20

0.7

28

42

5 / 400

  PDF

ALN2642L

2630~2655

50

±0.5

-14 / -14

1.2

12~17

24~36

5 / 250

  PDF






We offer compact-sized RF mini-modules that are widely applicable as high OIP3 medium power amplifier and general purpose gain block for use in mobile infrastructure equipments such as cellular, GSM, PCS, IMT-2000 and so on. The company's plerowTM  APM series mini-modules are available in surface-mount package and provide exceptionally low current consumption with outstanding gain and linearity performance. The plerowTM APM sereis designed with low current consumption less than 2 watt also makes telecommunication systems more reliable.







:: Selection Guide   PDF

:: PCB Footprint(AutoCad File)


APM 10 x 10

  PDF

APM 13 x 13

  PDF





 plerowTM APM - High OIP3 Medium Power Amplifier Module

.

 Operating Temperature : -40 ~ +100 °C



Part

Number

Frequency

Range

(MHz)

Gain

(dB)

Gain

Flatness

(dB)

In/Out

S11/S22

(dB)

NF

(dB)

P1dB

(dBm)

OIP3

(dBm)

DC Power

(V/mA)

@ 25°C

PKG Size

Data

Sheet

APM0837-P29

824~849

33

±0.3

-15 / -9

6.6

29

47

5 / 370

10x10x3.8

  PDF

APM0882-P29

869~894

32

±0.3

-15 / -9

6.6

29

47

5 / 370

10x10x3.8

  PDF

APM0950-P29

900~1000

31

±1.0

-15 / -9

6.6

29

47

5 / 370

10x10x3.8

  PDF



APM1765-P29

1750~1780

36

±0.3

-18 / -10

1.8

29

47

5 / 460

13x13x3.8

  PDF

APM1855-P29

1840~1870

35

±0.3

-18 / -10

1.8

29

47

5 / 460

13x13x3.8

  PDF

APM1950-P29

1920~1980

34

±0.3

-18 / -10

1.8

29

47

5 / 460

13x13x3.8

  PDF

APM2140-P29



2110~2170

31

±0.4

-18 / -10

2

29

47

5 / 460

13x13x3.8

  PDF

APM2017-P29



2010~2025

33

±0.2

-18 / -10

2

29

47

5 / 460

13x13x3.8

  PDF

APM2350-P29



2300~2400

29

±0.8

-18 / -10

2.1

29

47

5 / 460

13x13x3.8

  PDF

APM2600-P29



2500~2700

28

±0.7

-18 / -12

2.5

29

47

5 / 460

13x13x3.8

  PDF









The plerowTM PLL module is a compact-sized and cost-effective product which was designed for use in modern wireless and wireline systems in a wide range of frequency from 50 MHz to 6 GHz. We provide not only the company-standardized PLLs, but also a customized one upon request with a quick turnaround time. ASB’s PLL provides exceptionally low spurious and phase noise performance with fast locking time and low current consumption. All products are available in a surface-mount type package.



All the PLLs in the table are economical ones without any option. Optional are using a TCXO, and/or a ROM instead for the better phase noise performance inside.





:: Selection Guide   PDF



:: Type & Dimension

Part Number

Type & Size

Pin Description

APL-0000

19 x 19 x 5.8 mm

A Type : Economic, ROM, TCXO, ...  PDF

APLT-0000

14.6 x 14.6 x 3.5 mm

B Type : Economic, ROM, TCXO, ...  PDF





:: Options (ex. APL-0000-T)



T

TCXO Included

R

ROM Included

R/T

ROM + TCXO



APLT







Part

Number

Freq. Range

(MHz)

Output

Level

(dBm)

Supply

Voltage

(V)

Current

(mA)

2nd

Harmonics

(dBm)

Spurious

Level

(dBc)

Phase Noise

(dBc/Hz)

Data

Sheet

Min.

Max.

@10kHz

@100KHz



























APLT0730-T

720

740

4±2

5±0.3

≤ 30

≤ -25

≤ -65

≤ -102

≤ -120

  PDF



APLT0830-R/T

830

4±1

5±0.25

≤ 40

≤ -25

≤ -70

≤ -108

-

  PDF



APLT0845-T

840

850

4±2

5±0.3

≤ 30

≤ -25

≤ -65

≤ -100

≤ -120

  PDF



APLT0909-R/T

909

4±2

5±0.25

≤ 35

≤ -23

≤ -65

≤ -103

≤ -117

  PDF



APLT0915-T

900

930

4±2

5±0.3

≤ 30

≤ -25

≤ -65

≤ -100

≤ -120

  PDF



APLT1000-T

995

1005

4±2

5±0.3

≤ 30

≤ -25

≤ -65

≤ -100

≤ -120

  PDF



APLT1015-R/T

1015

4±1

5±0.25

≤ 40

≤ -25

≤ -70

≤ -108

-

  PDF



APLT1100-T

1090

1110

4±2

5±0.3

≤ 30

≤ -25

≤ -65

≤ -100

≤ -120

  PDF



APLT1750-R/T

1750

3±2

5±0.3

≤ 30

≤ -25

≤ -65

≤ -100

≤ -120

  PDF



APLT1870.5-R/T

1870.5

3±2

5±0.3

≤ 30

≤ -25

≤ -65

≤ -100

≤ -120

  PDF



APLT1945-R/T

1945

3±2

5±0.3

≤ 30

≤ -25

≤ -65

≤ -100

≤ -120

  PDF



APLT2039.9-R/T

2039.9

5±2

5±0.3

≤ 30

≤ -25

≤ -65

≤ -101

≤ -120

  PDF



APLT2040-R/T

2040

3±2

5±0.3

≤ 30

≤ -25

≤ -65

≤ -101

≤ -120

  PDF



APLT2100-R/T

2100

3±2

5±0.3

≤ 30

≤ -25

≤ -65

≤ -100

≤ -120

  PDF



APLT2150-R/T

2150

3±2

5±0.3

≤ 30

≤ -25

≤ -65

≤ -100

≤ -120

  PDF



APL5797.5-T

5797.5

1±2

5±0.25

≤ 45

≤ -10

≤ -50

≤ -80

≤ -95

  PDF





























This is a state-of-the-art 5.8 GHz active DSRC RF module to be easily fit to the On-Board Equipment (OBE) and infrastructure Road Side Equipment (RSE) which are applied for the Electronic Toll Collection system (ETC), Traffic Information System (TIS), Bus Information System (BIS), etc.







:: Features

      High sensitivity

      ASK modulation

      TDD communication

      Terminal velocity, tested @ 180 km/h

      FZC2-type 11-pin digital interface

      45W x 39L x 9H mm

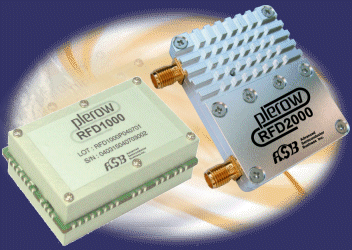

We provide an RF module for UHF RFID reader system. ASB’s latest RFD-series is a state-of-the-art 900 MHz RF transceiver and enables ease of integration with a digital part of reader manufacturer. The company’s RF design expertise and RFID chips such as power amplifier and PLLs as a core component make it compact in size, reliable in performance, and competitive in price. The RFD-series is suited for a fixed or portable RFID reader system.






 900 MHz RFD-Series RF Module



RFD-1000



RFD-2000

Frequency Range(MHz)

900 ~ 930

Output Power Level(dBm)

29



31

Power Level Control(dB)

20



20

Output Impedance(ohm)

50



50

Supply Voltage / Current(V/mA)

5 / 800



5 / 1200

Size (mm,WxLxH)

51.2 x 38.8 x 9.7



51.2 x 38.8 x 9.7

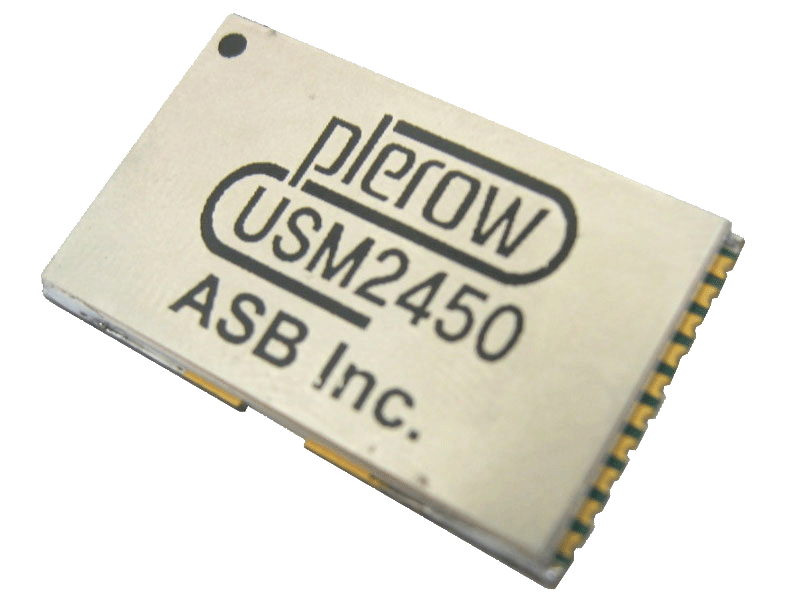

The PlerowTM USM Module is a compactly designed surface-mount RF transceiver module for use in a ZigBeeTM-based Ubiquitous Sensor Network (USN) which has the variety of applications such as home/building automation, security, remote wireless monitoring, and so on. The surface-mount module package including the completed RF matching circuit and the ZigBeeTM transceiver is convenient to be mounted onto the digital control system board in production.









□  USM







Part

Number

Frequency

Range

(MHz)

Supply Voltage(Dual)

(V)

Line of Sight

Distance

(meters)

Size

(mm)

USM2450

2400~2483.5

3 ~ 3.3

& 1.8 ~ 2

200 ~ 250

30(W)×18.4(L)×2.9(H)

USM2450L

2400~2483.5

3 ~ 3.3

& 1.8 ~ 2

350 ~ 400

32.5(W)×18.4(L)×2.9(H)

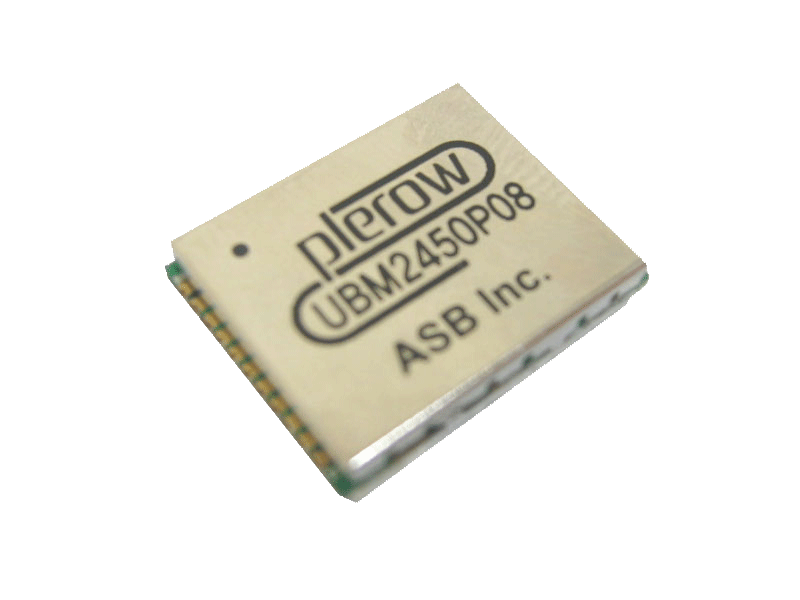

The PlerowTM UBM Module is a compactly designed surface-mount RF transceiver module for the world wide 2.4 ~ 2.5 GHz ISM Band Ubiquitous Sensor Network (USN) which has the variety of applications such as home/building automation, security, remote wireless monitoring, and so on. The RF Module consists of a 2.4 GHz GFSK transceiver with an external power amplifier. It's very easy to apply to the wireless remote control system.







□  UBM







Part

Number

Frequency

Range

(MHz)

Supply Voltage

(V)

Line of Sight

Distance

(meters)

Size

(mm)

UBM2450P08

2400 ~ 2500

3 ~ 3.6

100 ~ 150

17.5(W)×13.5(L)×3(H)

UBM2450M

2400 ~ 2500

3 ~ 3.6

100 ~ 150

42.5(W)×14.8(L)×8.75(H)

UBM2450MC

2400 ~ 2500

3 ~ 3.6

100 ~ 150

36.6(W)×14.8(L)×8.75(H)

UBM2450S

2400 ~ 2500

3 ~ 3.6

50 ~ 100

31.6(W)×14.8(L)×8.75(H)

UBM2450SC

2400 ~ 2500

3 ~ 3.6

50 ~ 100

25(W)×14.8(L)×8.75(H)









更多产品请看本公司产品专用销售网站:欢迎来电查询购买商运达产品或索取免费详细资料、设计指南和光盘 ;产品凡多,未能尽录,欢迎来电查询。

商运达射频微波光电产品网:HTTP://www.rfoe.net/  商运达传感器专家仪器仪表世界网:http://www.sensor-ic.com/

商运达智能工控公共安全网:http://www.pc-ps.net/         商运达电子元器件网:http://www.sunstare.com/

商运达军工产品网:hrrp://www.Junpinic.com/      商运达单片机专用电路网://www.icasic.com/

商运达实业科技产品网://www.sunstars.cn/   射频微波光电元器件销售热线:

    地址:深圳市福田区福华路福庆街鸿图大厦1602

    电话:0755-83396822 83397033

    传真:0755-83376182  013823648918  MSN: SUNS8888@hotmail.com

    邮编:518033   E-mail:szss20@163.com     QQ: 195847376

    深圳赛格展销部:深圳华强北路赛格电子市场2583号 电话:0755-83665529   13823648918

    技术支持: 0755-83394033 13501568376

    北京分公司:北京海淀区知春路132号中发电子大厦3097  TEL4006579498  18927445855  13823791822  FAX010-62543996

    上海分公司:上海市北京东路668号上海賽格电子市场D125  TEL4006571586  56703037  13823676822  FAX021-56703037

    西安分公司:西安高新开发区20(中国电子科技集团导航技术研究所西安劳动南路88号电子商城二楼D23

            TEL4006572198  13072977981  FAX:029-88789382
