Order No.

Description

Transient recorder modules:

Transient recorder, 16 Bit-20 Ms/s A/D and 250 MHz photon counting acquisition, up to 3278 µs signal length. (Available from December 2010)

TR 40-12bit

Transient recorder, 12 bit-40 MHz A/D and 250 MHz photon counting acquisition, up to 0.4 ms signal length.

TR 20-12bit

Transient recorder, 12 bit-20 MHz A/D and 250 MHz photon counting acquisition, up to 0.8 ms signal length.

TR 20-12bit-AP

Transient recorder with 2 separate inputs for 12 bit-20 MHz A/D and 250 MHz photon counting acquisition, allows simultaneous use of 2 detectors.

PR 20-160-P

Photon Counting system, 250 MHz max. photon count rate, signal trace: 819 μs - 122km, two channels fit into one cassette.

PR10-160-P

Photon Counting system, 250 MHz max. photon count rate, signal trace: 1 838 μs - 244km, two channels fit into one cassette.

Options and Accessories:

Trig-Las

Optical trigger module for passive Q-switched laser

Cab-2

Data cable transient rack to interface card, shielded connectors with brackets, length 2 m.

Rack and power supplies:

Rack-1

Housing and power supply for single transient recorder. +5.4 V, -5 V, linear power supplies, data interface, AC 230 V-50 Hz / 110V-60 Hz input.

Rack-2

Housing and power supply for 2 transient recorders. AC 230 V-50 Hz / 110V-60 Hz input.

Rack-6

Housing and power supply for up to 6 transient recorders. AC 230 V-50 Hz / 110V-60 Hz input.

PMT-Rack3

Rack for up to 3 pmt modules

PMT-Rack8

Rack for up to 8 pmt modules

Ethernet Remote Control

Ethernet-IO

Ethermet interface module option for transient recorder rack. Control and readout of up to 16 transient recorders

PM-Remote-8

Ethernet interface for remote control of up to 8 photomultipliers. Remote high voltage setting and high voltage monitor. incl. LabView routines. Mounted in 3 HU cassette.

PM-Remote-4

Ethernet interface for remote control of up to 4 photomultipliers. Remote high voltage setting and high voltage monitor. incl. LabView routines. Mounted in 3 HU cassette.

APD-Remote-4

Ethernet interface for remote control of up to 4 APD modules. Remote high voltage setting and TEC on/off control. incl. LabView routines. Mounted in 3 HU cassette.

Trigger generator

Ethernet interface for active laser flashlamp, Q-switch, Gating and transient recorder control. Variable repetition rate and pretrigger delay. Incl. LabView routines. Mounted in 3 HU cassette.

Laser Monitor

Ethernet laser monitor. Continous acquisition of laser pulse energy measured by laser power meter (not. incl.) or photodiode (included).

Detectors:

Photomultiplier modules based on Hamamatsu mini PMT's, HV supply, stabilized dynodes, overcurrent protection, cables.

PM-HV-06

160-650nm Bialkali

PM-HV-03

185-650nm Bialkali

PM-HV-02

300-880nm Multialkali

PM-HV-20

300-900nm Multialkali

PM-HV-R9880-110

230-700nm Super Bialkali

PM-HV-R9880-210

230-700nm Ultra Bialkali

PM-HV-R9880-20

230-920nm Multialkali

gating

optional gating circuit for the PMT modules shown above. The gated PMT version can only be used in gated mode, max. gate ON time = 1ms

Boresite

4-quadrant boresite alignment system, detector, photon counter, Ethernet interface

SP32-xx

32-channel Multi-Anode PMT single photon counting system, high voltage supply, Ethernet interface, max. count rate 100MHz

xx = 03

Bialkali photocathode 185-650nm

xx = 20

Multialkali photocathode 300-880nm

xx = 200

Ultra Bialkali (UBA) photocathode 300-650nm

Sp32-Power

External Power for Multispectral Lidar detector

Fiber

Fiber Bundel for Multispectral Lidar detector

NIR (1064nm) enhanced Si-APDs for analog detection:

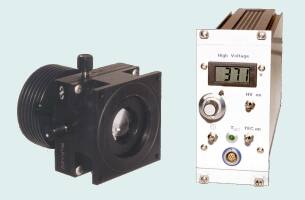

APD-0.8

Silicon APD detector module detector size 0.8 mm (dia.), responsitivity at 1060 nm typ. 34 A/W, peltier cooled, integrated preamplifier, 50 Ω output, integrated temperature control, HV supply (0...400V) and power supply.

APD-1.0

Silicon APD detector module detector size 1.0 mm (dia.), features as shown above.

APD-3.0

Silicon APD detector module detector size 3.0 mm (dia.), features as shown above.

Standard Si sensitivity APDs for analog or p.c. detection:

APD-C30902

Silicon APD detector module detector size 0.5 mm (dia.), not infrared enhanced, lower dark count rate

InGaAs APD module for eyesafe lidar

APD-InGaAs

InGaAs APD detector module, 0.2mm dia., sens. 1100-1700 nm, air cooled, incl. AC/DC power supply, HV supply, focussing and alignment optics

Polarization measurements:

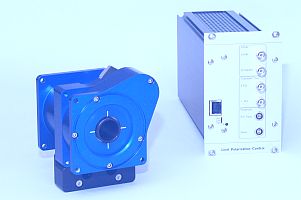

Polarotor

Rotating polarizing beamsplitter for alternating measurements of parallel and perpendicular polarized signals up to 50Hz laser rep. rate. Ethernet interface.

Software:

Basic

Drivers for LabView routines (source code) to perform data acquisitions, display signals, combine analog and photon counting signals, analyze photon counting pulse height distribution. Additional low level C-routines (NI-DAQ based) for integration into existing software.

File

Customized file format and naming convention according to local standards.

Develop

LabView drivers for off-line software development, simulating hardware behaviour of transient recorders and lidar systems.
