  1. 型号:  T435 ‘L’

    品牌:  英国 Sherborne

    产品手册:  下载


    1. 简介
    2. 尺寸
    3. 应用
    •
    •
    •
    •

    T435 'L'

    The T435 'L' series is a family of single axis, high-precision, closed loop, gravity referenced servo inclinometers, ideal for use within a variety of application environments, and where space is at a premium. Available in ranges from ±3° to ±90° with a form factor measuring only 61mm (2.41 inches) high and a diameter measuring less than 37mm (1.46 inches). The T435 'L' has a high-level 4-20mA signal, proportional to the sine of the angle of tilt. Units are fully self-contained, and able to connect to a DC power source and readout or control device, to form a complete operating system. Units are extremely rugged, and can withstand a 1500g-shock event. Solder pin terminations are standard. The 4-20mA output of the T435 'L' series is specifically designed for electrically noisy environments, or where inclinometer output signals must travel over a long distance. T435 'L' series inclinometers operate on a single 24Vdc supply and the output series load resistance can be as high as 400Ω. Sherborne Sensors T435 'L' series inclinometers have a long and successful market history under the Schaevitz® brand.




    特点

    * Available ranges from ±3° to ±90°
    * Resolution to 0.2arc second (0.00006°)
    * High level 4 to 20mA output proportional to sine of the angle of tilt
    * Electrical terminations via solder pins
    * Fully self-contained and able to connect to a DC power source and readout or control device, to form a complete tilt measurement system
    * Environmentally sealed to IP65
    * Continuous operation in temperatures of -18°C to +70°C
    * Rugged, 1500g shock survivability
    * Optional power supplies and display indicators
    * Custom design and manufacturing capabilities are available to meet customers specific application requirements

    »Bore hole mapping, dam and rock shifts and other geophysical, seismic & civil engineering studies
    »Downhole logging
    »Any precision measurement application where space is at a premium
  2. 型号:  T935

    品牌:  英国 Sherborne

    产品手册:  下载


    1. 简介
    2. 尺寸
    3. 应用
    •
    •
    •
    •
    •

    T935

    The T935 Series is a range of gravity referenced servo inclinometers that can be used for a wide variety of industrial and military applications where high precision angular measurements are required in rugged and space restrained applications where high levels of vibration and mechanical shock up to 1500g are encountered. Models are available in a variety of ranges from +/-1 degree to +/-90 degrees with low impedance output voltage signals and can be stacked for dual axis operation. Electrical terminations are via solder pins.




    特点

    * ± 1° to ± 90° ranges
    * Extremely rugged, fluid filled, withstands 1500g shock
    * Extended pins with chamfered housing edge for ease of soldering
    * Laser marked part and serial number
    * Stackable for dual axis X and Y measurements

    »Bore Hole Mapping
    »Structural Health Monitoring
    »Continuous Casting Mould Alignment
    »Railway Maintenance Equipment
    »Mobile and Stationary Antenna Aiming
  3. 型号:  WTS Wireless Telemetry Inclinometer

    品牌:  英国 Sherborne

    产品手册:  下载


    1. 简介
    2. 尺寸
    3. 应用
    4. 文档
    •
    •
    •
    •

    WTS Wireless Tilt System

    The WTS Wireless Tilt System is a flexible, all-weather radio telemetry system designed to provide high accuracy remote angle measurement data. The WTS enables surveyors, geotechnical specialists and structural engineers to record and log data remotely without the cost and impracticality of traditional wired methods. The heart of the system is the WTS Wireless Inclinometer; a high-accuracy robust instrument utilising advanced MEMS sensor technology to ensure maximum reliability. A variety of complementary base stations and either PC or handheld data acquisition modules is offered to allow a complete measurement system to be configured to suit any particular application. A wide variety of fixed base stations and hand held readers is available to enable the user to tailor the system to their optimal requirements. Highway agencies, bridge and civil structure owners spend large revenues assessing structural health by visual or other types of consuming inspection methods of bolted and welded joints, together with other vital structural elements. Obtaining multiple readings to monitoring the entire structure can be costly and labour intensive. Using the WTS Wireless Tilt System, a single structure can be fitted with low power WTS Inclinometers at strategic points, thus helping to determine where weak points may be and when maintenance is required. Additionally, the WTS Wireless Tilt System may be used in the verification of design calculations when new structures are manufactured providing valuable data to refine computer models of structural behaviour.




    特点

    * Advanced MEMS inclinometer design for ultra-reliability and performance.
    * Distortion free digital 2-way radio system for data integrity.
    * Very low power consumption for long battery life.
    * Worldwide licence exempt 2.4 GHz radio.
    * Option of hand held remote display or PC interface for data capture.
    * Remote power on/off (sleep/wake).
    * > 100 metre range.
    * Multi-channel operation.

    The WTS enables surveyors, geotechnical specialists and structural engineers to record and log angle data remotely without the cost and impracticality of traditional wired methods.
  4. 型号:  DSIC

    品牌:  英国 Sherborne

    产品手册:  下载


    1. 简介
    2. 应用
    •
    •
    •
    •
    •

    DSIC

    The DSIC Series is a range of single and dual axis gravity referenced digital output servo inclinometers with total error band of less than 0.08 degrees over -20°C to +70°C. They are suitable for use in a wide variety of industrial and military applications where high precision angular measurements are required in rugged and robust applications where high levels of vibration and mechanical shock up to 1250g may be encountered. Models are available in a variety of angular ranges from +/-5° to +/-60° with RS485 ASCII outputs and electrical terminations are via a connector.




    特点

    * Resolution 0.001°
    * Total accuracy < 0.08° over -20°C to +70°C
    * Mechanical shock 1,000g 0.5ms half sine
    * Industry-standard RS485 output
    * 19-bit analog to digital conversion
    * 9 to 18 or 18 to 36 VDC unregulated supply options
    * Closed loop servo inclinometer sensing element
    * Dynamic filtering, allowing fast response with high vibration rejection
    * Built-in temperature sensing and active compensation
    * User-configurable output bandwidth
    * Wide range of bus speeds supported
    * Non-volatile configuration memory

    »Ordnance Aiming Systems
    »Rail track monitoring
    »Optical sighting equipment
    »Seismic and civil engineering analysis
    »Precision platform level control
  5. 型号:  Accustar

    品牌:  英国 Sherborne

    产品手册:  下载


    1. 简介
    2. 尺寸
    3. 应用
    •
    •
    •
    •

    AccuStar

    The AccuStar®IP-66 is designed for rugged industrial and outdoor applications. The die-cast, powder coated aluminium housing is suitable for the most hostile environments. Multiple input / output configurations provide for ease of implementation into your application. When utilising the 0.5 to 4.5VDC output, the AccuStar® IP-66 may be operated on a standard automotive 12VDC electrical supply. The watertight enclosure is suitable for use in tower crane and marine applications, under all weather conditions. The 4 to 20 mA current output signal is ideal for machine control applications requiring long cable runs and provides for excellent noise immunity. An 18 to 30VDC power supply is required for the 4 to 20 mA current signal output. EMI and RFI components have been incorporated in to the circuit design to provide noise immunity under the most severe conditions. The AccuStar® IP-66 may be calibrated for full-scale output for ranges from +/- 3º to +/- 45º.




    特点

    * Rugged, Die-Cast Aluminium Housing
    * Dust and Water Tight to IP66
    * Ranges from +/- 3º to +/- 45º
    * 4-Wire 0.5 to 4.5VDC Voltage Output
    * 2-Wire Loop Powered Current Output
    * 2-Meter Cable Connection

    »Tower Crane Safety Systems
    »RV Levelling Systems
    »Machine Tool Angle Positioning
    »Trailer Levelling
    »Barge Levelling and Load Distribution
    »Water and Oil Well Drilling Rigs
    »Mining Equipment
  6. 型号:  AngleStar

    品牌:  英国 Sherborne

    产品手册:  下载


    1. 简介
    2. 尺寸
    3. 应用
    •
    •
    •
    •

    AngleStar

    The AngleStar® Electronic Protractor System (APS) is a ready to use, stand alone system for angle measurements. The system incorporates the Accustar® Electronic Clinometer, a digital display, and a connecting cable with a standard length of 1.2m. Longer cable lengths of up to 60m long are available on special order. The system is powered by a single 9 volt battery needing no external power source.

    The display can be mounted at up to 60m from the sensor and there are three systems to choose from: ±20°, ±45° and 0° to +90° with angular resolutions of 0.01° to 0.10° dependent upon the angular range selected.




    特点

    * Three-part system - sensor, LCD battery powered display and cable
    * Remote sensing - 60m for display
    * Ranges: ±20°, ±45° and 0° to +90°

    »Platform levelling
    »Antenna positioning
    »Mining equipment
    »Machine tooling
  7. 型号:  AngleStar

    品牌:  英国 Sherborne

    产品手册:  下载


    1. 简介
    2. 尺寸
    3. 应用
    •
    •
    •
    •

    AngleStar

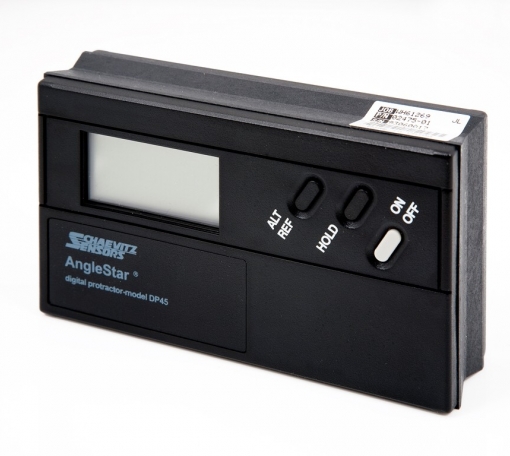

    The AngleStar®Digital Protractor Model DP-45 provides an instant digital display of level, angle and tilt. The DP-45 consists of a rugged electronic sensor and liquid crystal display in an easy-to-use, hand held battery powered package. Features include alternate reference and display hold. The digital display eliminates the need to interpret a bubble or vernier scale.




    特点

    * Reads in degrees
    * Alternate reference (floating zero)
    * Display hold
    * High impact plastic carrying case

    »Drive shaft maintenance
    »Antenna positioning
    »Race car setup
    »Machine tool alignment
  8. 型号:  DQG

    品牌:  英国 Sherborne

    产品手册:  下载


    1. 简介
    2. 尺寸
    3. 应用
    •
    •
    •
    •

    DQG

    The DQG Series is a small, cost-effective, dual axis inclinometer designed for horizontal mounting. A microprocessor controls the inclinometer enabling a linearised and temperature corrected angle output signal. The unit has a metal housing and can be operated from an unregulated voltage source of between 8 and 30 volts dc.




    特点

    * Robust IP66 metal housing
    * Integrated cable
    * Linear analog voltage output signal
    * Temperature compensated
    * Small size
    * Fast response time

    »Alignment and level control
    »Mobile and stationary cranes
    »Man lifters
    »Forklift trucks
    »Crop harvesters
    »Vehicle applications
  9. 型号:  Accustar

    品牌:  英国 Sherborne

    产品手册:  下载


    1. 简介
    2. 尺寸
    3. 应用
    •
    •
    •
    •

    Accustar

    The Accustar®Electronic Clinometer is an extremely accurate angle measurement device. This compact and rugged sensor is ideal where space is critical and environmental conditions are serious design concerns. The heart of the system is a patented, capacitance based sensor without any moving parts. When rotated about its sensitive axis, this unique sensor provides a linear variation in capacitance, which is electronically converted into angular data. The sensor and low-power CMOS electronics are encased in a rugged plastic housing. Designed for easy integration, with a choice of analog, ratiometric, digital or serial models, the clinometer produces an output signal corresponding to direction and magnitude of angular displacement. The Accustar® Electronic Clinometer complies with International EMC and EMI Standards and is CE marked.




    特点

    Ratiometric Output
    * Low power operation
    * 3 wire operation

    Analog Output
    * Internally regulated
    * Bipolar input/output

    Serial Data Output
    * Microcontroller compatible
    * Ideal for noisy environments

    Digital Pulse Width Output
    * Internally regulated
    * Pulse width output



    »Wheel alignment
    »Construction equipment
    »Antenna positioning
    »Robotics
    »Stadium loudspeaker positioning
    »Tilt safety systems
  10. 型号:  LSI

    品牌:  英国 Sherborne

    产品手册:  下载


    1. 简介
    2. 尺寸
    3. 应用
    •
    •
    •
    •

    LSI

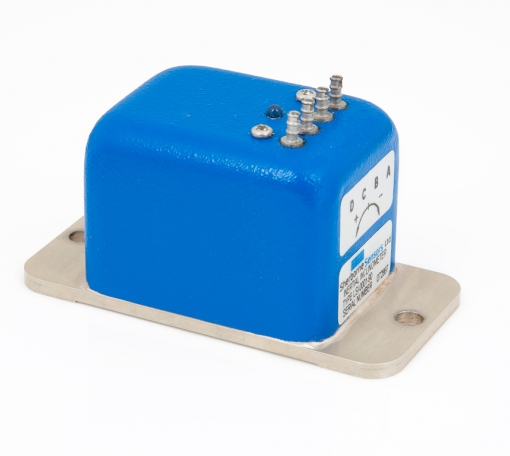

    The LSI Series is a range of gravity referenced servo inclinometers that can be used for a wide variety of industrial and military applications where high precision angular measurements are required. Models are available in a variety of ranges from +/-14.5 degrees to +/-90 degrees with low impedance output voltage signals. Electrical terminations are via solder pins.




    特点

    * Available ranges from ±14.5° to ±90°
    * Resolution to 2 arc second (0.0006°)
    * High level ±5 VDC output proportional to sine of the angle of tilt
    * Electrical terminations via solder pins
    * Fully self-contained and able to connect to a DC power source and readout or control device, to form a complete tilt measurement system
    * Environmentally sealed to IP65
    * Continuous operation in temperatures of -18°C to +70°C
    * Rugged construction with high reliability
    * Optional power supplies and display indicators
    * Custom design and manufacturing capabilities are available to meet customers specific

  1. 型号:  LSW

    品牌:  英国 Sherborne

    产品手册:  下载


    1. 简介
    2. 应用
    •
    •
    •
    •

    LSW

    The LSW Series is a range of weatherproof gravity referenced servo inclinometers that can be used for a wide variety of industrial and military applications where high precision angular measurements are required in rugged applications where high levels of vibration and mechanical shock up to 1500g are encountered and environmental sealing to IP67 is required. Models are available in a variety of ranges from +/-3 degree to +/-90 degrees with low impedance output voltage signals. Electrical terminations are via a weatherproof connector system.




    特点

    * Available ranges from ±3° to ±90°
    * Resolution to 0.2arc second (0.00006°)
    * High level ±5 VDC output proportional to sine of the angle of tilt
    * Electrical terminations via six-way connector (LSOC) or solder pins (LSOP)
    * Fully self-contained and able to connect to a DC power source and readout or control device, to form a complete tilt measurement system
    * Environmentally sealed to IP65
    * Continuous operation in temperatures of -18°C to +70°C
    * Rugged, 1500g shock survivability
    * Optional mating connectors, power supplies and display indicators
    * Custom design and manufacturing capabilities are available to meet customers specific application requirements
    * Weatherproof to IP67 – stainless steel construction
    * Waterproof moulded cable system – field replaceable
    * Fully self-contained - connect to a DC power source and a readout or control device for a complete operating system
    * High-level DC output signal proportional to sine of the angle of tilt
    * ±3° to ±90° ranges available
    * Extremely rugged, withstands 1500g shock

    »Bore-hole mapping, dam and rock shifts and other geophysical and seismic studies
    »Offshore
    »Military
    »Civil Engineering
  2. 型号:  T820

    品牌:  英国 Sherborne

    产品手册:  下载


    1. 简介
    2. 尺寸
    3. 应用
    •
    •
    •
    •
    •

    T820

    The T820 Series is a range of dual axis gravity referenced inclinometers that can be used for a wide variety of industrial and military applications where high precision angular measurements are required in rugged applications including down bore hole and where space is limited. Models are available in a variety of ranges from +/-14.5° to +/-60° with low impedance output voltage signals. Electrical terminations are via a connector on the T823 or solder pins on the T825 variant. The diameter of just 23mm is ideal for borehole applications or other space restricted areas. The unit can withstand high levels of mechanical shock without any degradation in specification and is sealed against the ingress of contaminants.




    特点

    * 23mm diameter cylindrical housing with precision angular alignment feature
    * Ranges ±14.5° to ±60°
    * Input voltage options: bi-polar : ±12 to ±18VDC or single ended : 9 to 18VDC
    * Output: ±5VDC (bi-polar input) or 0.5 to 4.5VDC (single ended input)
    * Solder pin terminations or connector within diameter of housing
    * Stainless Steel Construction, reduces angular errors due to flexibility of sensor
    * Sealing to IP67

    »Bore-hole logging
    »Seismic studies
    »Angular measurements in confined areas
  3. 型号:  T700

    品牌:  英国 Sherborne

    产品手册:  下载


    1. 简介
    2. 尺寸
    3. 应用
    •
    •
    •
    •

    T700

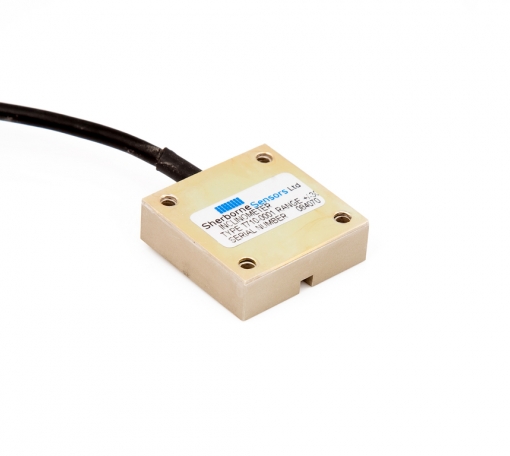

    The T700 range of Solid State Inclinometers measure inclination proportional to sine of angle in either single or dual axes versions. The inclinometer utilises advanced MEMS technology and has positive mechanical stops conferring excellent shock resistance.
    The -0101 versions incorporate a temperature sensor enabling each sensor to be individually characterised over its operational temperature range. A data sheet containing the characteristic output equation is supplied with each sensor enabling errors due to zero offset, sensitivity error, linearity, thermal zero shift and thermal sensitivity shift to be minimised. By entering the equation coefficients into the host operating software, cost-effective high accuracy acceleration sensing may be achieved. Designed for operation from an unregulated DC power source, the T700 is packaged in a robust aluminium alloy housing with an integral shielded cable connection; the shield is connected to the sensor case.




    特点

    * Available ranges from ±30° to ±90°
    * Resolution to 2 arc second (0.0006°)
    * High level Voltage output proportional to sine of the angle of tilt
    * Electrical terminations via 300mm cable
    * Fully self-contained and able to connect to a DC power source and readout or control device, to form a complete tilt measurement system
    * Environmentally sealed to IP65
    * Continuous operation in temperatures of -18°C to +70°C
    * Rugged construction with high reliability
    * Optional power supplies and display indicators
    * Custom design and manufacturing capabilities are available to meet customers specific application requirements

    »Data acquisition systems
    »Vehicle dynamics
    »Roadbed analysis
    »General applications requiring precision tilt measurement in confined spaces
  4. 型号:  T640

    品牌:  英国 Sherborne

    产品手册:  下载


    1. 简介
    2. 尺寸
    3. 应用
    •
    •
    •
    •

    T640

    The T640 Series is a range of gravity referenced inclinometers that can be used for a wide variety of industrial and military applications where precision angular measurements are required in rugged applications. Models are available in a variety of ranges from +/-30° to +/-90° with low impedance filtered and unfiltered output voltage signals. Electrical terminations are via a 6-way connector on the T643 or solder pins on the T645 variant.




    特点

    * Ranges ±30º, ±60º and ±90º
    * Essentially zero temperature coefficent of damping ratio
    * Filtered and unfiltered outputs simultaneously available
    * Integral temperature compensation
    * DC input - DC output
    * Signal ground isolated from power ground

    »Data acquisition systems
    »Roadbed analysis
    »Platform levelling
    »Structural monitoring
    »Pipeline levelling
    »Ship ballast transfer systems
  5. 型号:  T233/T235

    品牌:  英国 Sherborne

    产品手册:  下载


    1. 简介
    2. 尺寸
    3. 应用
    •
    •
    •
    •
    •

    T233/T235

    The T233/5 Series is a range of dual axis gravity referenced servo inclinometers that can be used for a wide variety of industrial and military applications where high precision angular measurements are required in rugged and robust applications where high levels of vibration and mechanical shock up to 1500g are encountered. Models are available in a variety of ranges from +/-1 degree to +/-90 degrees with low impedance output voltage signals and are precisely set up for dual axis operation. Electrical terminations are via a connector on the T233 or solder pins on the T235 variant.




    特点

    * Available ranges from ±1° to ±90°
    * Resolution to 0.1arc second (0.00003°)
    * High level ±5 VDC output proportional to sine of the angle of tilt
    * Electrical terminations via six-way connector (T233) or solder pins (T235)
    * Fully self-contained and able to connect to a DC power source and readout or control device, to form a complete tilt measurement system
    * Environmentally sealed to IP65
    * Continuous operation in temperatures of -18°C to +70°C
    * Rugged, 1250g shock survivability
    * Optional mating connectors, power supplies and display indicators
    * Custom design and manufacturing capabilities are available to meet customers specific application requirements

    »Level control of machines and structures
    »Safety control of cranes and lifting equipment
    »Civil engineering studies
    »Geophysical and seismic studies
    »Machinery and structural alignment
    »Pipeline leveling
    »Marine ballast transfer systems
    »Satellite antenna
  6. 型号:  LSOC/P ‘L’

    品牌:  英国 Sherborne

    产品手册:  下载


    1. 简介
    2. 尺寸
    3. 应用
    •
    •
    •
    •
    •

    LSOC/P-L

    The LSOC/P-L Series is a range of gravity referenced servo inclinometer that can be used for a wide variety of industrial and military applications where high precision angular measurements are required in rugged and robust applications where high levels of vibration and mechanical shock up to 1500g are encountered. Models are available in a variety of ranges from +/-1° to +/-90° with 4 to 20mA output. Electrical terminations are via a 6-way connector on the LSOC or solder pins on the LSOP variant.




    特点

    * Available ranges from ±1° to ±90°
    * Resolution to 0.1arc second (0.00003°)
    * High level 4 to 20mA output proportional to sine of the angle of tilt
    * Electrical terminations via six-way connector (LSOC) or solder pins (LSOP)
    * Fully self-contained and able to connect to a DC power source and readout or control device, to form a complete tilt measurement system
    * Environmentally sealed to IP65
    * Continuous operation in temperatures of -18°C to +70°C
    * Rugged, 1500g shock survivability
    * Optional mating connectors, power supplies and display indicators
    * Custom design and manufacturing capabilities are available to meet customers specific application requirements

    »Bore-hole mapping, dam and rock shifts and other geophysical, seismic and civil engineering studies
    »Ballast transfer systems for offshore barges, ships and other marine applications
    »Level control and calibration systems
    »Pipeline levelling, setting tilt
  7. 型号:  LSOC/P

    品牌:  英国 Sherborne

    产品手册:  下载


    1. 简介
    2. 尺寸
    3. 应用
    •
    •
    •
    •
    •

    LSO

    The LSO is a high precision gravity referenced servo inclinometer that can be used for a wide variety of industrial and military applications. Models are available in a variety of angular ranges each with low impedance output signals. Electrical terminations are via 6-way bayonet lock connector (LSOC) or solder pins (LSOP). It is extremely robust and will withstand shocks in excess of 1500g. The design is well proven with many thousands in use throughout the world in the most demanding of applications.




    特点

    * Fully self-contained - connect to a DC power source and a readout or control device for a complete operating system
    * High-level DC output signal proportional to sine of the angle of tilt
    * ±1° to ±90° ranges available
    * Extremely rugged, withstands 1500g shock





公司是一家致力于惯性定向测姿、卫星导航定位等高新技术领域的新产品推广,销售和技术服务的高科技民营企业。公司主要经营产品有倾角传感器、数显倾角仪、测斜仪、二维罗盘、三维罗盘、MEMS陀螺仪、光纤陀螺仪、加速度计、磁传感器、惯性导航系统(IMU/AHRS/VG)、卫星导航系统(GPS/GLONASS/GALILEO/北斗)、运动捕捉分析系统。能提供定位、导航、测姿、定向全方位各种应用的产品。行业应用:工程机械力矩限制器、吊钩及塔基监测、电力杆塔及浮冰监测、陆机及船载卫星通信天线控制、汽车四轮定位测量、汽车后视镜、太阳能跟踪、桥梁大坝监测、机器人控制、石油测井测斜、生物医学,科研院校,IT电子等各类自动化控制领域。

RS232电子罗盘模块 TTL电子罗盘模块 SPI电子罗盘模块 USB电子罗盘模块
电子指南针传感器 电子指南针模块
  磁敏元件/磁阻传感器



霍尔元件

ATS276,277

A3144

UGN3503





SS400

SS490





检钞、验钞

MRS-F-11

MRS-F-21

MRS-G-06

MRS-H-06

  磁场传感器



集成磁场

GMRB6

GMRC6

ZMY20

AD22151

  磁簧开关(干簧管)



日本ALEPH

HYR1002

HYR1003

HYR1532

HYR1554

HYR1555

HYR2003-1

HYR9001-1


俄罗斯MKA MKA-XXXX MKA-07101 MKA-10109 MKA-14103
MKA-16101 MKA-20101 MKA-50201
日本OKI ORD229 ORD9216 ORD228VL




更多产品请看本公司产品专用销售网站:欢迎索取免费详细资料、设计指南和光盘 ;产品凡多,未能尽录,欢迎来电查询。

中国传感器科技信息网:http://www.sensor-ic.com/SSTKJ工控安防网:http://www.pc-ps.net/

SSTKJ电子 元器件网:http://www.sunstare.com/SSTKJ微波光电产品网:HTTP://www.rfoe.net/

消费电子产品网://www.icasic.com/

科技产品网://www.sunstars.cn/传感器销售热线:

    地址:深圳市福田区福华路福庆街鸿图大厦9732室

    电话:0755-83376489 83376549 83607652 83370250   83370251   83376549

    传真:0755-83376182  (0)13902971329  MSN: xjr5@163.com

    邮编:518033   E-mail:szss20@163.com     QQ: 195847376

    深圳赛格展销部:深圳华强北路赛格电子市场9583号 电话:0755-83665529   13823648918

    技术支持: 0755-83394033 13501568376

    北京分公司:北京海淀区知春路132号中发电子大厦3097TEL 13823791822  FAX010-62543996

    上海分公司:上海市北京东路668号賽格电子市场地下一层D25号 TEL  13823676822  FAX021-56703037

    西安分公司:西安高新开发区20(中国电子科技集团导航技术研究所)     西安劳动南路88号电子商城二楼D23

            TEL  18926764199  FAX:029-77678271
