单输出霍尔开关集成电路

AKM旭化成传感器目资料下载



型号 电源电压(V) 动作点(G) 释放点(G) 回差(G) 电流max(mA) 功能/外型 文档
EW-1011 3.5-18         开关锁存 pdf下载
EW-632 2.2-18 10~60 -60~-10 60 12 开关锁存 pdf下载
EM-6681 -0.1~5 20~40 -32~12 3-15 1   pdf下载
EW-732 2.2-18 30~60 -60~-30 60 12 开关锁存 pdf下载
EW-460 4.5-18 60 5 2 15 常开 pdf下载
EW-512 4.5-18 10~60 -60~-10 20 15 开关锁存 pdf下载
EW-412 4.5-18 10~60 -60~-10 20 15 开关锁存 pdf下载
EW-502 4.5-18 50~200 -200~-50 100 15 开关锁存 pdf下载
EW-402 4.5-18 50~200 -200~-50 100 15 开关锁存 pdf下载
EW-500 4.5-18 50~200 -200~-50 100 15 开关锁存 pdf下载
EW-400 4.5-18 50~200 -200~-50 100 15 开关锁存 pdf下载





霍尔元件 - Hall Element


   AKM霍尔元件现已广泛应用于要求高灵敏度及可靠性的电子机械产品,如CD/DVD中的无电刷电机、DVC/移动电话中的镜片制动器。

   多种产品类型具有以原有化合物半导体技术混合为基础的多样化的磁敏特性,优化了灵敏度及温度系数。该装置适用于该行业标准或原包装生产线,客户可针对其产品设计而选择最佳的解决方案。


Benefits:


  1. Various product line up by
    ·Sensivirty
    ·Temperature Coeffiency
  2. Original Compound Semicondutor
    Technology by own-factory
    ·InSb
    ·InAs
    ·GaAs
  3. Various package line up by
    ·SOP
    ·SIP
    ·SON
    ·DIP
  4. Technical Support based on long
    term market expeience


Produt Tree
霍尔元件系列
Product ID
Technology
Magnetic Sensitivity
Output Voltage Vh
(mV/3V, 50mT)
Temperature Coeffiency
Applications
HG-xxx
GaAs
40
See temp-co profile data by model
CPS
HQ-xxx
InAs
50
DSC image stabilizer
Analog Input device
HZ-xxx
Current Sensor
HW/HS-xxx
InSh
250
(mV/1V, 50mT)
BLDC Motor
Current sensor
  HW/HS series: Ultra-high sensitivity. Best suited to motor drivers.
  HQ series: High sensitivity and low current consumption are achieved simultaneously. Excellent thermal characteristic. Suitable for battery-powered mobile equipment.
  HG Series: Excellent thermal characteristic. Linear output. Best suited to current sensors.
  HZ series: Excellent thermal characteristic. Linear output. Best suited to current sensors. Corresponds to automotive applications.
HG series


GaAs (Gallium Arsenide) is used as the material for the magnetic sensing.
Thermal coefficient for the constant current drive is excellent with -0.06%/°C maximum.

标准型 - Standard type
- Symmetrical type (input resistance and the output resistance are equal).


Model
Input/Output
Resistance
Offset
Voltage
Hall Output Voltage
Rank
PKG
(LxWxH mm)
HG-106C
650 to 850 Ω
-11 to 11
mV/6V
55 to 75
(mV/6V.50mT)
SMT
2.5x1.5x0.6

HG-106C-2U
650 to 850 Ω
-11 to 11
mV/6V
55 to 75
(mV/6V.50mT)
SMT
2.5x1.5x0.6

HG-0111
650 to 850 Ω
-11 to 11
mV/6V
55 to 75
(mV/6V.50mT)
SON
1.6x0.8x0.5

HG-302C
650 to 850 Ω
-11 to 11
mV/6V
55 to 75
(mV/6V.50mT)
SIP
2.35x2.7x0.95
HG-116C
650 to 850 Ω
-7 to 7
mV/5mA
34 to 52
(mV/5V.50mT)

SMT
2.5x1.5x0.6

HG-106A
Input:450 to 750 Ω
Output:1Kt to 2k Ω
-16 to 16
mV/6V
75 to 95
(mV/6V.50mT)
SMT
2.5x1.5x0.6

HG-106R
Input:450 to 750 Ω
Output:1Kt to 2k Ω
-16 to 16
mV/6V
75 to 95
(mV/6V.50mT)
SMT
2.5x1.5x0.6

HG-0112
Input:450 to 750 Ω
Output:1Kt to 2k Ω
-16 to 16
mV/6V
75 to 95
(mV/6V.50mT)
SON
1.6x0.8x0.5

HG-302A
Input:450 to 750 Ω
Output:1Kt to 2k Ω
-16 to 16
mV/6V
75 to 95
(mV/6V.50mT)
SIP
2.35x2.7x0.95
HG-116A
Input:450 to 750 Ω
Output:1Kt to 2k Ω
-8 to 8
mV/5mA
30 to 56
(mV/5V.50mT)
SMT
2.5x1.5x1.6
Note: SMT - Package size includes the leads.

中灵敏度型 - Medium-sensitivity type

The Hall output voltage at the constant current drive is high compared with the standard type because the input resistance is high.


Model
Input/Output
Resistance
Offset
Voltage
Hall Output Voltage
Rank
PKG
(LxWxH mm)
HG-166A
Input:1Kt to 1.5k Ω
Output:1.8Kt to 3k Ω
-8 to 8
mV/6V
78 to 102
(mV/6V.50mT)
SMT
2.5x1.5x0.6

HG-166A-2U
Input:1Kt to 1.5k Ω
Output:1.8Kt to 3k Ω
-8 to 8
mV/6V
78 to 102
(mV/6V.50mT)
SMT
2.5x1.5x0.6

HG-0113
Input:1Kt to 1.5k Ω
Output:1.8Kt to 3k Ω
-8 to 8
mV/6V
78 to 102
(mV/6V.50mT)
SON
1.6x0.8x0.5

HG-362A
Input:1Kt to 1.5k Ω
Output:1.8Kt to 3k Ω
-8 to 8
mV/6V
78 to 102
(mV/6V.50mT)
SIP
2.35x2.7x0.95
Note: SMT - Package size includes the leads.

高灵敏度型 - High-sensitivity type

The Hall output voltage at the constant current drive is high compared with the Medium type because the input resistance is high.


Model
Input/Output
Resistance
Offset
Voltage
Hall Output Voltage
Rank
PKG
(LxWxH mm)
HG-176A
Input:1.6Kt to 2.4k Ω
Output:3.2Kt to 4.8k Ω
-8 to 8
mV/6V
78 to 102
(mV/6V.50mT)
SMT
2.5x1.5x0.6

HG-0114
Input:1.6Kt to 2.4k Ω
Output:3.2Kt to 4.8k Ω
-8 to 8
mV/6V
78 to 102
(mV/6V.50mT)
SMT
1.6x0.8x0.5
Note: SMT - Package size includes the leads.

超高灵敏度型 - Ultra high-sensitivity type

Model
Input/Output
Resistance
Offset
Voltage
Hall Output Voltage
Rank
PKG
(LxWxH mm)
HG-186A
Input:2.2Kt to 3.2k Ω
Output:4.4Kt to 6.4k Ω
-8 to 8
mV/6V
80 to 110
(mV/6V.50mT)
SMT
2.5x1.5x0.6

HG-0115
Input:2.2Kt to 3.2k Ω
Output:4.4Kt to 6.4k Ω
-8 to 8
mV/6V
80 to 110
(mV/6V.50mT)
SMT
1.6x0.8x0.5
Note: SMT - Package size includes the leads.

See Definition of Terms here.
See Reliability Test Terms here.

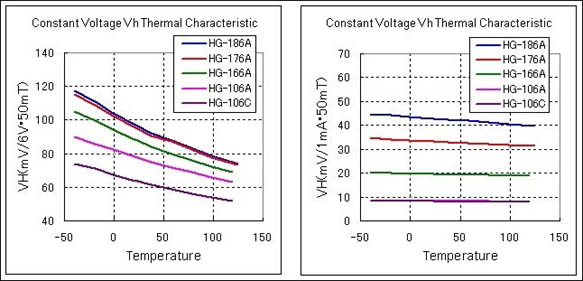

[ Constant Voltage Vh Thermal Characteristic of HG Series 霍尔元件 ] [ Constant Current Vh Thermal Characteristic of HG series 霍尔元件 ]
HQ series


Quantum well ultra-thin film InAs (Indium Arsenide) is used as the material for the magnetic sensing.
High sensitivity and low current consumption are achieved at the same time.
Thermal characteristics are also excellent. High sensitivity is realized by our original ultra-thin film technology.
Package
Name
Package Size
(mm)
Input/Output
Resistance
(Ohms)
Offset
Voltage
(mV/3V)

Hall Output Voltage
(mV/3V.50mT)

L

W

H
SON
HQ-0111
HQ0111
1.6 0.8 0.6 750 to 1150 -6 to 6 90 to 130
HQ-0221
Two elements in one package
Spacing between elements 0.8 mm

HQ0221
2.0 1.25 0.6
HQ-0222
Two elements in one package
Spacing between elements 1.5 mm

2.7 1.25 0.6
HQ-0611
Detecting the magnetic flux density of vertical direction

2.0 0.5 0.85
TSSOP
HQ-8220
Four elements in one package
Spacing between elements 3.1 mm

5.0 6.2 1.0 750 to 1150 -6 to 6%
(B=0/50mT)
90 to 130
HZ series


InAs (indium arsenide) is used as the material for the magnetic sensing. Thermal characteristics of offset voltage are excellent. This can be used in automotive applications.


- The input resistance and output resistance are equal.


Package

Name
Package Size
(mm)
Input/Output
Resistance
(Ohms)
Offset Voltage
(mV/3V)
Hall Output
Voltage
(mV/5mA.50mT)

L

W

H
SMT
HZ-116C

HZ116C
2.5 1.5 0.6 240 to 360 -2.5 to 2.5 23 to 32
SIP HZ-312C

HZ116C
2.35 2.7 0.95
SIP - Package size does not include the leads.
HW/HS series


超敏型 - Hypersensitive type

InSb (Indium Antimony) is used as the material for the magnetic sensing. It is hypersensitive.
We can satisfy different customer requirements with a variety of package line-ups.
Operating temperature range:-40 to 110°C


Model
Input/Output
Resistance
Offset
Voltage
Hall Output Voltage
Rank
PKG
(LxWxH mm)

HW-101A
240 to 550 Ω
-7 to 7
mV/V
C,D,E,F,G
SMT
2.9x2.9x1.1

HW-101A-4T
240 to 550 Ω
-7 to 7
mV/V
C,D,E,F,G
SMT
3.9x2.9x1.1

HW-108A
240 to 550 Ω
-7 to 7
mV/V
C,D,E,F
SMT
2.1x2.1x0.8

HW-105A
250 to 450 Ω
-10 to 10
mV/V
C,D,E
SMT
2.1x2.1x0.55

HW-109A
250 to 450 Ω
-7 to 7
mV/V
C,D,E,F
45 degrees slanting SMT
2.1x2.1x1.45

HW-209A
250 to 450 Ω
-7 to 7
mV/V
C,D,E,F
45 degrees slanting SMT
1.7x2.7x1.7

HW-300B
240 to 550 Ω
-7 to 7
mV/V
B,C,D,E,F
SIP
2.9x2.7x1.65

HW-302B
240 to 550 Ω
-7 to 7
mV/V
A,B,C,D,E
SIP
2.35x2.7x0.95
New
HW-322B
240 to 550 Ω
-7 to 7
mV/V
E,F,G
SIP
2.9x2.4x1.7

HW-300A
240 to 550 Ω
-7 to 7
mV/V
C,D,E,F
DIP
2.9x2.9x2.6

HW-102A
250 to 450 Ω
-7 to 7
mV/V
D,E,F,G
Special
2.9x2.9x1.1
Note: SMT - Package size includes the leads. SIP, DIP - Package size does not include the leads.

Note: For specification of the rank, refer the table of Output Voltage Rank below.



高灵敏度及高线性型 - High-sensitivity and high-linearity type

InSb (Indium Antimony) is used as the material for the magnetism sensing. It is highly sensitive.
Because no magnetic substance is included, the Hall output voltage is proportional to the magnetic flux density.
Operating temperature range: -40 to 110°C


Model
Input/Output
Resistance
Offset
Voltage
Hall Output Voltage
Rank
PKG
(LxWxH mm)
HW-108C
250 to 450 Ω
-7 to 7
mV/V
Q,R
SMT
2.1x2.1x0.8

HW-105C
250 to 450 Ω
-7 to 7
mV/V
Q,R
SMT
2.1x2.1x0.55

HS-0111
260 to 410 Ω
-6 to 6
mV/V
52 to 67
SQN
1.6x0.8x0.5
Note: SMT - Package size includes the leads.

Note: For specification of the rank, refer the table of Output Voltage Rank below.




- Hall Output Voltage Rank

Rank Hall Output Voltage
(mV/1V.50mT)
A 122 to 150
B 144 to 174
C 168 to 204
D 196 to 236
E 228 to 274
F 266 to 320
G 310 to 370
Q 41 to 57
R 51 to 74





Product List   (June 29,2012)
●Samples avaiable
(*)make-to-orde
(**)not recommend for new design
1. Hall Element
▆ HW Series <InSb Family> Sample Supply Unit
  HW-101A
Reel
3000
HW-101A-4T
HW-102A
Reel

6000

HW-104A (**)

Reel
Bulk

2500
500
HW-105A
Reel
5000
HW-105C
HW-108A
Reel
4000
HW-300B
Bulk
500
HW-302B(Sn)(*)
HW-302B(Ag)(*)
HW-322B
▆ HS Series <InSb Family> Sample Supply Unit
  HS-0111
Reel
5000
▆ HZ Series <InAs Family> Sample Supply Unit
  HZ-116C
Reel
2500
HZ-312C
Bulk
500
▆ HQ Series <InAs Family> Sample Supply Unit
  HQ-0111
Reel
5000
HQ-0221
5000
HQ-0222
4000
HQ-0811
5000
HQ-8220
5000
▆ HG Series <GaAs Family> Sample Supply Unit
  HG-106A
Reel
4000
HG-106C
HG-106C-2U
HG-106R
HG-116A
HG-116C
HG-166A
HG-166A-2U
HG-176A
HG-186A
HG-302A
Bulk
500
HG-302C
HG-362A
HG-372A
HG-0111 (**)

Reel

5000
HG-0112 (**)

HG-0113 (**)

HG-0114 (**)
HG-0115 (**)
HG-0711
10000
HG-0712
HG-0713
HG-0714
HG-0715
HG-0811
5000
HG-0812
HG-0813
HG-0814
HG-0815
2. Hall Effect IC
▆ EW Series <InSb Family-Hybrid>
Sample
Supply
Unit
Latch EW-400 EW-402 (*)
Reel
5000
EW-403
EW-410B EW-412B
EW-413 (**)

EW-414
EW-432
EW-500 EW-502 (*)
Bulk
500
EW-510
EW-512
EW-610B EW-612B
Reel
3000
EW-632
EW-710B EW-712B
Bulk
500
EW-732
Switch EW-450
Reel
5000
EW-450B
EW-453 (*)
EW-460
EW-463 (*)
EW-550
Bulk
500
EW-560 (*)
EW-650B EW-652B
Reel
3000
EW-750B EW-752B
Bulk
500
EW-6672
Reel
3000
▆ AK Series <Si Family-Monolithic>
Sample
Supply
Unit
Latch AK8771
Reel
5000
AK8772
Switch AK8788
AK8788A
AK8789
▆ EM Series <Si Family-Monolithic>
Sample
Supply
Unit
Latch EM-0711 (**)
Reel
5000
EM-1011
EM-1711
EM-1712
Switch EM-0791 (**)
EM-1771
EM-1781
EM-1791
EM-6781
Reel
3000
▆ EQ Series <InAs Family-Hybrid> Sample Supply Unit
Latch EZ-410
Reel
5000
Switch EZ-470
3. Linear Hall Effect IC
▆ EQ Series <InAs Family-Hybrid> Sample Supply Unit
Programmable Linear Hall Effect IC EQ-950L
Bulk
500
Linear Hall Effect IC EQ-430L
Reel
5000
EQ-431L
EQ-432L
EQ-433L
EQ-711L
Bulk
500
EQ-730L
EQ-731L
EQ-732L
EQ-733L
4. Semiconductor Magnetoresisitive Element
▆ MS Series <InSb Family > Sample Supply Unit
SON Package
MS-0020
Tray
140
MS-0040
MS-0081
Tray
225
DIP Package
MS-P042
Stick
300
MS-P043
MS-P082
5. Current Sensor
▆ CQ Series <InAs Family-Hybrid> Sample Supply Unit
Current
Sensor
CQ-121E
Tray
400
CQ-131E
CQ-2063
Tray
1000
CQ-2064
CQ-2065
CQ-2092
Tray
1500
CQ-2093
6. Applied product
▆ EM Series <Si Family-Monolithic> Sample Supply Unit
Angle position Sensor EM3242
Reel
5000










更多产品请看本公司产品专用销售网站:

中国传感器科技信息网:http://www.sensor-ic.com/SSTKJ工控安防网:http://www.pc-ps.net/

SSTKJ电子 元器件网:http://www.sunstare.com/SSTKJ微波光电产品网:HTTP://www.rfoe.net/

消费电子产品网://www.icasic.com/

科技产品网://www.sunstars.cn/传感器销售热线:

    地址:深圳市福田区福华路福庆街鸿图大厦9732室

    电话:0755-83376489 83376549 83607652 83370250   83370251   83376549

    传真:0755-83376182  (0)13902971329  MSN: xjr5@163.com

    邮编:518033   E-mail:szss20@163.com     QQ: 195847376

    深圳赛格展销部:深圳华强北路赛格电子市场9583号 电话:0755-83665529   13823648918

    技术支持: 0755-83394033 13501568376

欢迎索取免费详细资料、设计指南和光盘 ;产品凡多,未能尽录,欢迎来电查询。

    北京分公司:北京海淀区知春路132号中发电子大厦3097TEL 13823791822  FAX010-62543996

    上海分公司:上海市北京东路668号賽格电子市场地下一层D25号 TEL  13823676822  FAX021-56703037

    西安分公司:西安高新开发区20(中国电子科技集团导航技术研究所)     西安劳动南路88号电子商城二楼D23

            TEL  18926764199  FAX:029-77678271
