Deep UV LEDs
Diverse LEDs
High Power LEDs
MID-IR LEDs
LED Chips
LED Tester


HIGH POWER LEDS

Single Chip Emitters
Accessories for TO-66
Multi Chip Emitters
Accessories for SMB1N
Optics
Drivers

HIGH POWER SINGLE CHIP LEDS

Emitters
ELJ Series
M3L1 Series
Rectangular
Hexagonal
JET Series
C11A1 Series
EP20 Series

HIGH POWER SINGLE CHIP LEDS, EMITTER PACKAGE

VLxxx-440 Series

High power LED, 1 Watt electrical power

Power chip technology, 1x1 mm² LED chip size

Hermetic ceramic emitter package, UV resistant silicone mold

Part No. Wavelength Output Power Current Voltage φ Package Note Data sheet
VL380-EMITTER 380 nm 200-300 mW 350 mA 3.0-4.0 V 140° Emitter 　
VL390-EMITTER 390 nm 200-300 mW 350 mA 3.0-4.0 V 140° Emitter 　
VL400-EMITTER 400 nm 300-400 mW 350 mA 3.0-4.0 V 140° Emitter 　
VL410-EMITTER 410 nm 300-400 mW 350 mA 3.0-4.0 V 140° Emitter 　
VL440-EMITTER 440 nm 400-500 mW 350 mA 3.0-4.0 V 140° Emitter 　
　

APG2C1 Series

High power LED, 1 Watt electrical power

Power chip technology, 1x1 mm² LED chip size

Base diameter 7.4 mm, height 6.87 mm, lambertian silicone lens

Package color: black or white

Part No. Wavelength Output Power Current Voltage φ Package Note Data sheet
APG2C1-365-E 365 nm 135 mw 350 mA 3.8 V +/-75° Emitter 　
APG2C1-375 375 nm 55 mw 350 mA 3.7 V +/-75° Emitter 　 request
APG2C1-375-E 375 nm 200 mw 350 mA 3.7 V +/-75° Emitter 　
APG2C1-385 385 nm 60 mw 350 mA 3.8 V +/-75° Emitter 　
APG2C1-395 395 nm 95 mw 350 mA 3.7 V +/-75° Emitter 　
APG2C1-405 405 nm 105 mw 350 mA 3.7 V +/-75° Emitter 　 request
APG2C1-410 410 nm 125 mw 350 mA 3.65 V +/-75° Emitter 　
APG2C1-420 420 nm 130 mw 350 mA 3.5 V +/-75° Emitter 　
APG2C1-435 435 nm 380 mw 350 mA 3.5 V +/-75° Emitter 　
APG2C1-470 470 nm 200 mw 350 mA 3.3 V +/-75° Emitter 　
APG2C1-490 490 nm 130 mw 350 mA 3.3 V +/-75° Emitter 　
APG2C1-505 505 nm 130 mW 350 mA 3.5 V +/-75° Emitter 　
APG2C1-515 515 nm 150 mw 350 mA 3.3 V +/-75° Emitter 　
APG2C1-650 650 nm 60 mW 350 mA 2.1 V +/-75° Emitter 　 request
APG2C1-660 660 nm 60 mW 350 mA 2.1 V +/-75° Emitter 　 request
APG2C1-670 670 nm 60 mW 350 mA 2.0 V +/-75° Emitter 　 request
APG2C1-680 680 nm 60 mW 350 mA 2.0 V +/-75° Emitter 　 request
APG2C1-690 690 nm 60 mW 350 mA 1.7 V +/-75° Emitter 　
APG2C1-720 720 nm 100 mW 350 mA 1.9 V +/-75° Emitter 　
APG2C1-740 740 nm 80 mW 350 mA 1.9 V +/-75° Emitter 　
APG2C1-760 760 nm 70 mW 350 mA 1.7 V +/-75° Emitter 　
APG2C1-780 780 nm 70 mW 350 mA 1.7 V +/-75° Emitter 　
APG2C1-810 810 nm 90 mW 350 mA 1.75 V +/-75° Emitter 　
APG2C1-830 830 nm 70 mW 350 mA 1.5 V +/-75° Emitter 　
APG2C1-850 850 nm 90 mW 350 mA 1.5 V +/-75° Emitter 　
APG2C1-880 880 nm 90 mW 350 mA 1.5 V +/-75° Emitter 　
APG2C1-905 905 nm 70 mW 350 mA 1.3 V +/-75° Emitter 　
APG2C1-920 920 nm 80 mW 350 mA 1.3 V +/-75° Emitter 　
APG2C1-940 940 nm 50 mW 350 mA 1.3 V +/-75° Emitter 　
APG2C1-970 970 nm 40 mW 350 mA 1.3 V +/-75° Emitter 　
APG2C1-1020 1020 nm 40 mw 350 mA 1.3 V +/-75° Emitter 　
APG2C1-1030 1030 nm 60 mw 350 mA 1.2 V +/-75° Emitter 　
APG2C1-1050 1050 nm 50 mw 350 mA 1.2 V +/-75° Emitter 　
　

HP803 Series

High power LED, 3 Watt electrical power

Power chip technology

Base diameter 7.4 mm, height 6.87 mm

Part No. Wavelength Output Power Current Voltage φ Package Note Data sheet
HP803NW white 130-160 lm 700 mA 4.0 V 120° Emitter phase out
HP803WW warm white 140-170 lm 700 mA 4.0 V 120° Emitter phase out
HP803PG 530 nm 80-110 lm 700 mA 3.8 V 120° Emitter phase out
HP803NO 590 nm 36 lm 700 mA 3.0 V 120° Emitter phase out
HP803NR 625 nm 50-70 lm 700 mA 3.0 V 120° Emitter phase out
　

APG2C3 Series

High power LED, 3 Watt electrical power

Power chip technology

Base diameter 7.4 mm, height 6.87 mm

Package color: black or white

Part No. Wavelength Output Power Current Voltage φ Package Note Data sheet
APG2C3-NW white 150-170 lm 700 mA 4.0 V 120° Emitter typ. 6000 K request
APG2C3-WW warm white 140-160 lm 700 mA 4.0 V 120° Emitter typ. 3300 K request
APG2C3-470 470 nm 20-40 lm 700 mA 4.0 V 120° Emitter 　
APG2C3-530 530 nm 90-120 lm 700 mA 4.0 V 120° Emitter 　 request
APG2C3-590 590 nm 60-80 lm 700 mA 2.8 V 120° Emitter 　
APG2C3-625 625 nm 60-80 lm 700 mA 2.8 V 120° Emitter 　 request
　

APG2C5 Series

High power LED, 5 Watt electrical power

Power chip technology, 2x2 mm² LED chip size

Base diameter 7.4 mm, height 6.87 mm

Package color: black or white

Part No. Wavelength Output Power Current Voltage φ Package Note Data sheet
APG2C5-670 670 nm 250-300 mW 2 A 　 +/-75° Emitter lambertian epoxy lens request
APG2C5-680 680 nm typ. 550 mW 2 A 　 +/-75° Emitter lambertian epoxy lens request

HIGH POWER SINGLE CHIP LEDS, HEXAGONAL PACKAGE

H2A1 Series

High power LED, 1 Watt electrical power

Power chip technology, 1x1 mm² LED chip size

Diameter: 20 mm, lambertian high dome lens

Mechanical compatible with many collimating lenses

Part No. Wavelength Output Power Current Voltage φ Package Note Data sheet
H2A1-H365-E 365 nm 135 mw 350 mA 3.8 V +/-75° 　 silicone lens
H2A1-H375 375 nm 55 mw 350 mA 3.7 V +/-75° 　 silicone lens request
H2A1-H375-S 375 nm 100 mw 350 mA 4.0 V +/-75° 　 silicone lens
H2A1-H385 385 nm 60 mw 350 mA 3.8 V +/-75° 　 silicone lens
H2A1-H395 395 nm 95 mw 350 mA 3.7 V +/-75° 　 silicone lens
H2A1-H405 405 nm 105 mw 350 mA 3.7 V +/-75° 　 silicone lens request
H2A1-H410 410 nm 125 mw 350 mA 3.65 V +/-75° 　 silicone lens
H2A1-H420 420 nm 130 mw 350 mA 3.5 V +/-75° 　 silicone lens
H2A1-H435 435 nm 380 mw 350 mA 3.5 V +/-75° 　 　
H2A1-H470 470 nm 200 mw 350 mA 3.3 V +/-75° 　 　
H2A1-H490 490 nm 130 mw 350 mA 3.3 V +/-75° 　 　
H2A1-H505 505 nm 130 mW 350 mA 3.5 V +/-75° 　 　
H2A1-H515 515 nm 150 mW 350 mA 3.5 V +/-75° 　 　
H2A1-H650 650 nm 40 mw 350 mA 2.0 V +/-75° 　 　
H2A1-H660 660 nm 60 mw 350 mA 2.1 V +/-75° 　 　
H2A1-H670 670 nm 60 mW 350 mA 2.0 V +/-75° 　 　
H2A1-H680 680 nm 60 mW 350 mA 2.0 V +/-75° 　 　 request
H2A1-H690 690 nm 60 mW 350 mA 2.0 V +/-75° 　 　
H2A1-H720 720 nm 70 mW 350 mA 2.0 V +/-75° 　 　 request
H2A1-H740 740 nm 80 mW 350 mA 1.9 V +/-75° 　 　
H2A1-H760 760 nm 80 mW 350 mA 1.9 V +/-75° 　 　
H2A1-H780 780 nm 70 mW 350 mA 1.7 V +/-75° 　 　
H2A1-H810 810 nm 90 mW 350 mA 1.75 V +/-75° 　 　
H2A1-H830 830 nm 70 mW 350 mA 1.5 V +/-75° 　 　
H2A1-H850 850 nm 90 mW 350 mA 1.5 V +/-75° 　 　
H2A1-H880 880 nm 90 mW 350 mA 1.5 V +/-75° 　 　
H2A1-H905 905 nm 70 mW 350 mA 1.4 V +/-75° 　 　
H2A1-H920 920 nm 80 mW 350 mA 1.3 V +/-75° 　 　
H2A1-H940 940 nm 50 mW 350 mA 1.3 V +/-75° 　 　
H2A1-H970 970 nm 40 mW 350 mA 1.4 V +/-75° 　 　
H2A1-H1020 1020 nm 40 mw 350 mA 1.3 V +/-75° 　 　
H2A1-H1030 1030 nm 65 mw 350 mA 1.2 V +/-75° 　 　 request
H2A1-H1050 1050 nm 50 mw 350 mA 1.2 V +/-75° 　 　
　

H11A1 Series

High power LED, 1 Watt electrical power

Power chip technology, 1x1 mm² LED chip size

Diameter: 20 mm, aluminium package

Available viewing angles: 30°, 60° or 120°

-> PHASE OUT

Part No. Wavelength Output Power Current Voltage φ Package Note Data sheet
H11A1-HU-30 395-405 nm 15-20 mW 350 mA 　 30° 　 　
H11A1-HW-30 white 20 cd 350 mA 　 30° 　 　
H11A1-HB-30 470 nm 17-20 mW, 14 cd 350 mA 　 30° 　 　
H11A1-HR-30 625 nm 20-25 mW, 10 cd 350 mA 　 30° 　 　
H11A1-660-30 660 nm 20-25 mW 350 mA 　 30° 　 　
H11A1-670-30 670 nm 20-25 mW 350 mA 　 30° 　 　
H11A1-680-30 680 nm 20-25 mW 350 mA 　 30° 　 　
H11A1-690-30 690 nm 25-30 mW 350 mA 　 30° 　 　
H11A1-690-60 690 nm 25-30 mW 350 mA 　 60° 　 　
H11A1-720-120 720 nm 28-35 mW 350 mA 　 120° 　 　
H11A1-740-30 740 nm 28-35 mW 350 mA 　 30° 　 　
H11A1-760-30 760 nm 28-35 mW 350 mA 　 30° 　 　
H11A1-770-30 770 nm 28-35 mW 350 mA 　 30° 　 　
H11A1-780-30 780 nm 110 mW 500 mA 　 30° 　 　
H11A1-830-30 830 nm 110 mW 500 mA 　 30° 　 　
H11A1-850-30 850 nm 　 350 mA 　 30° 　 　
H11A1-880-30 880 nm 30-40 mW 350 mA 　 30° 　 　
H11A1-905-30 905 nm 25-30 mW 350 mA 　 30° 　 　
H11A1-920-30 920 nm 　 350 mA 　 30° 　 　 request
H11A1-940-30 940 nm 25-30 mW 350 mA 　 30° 　 　
H11A1-940-120 940 nm 25-30 mW 350 mA 　 120° 　 　
H11A1-970-30 970 nm 　 350 mA 　 30° 　 　
　

LXHL 1W Series

High power LED, 1 Watt electrical power

Power chip technology, 1x1 mm² LED chip size

Diameter: 20 mm, aluminium package

lambertian high dome lens

-> PHASE OUT

Part No. Wavelength Output Power Current Voltage φ Package Note Data sheet
LXHL-MB1D 470 nm 10 lm 350 mA 　 +/-60° 　 　 request
LXHL-ME1D 505 nm 30 lm 350 mA 　 +/-60° 　 　 request
LXHL-ML1D 590 nm 36 lm 350 mA 　 +/-60° 　 　 request
LXHL-MH1D 617 nm 55 lm 350 mA 　 +/-60° 　 　 request
LXHL-MD1D 625 nm 44 lm 350 mA 　 +/-60° 　 　 request
LXCL-PWF1 white 53 lm 1 A pulse 　 +/-60° 　 flash LED
　

H-HP803 Series

High power LED, 3 Watt electrical power

Power chip technology

Size 19.8 mm, height 8.42 mm

-> PHASE OUT

Part No. Wavelength Output Power Current Voltage φ Package Note Data sheet
H-HP803NW white, 6000K 130-160 lm 700 mA 4.0 V 120° 　 　
H-HP803NO 590 nm 36 lm 700 mA 3.0 V 120° 　 　
　

H2A3 Series

High power LED, 3 Watt electrical power

Power chip technology

Size 19.8 mm, height 8.42 mm

Part No. Wavelength Output Power Current Voltage φ Package Note Data sheet
H2A3-NW white 150-170 lm 700 mA 4.0 V 120° 　 typ. 6000 K request
H2A3-WW warm white 140-160 lm 700 mA 4.0 V 120° 　 typ. 3300 K request
H2A3-H470 470 nm 20-40 lm 700 mA 4.0 V 120° 　 　 request
H2A3-H530 530 nm 90-120 lm 700 mA 4.0 V 120° 　 　
H2A3-H590 590 nm 60-80 lm 700 mA 2.8 V 120° 　 　 request
H2A3-H625 625 nm 60-80 lm 700 mA 2.8 V 120° 　 　
　

LXHL 3W Series

High power LED, 3 Watt electrical power

Power chip technology

Diameter: 20 mm, aluminium package

Lambertian high dome lens

-> PHASE OUT

Part No. Wavelength Output Power Current Voltage φ Package Note Data sheet
LXHL-LW3C white 80 lm 1 A 　 +/-60° 　 　
LXHL-LB3C 470 nm 30 lm 1 A 　 +/-60° 　 　
LXHL-LE3C 505 nm 80 lm 1 A 　 +/-60° 　 　
　

H2W5 Series

High power LED, 5 Watt electrical power

Power chip technology, 2x2 mm² LED chip size

Lambertian high dome lens

Mechanical compatible with many collimating lenses

Part No. Wavelength Output Power Current Voltage φ Package Note Data sheet
H2W5-670 670 nm 550 mW 2 A 2.0 V +/-75° 　 　
H2W5-680 680 nm 550 mW 2 A 2.0 V +/-75° 　 　
H2W5-850 850 nm 550 mW 2 A 2.0 V +/-75° 　 　
H2W5-870 870 nm 550 mW 2 A 2.0 V +/-75° 　 　
H2W5-905 905 nm 400 mW 2 A 1.9 V +/-75° 　 　
H2W5-950 950 nm 330 mW 2 A 1.8 V +/-75° 　 　
　

LXHL 5W Series

High power LED, 5 Watt electrical power

Power chip technology, 2x2 mm² LED chip size

Lambertian high dome lens

-> PHASE OUT

Part No. Wavelength Output Power Current Voltage φ Package Note Data sheet
LXHL-LE5C 505 nm 120 lm 700 mA 　 +/-75° 　 　

HIGH POWER SINGLE CHIP LEDS, SMD LEDS

Ultra high power UV LED

High power LED

Power chip technology

Glass window

Hermetic ceramic SMD package

Part No. Wavelength Output Power Current Voltage φ Size Note Data sheet
UVLED-365-330-SMD 365 nm 330 mW 500 mA 3.8 V 120° 6.8 x 6.8 x 2.1 mm glass window
XRL-375-SD 375 nm 48 mW 100 mA 3.6 V 120° 4.2 x 4.2 x 1.3 mm silicone resin
UVLED-385-400-SMD 385 nm 400 mW 500 mA 3.7 V 120° 6.8 x 6.8 x 2.1 mm glass window
　

CUN - Series

High power LED

Aluminium SMD package

Quartz Glass window

ESD protection

Part No. Wavelength Output Power Current Voltage φ Size Note Data sheet
CUN6AF1B 365 nm 690 mW 500 mA 4.0 V 110° 6.3 x 6.3 x 1.8 mm glass window
CUN7AF1A 375 nm 710 mW 500 mA 3.8 V 110° 6.3 x 6.3 x 1.8 mm glass window
CUN8AF1A 385 nm 950 mW 500 mA 3.8 V 110° 6.3 x 6.3 x 1.8 mm glass window
CUN9AF1A 395 nm 900 mW 500 mA 3.6 V 110° 6.3 x 6.3 x 1.8 mm glass window
CUN0AF1A 405 nm 900 mW 500 mA 3.6 V 110° 6.3 x 6.3 x 1.8 mm glass window
　

RLCU-440 Series

High power surface mount LED

Power chip technology

AIN ceramics submount, silver plated soldering pads

Lead free solderable, RoHs compliant, Top -40...85°C

SMD package, 3.8 x 3.8 x 0.9 mm

Part No. Wavelength Output Power Current Voltage φ Size Note Data sheet
RLCU-440-365 365-370 nm 40-90 mW 350 mA 4.0 V 120° 　 　
RLCU-440-380 380-385 nm 90-160 mW 350 mA 4.0 V 120° 　 　
RLCU-440-390 390-395 nm 130-260 mW 350 mA 4.0 V 120° 　 　
RLCU-440-400 400-405 nm 190-310 mW 350 mA 4.0 V 120° 　 　
RLCU-440-410 410-415 nm typ. 250 mW 350 mA 4.0 V 120° 　 　 request
RLCU-440-415 415-420 nm typ. 250 mW 350 mA 4.0 V 120° 　 　 request
RLCU-440-720 720 nm 30-50 mW/sr 350 mA 　 120° 　 　 request
RLCU-440-880 880 nm 20-30 mW/sr 350 mA 　 120° 　 　 request
RLCU-440-970 970 nm typ. 9 mW/sr 350 mA 　 120° 　 　 request
RLCU-440-1020 1020 nm typ. 17 mW/sr 350 mA 　 120° 　 　 request
RLCU-440-1050 1050 nm typ. 16 mW/sr 350 mA 　 120° 　 　 request
　

VLxxx-5050 Series

High power LED

Power chip technology

UV resistant silicone mold, integrated zener diode ESD protection

Hermetic ceramic SMD package, size: 5.0 x 5.0 x 1.0 mm

Part No. Wavelength Output Power Current Voltage φ Size Note Data sheet
VL370-5050 370 nm 20-30 mW 350 mA 4.0-4.2 V 120° 　 　
VL380-5050 380 nm 50-60 mW 350 mA 3.8-4.2 V 120° 　 　
VL390-5050 390 nm 70-80 mW 350 mA 3.8-4.2 V 120° 　 　
VL400-5050 400 nm 100-110 mW 350 mA 3.5-3.8 V 120° 　 　
　

SMB1N Series

High power LED, power chip technology

Chip size 1 x 1 mm², mounted on copper heat sink into a heat resistant polyamide (PA9T) SMD package, without leads

Base size: 5.0 x 5.0 mm, silicone / epoxy mold

Wavelength: 365 nm - 1300 nm available

Part No. Wavelength Output Power Current Voltage φ Size Note Data sheet
SMB1N-365V 365 nm 350 mW 500 mA <4.5 V 124° 　 　 request
SMB1N-375V 375 nm 　 　 　 　 　 　 request
SMB1N-395V 395 nm 420 mW 500 mA 3.6 V 124° 　 　 request
SMB1N-420V 420 nm 400 mW 350 mA <3.8 V 124° 　 　 request
SMB1N-D450 450 nm 480 mW 350 mA <4.0 V 130° 　 　
SMB1N-470V 470 nm 360 mW 500 mA <3.6 V 128° 　 　
SMB1N-490 490 nm 320 mW 350 mA <4.1 V 126° 　 　
SMB1N-515V 515 nm 230 mW 350 mA <3.6 V 126° 　 　 request
SMB1N-525V 525 nm 230 mW 350 mA <3.6 V 126° 　 　 request
SMB1N-590 590 nm 300 mW 500 mA <3.0 V 120° 　 　 request
SMB1N-620 620 nm 190 mW 350 mA <2.7 V 126° 　 　 request
SMB1N-630 630 nm 250 mW 350 mA <2.7 V 124° 　 　 request
SMB1N-D660N 660 nm 250 mW 350 mA <3.0 V 124° 　 　
SMB1N-670 670 nm 130 mW 600 mA <2.5 V 124° 　 　 request
SMB1N-680 680 nm 130 mW 600 mA <2.5 V 124° 　 　
SMB1N-690D 690 nm 490 mW 600 mA <3.0 V 126° 　 　
SMB1N-700 700 nm 100 mW 500 mA <2.7 V 128° 　 　 request
SMB1N-720 720 nm 　 　 　 　 　 　 request
SMB1N-735 735 nm 150 mW 600 mA <2.3 V 130° 　 　 request
SMB1N-740D 740 nm 290 mW 600 mA <2.4 V 126° 　 　
SMB1N-750 750 nm 290 mW 800 mA <2.4 V 126° 　 　
SMB1N-760D 760 nm 400 mW 800 mA <2.5 V 128° 　 　 request
SMB1N-770 770 nm 330 mW 800 mA 　 126° 　 　 request
SMB1N-780D 780 nm 500 mW 800 mA <2.5 V 128° 　 　 request
SMB1N-810D 810 nm 540 mW 800 mA <2.5 V 130° 　 　 request
SMB1N-820D 820 nm 540 mW 800 mA <2.5 V 124° 　 　 request
SMB1N-830N 830 nm 280 mW 800 mA <2.2 V 128° 　 　
SMB1N-850D 850 nm 650 mW 1 A <2.5 V 124° 　 　
SMB3N-850D-I 850nm 1.5 W 1 A <7.5 V 　 　 3 chips, isolated request
SMB1N-870 870 nm 　 　 　 　 　 　 request
SMB1N-880 880 nm 　 　 　 　 　 　 request
SMB1N-940 940 nm 110 mW 500 mA <1.65 V 130° 　 　 request
SMB1N-945 945 nm 620 mW 1 A <1.8 V 124° 　 　
SMB1N-970 970 nm 　 　 　 　 　 　 request
SMB1N-980 980 nm 　 　 　 　 　 　 request
SMB1N-1300 1300 nm 15 mW 500 mA <1.4 V 134° 　 　 request
　

SMB1N Series, with lens

High power LED, power chip technology

Chip size 1 x 1 mm², mounted on copper heat sink into a heat resistant polyamide (PA9T) SMD package, without leads

Base size: 5.0 x 5.0 mm, silicone / epoxy mold

Wavelength: 365 nm - 1300 nm available

Part No. Wavelength Output Power Current Voltage φ Size Note Data sheet
SMB1N-365V-02 365 nm 350 mW 500 mA <4.5 V 20° 　 　 request
SMB1N-375V-02 375 nm 　 　 　 　 　 　 request
SMB1N-395V-02 395 nm 　 　 　 　 　 　 request
SMB1N-420V-02 420 nm 400 mW 350 mA <3.8 V 22° 　 　 request
SMB1N-D450-02 450 nm 480 mW 350 mA 　 20° 　 　 request
SMB1N-470V-02 470 nm 　 　 　 　 　 　 request
SMB1N-490-02 490 nm 200 mW 250 mA <4.1 V 22° 　 　
SMB1N-515V-02 515 nm 250 mW 350 mA <3.6 V 18° 　 　
SMB1N-520V-02 520 nm 250 mW 350 mA <3.8 V 20° 　 　 request
SMB1N-590-02 590 nm 200 mW 350 mA <2.8 V 24° 　 　
SMB1N-620-02 620 nm 　 　 　 　 　 　 request
SMB1N-D630-02 630 nm 330 mW 350 mA <2.8 V 18° 　 　
SMB1N-660N-02 660 nm 290 mW 350 mA <3.0 V 22° 　 　 request
SMB1N-670-02 670 nm 　 　 　 　 　 　 request
SMB1N-680-02 680 nm 170 mW 600 mA <2.5 V 18° 　 　
SMB1N-690D-02 690 nm 490 mW 600 mA <3.0 V 18° 　 　 request
SMB1N-700-02 700 nm 120 mW 500 mA <2.7 V 20° 　 　 request
SMB1N-720-02 720 nm 190 mW 600 mA <2.8 V 20° 　 　
SMB1N-735-02 735 nm 180 mW 600 mA <2.3 V 22° 　 　 request
SMB1N-740D-02 740 nm 290 mW 600 mA <2.4 V 16° 　 　
SMB1N-750-02 750 nm 320 mW 800 mA <2.4 V 20° 　 　
SMB1N-760D-02 760 nm 400 mW 800 mA <2.5 V 20° 　 　 request
SMB1N-770-02 770 nm 330 mW 800 mA <2.5 V 20° 　 　
SMB1N-780D-02 780 nm 500 mW 800 mA <2.6 V 18° 　 　
SMB1N-810D-02 810 nm 560 mW 800 mA <2.5 V 20° 　 　 request
SMB1N-820D-02 820 nm 　 　 　 　 　 　 request
SMB1N-830N-02 830 nm 340 mW 800 mA <2.2 V 18° 　 　
SMB1N-850D-02 850 nm 630 mW 1 A <1.9 V 22° 　 　 request
SMB3N-850D-02-I 850nm 1.6 W 1 A <7.5 V 　 　 3 chips, isolated request
SMB1N-870-02 870 nm 430 mW 1 A <2.5 V 24° 　 　 request
SMB1N-880-02 880 nm 270 mW 800 mA <2.2 V 20° 　 　
SMB1N-940-02 940 nm 120 mW 500 mA <1.65 V 24° 　 　 request
SMB1N-945D-02 945 nm 630 mW 1 A <1.8 V 22° 　 　
SMB1N-970-02 970 nm 　 　 　 　 　 　 request
SMB1N-980-02 980 nm 80 mW 500 mA <1.7 V 20° 　 　 request
SMB1N-1300-02 1300 nm 25 mW 500 mA <1.4 V 22° 　 　 request
　

SMB Series

High power LED, power chip technology

Chip size 1 x 1 mm², mounted on copper heat sink into a hermetic ceramic SMD package

Base size: 5.0 x 5.0 mm, silicone / epoxy mold

Wavelength: 395 nm - 1050 nm available

Part No. Wavelength Output Power Current Voltage φ Size Note Data sheet
SMB1W-395R 395 nm 100 mW 200 mA < 4.5 V 120° 　 　 request
SMB1W-490R 490 nm 160 mW 250 mA < 4.1 V 126° 　 　 request
SMB1W-525R 525 nm 55 mW 200 mA < 3.8 V 120° 　 　 request
SMB1W-670R 670 nm 200 mW 600 mA 　 124° 　 　
SMB1W-680R 680 nm 90 mW 500 mA < 2.7 V 124° 　 　
SMB1W-680R-I 680 nm 90 mW 500 mA < 2.7 V 124° 　 isolated chip request
SMB1W-735 735 nm 150 mW 600 mA < 2.3 V 130° 　 　
SMB1W-750R 750 nm 330 mW 800 mA < 2.5 V 124° 　 　 request
SMB1W-760-I 760 nm 330 mW 800 mA < 2.5 V 124° 　 isolated chip
SMB1W-770R 770 nm 330 mW 800 mA < 2.5 V 124° 　 　
SMB1W-850 850 nm 430 mW 1.0 A < 2.5 V 132° 　 　
SMB1W-850D 850 nm 600 mW 1.2 A < 2.9 V 126° 　 　
SMB1W-870 870 nm 430 mW 1.0 A < 2.5 V 132° 　 　
SMB1W-870-I 870 nm 230 mW 600 mA < 2.1 V 132° 　 isolated chip
SMB1W-880R-I 880 nm 320 mW 800 mA lt; 2.2 V 132° 　 isolated chip request
　

SMB Series, with lens

High power LED, power chip technology

Chip size 1 x 1 mm², mounted on copper heat sink into a hermetic ceramic SMD package

Base size: 5.0 x 5.0 mm, silicone / epoxy mold - different viewing angles available

Wavelength: 395 nm - 1050 nm available

Part No. Wavelength Output Power Current Voltage φ Size Note Data sheet
SMB1W-470-04 470 nm 170 mW 250 mA < 3.8 V 36° 　 　 request
SMB1W-490-31 490 nm 180 mW 250 mA < 4.1 V 14° 　 　 request
SMB1W-660N-02 660 nm 220 mW 350 mA < 2.3 V 22° 　 　
SMB1W-700-02 700 nm 90 mW 500 mA < 2.7 V 22° 　 　 request
SMB1W-700-04 700 nm 90 mW 500 mA < 2.7 V 48° 　 　
SMB1W-700-04-I 700 nm 90 mW 500 mA < 2.7 V 48° 　 isolated chip request
SMB1W-750-02 750 nm 330 mW 800 mA < 2.5 V 22° 　 　 request
SMB1W-750-04 750 nm 330 mW 800 mA < 2.5 V 42° 　 　 request
SMB1W-760-04-I 760 nm 330 mW 800 mA < 2.5 V 48° 　 isolated chip request
SMB1W-770-04 770 nm 330 mW 800 mA 　 48° 　 　 request
SMB1W-780-02 780 nm 330 mW 800 mA 　 22° 　 　 request
SMB1W-780-04-I 780 nm 330 mW 800 mA < 2.5 V 48° 　 isolated chip request
SMB1W-850D-04 850 nm 630 mW 1 A 　 38° 　 　 request
SMB1W-880-04-I 880 nm 320 mW 800 mA < 2.2 V 42° 　 isolated chip request
SMB1W-940-04-I 940 nm 110 mW 500 mA < 1.65 V 50° 　 isolated chip request

HIGH POWER SINGLE CHIP LEDS, ELJ SERIES

ELJ Series

High power LED

Power chip technology, 1x1 mm² LED chip size, 1 Watt electrical power

Clear aspheric plastic lens, round beam, narrow viewing angle

M10x1.5 thread package, metal case

Part No. Wavelength Output Power Current Voltage φ Package Note Data sheet
ELJ-465-627 465 nm 200 mW, 840 mW/sr 500 mA 3.4 V 20° M10x1.5 thread package tr/tf: 20/25 ns
ELJ-505-627 505 nm 40 mW, 700 mW/sr 500 mA <4.6 V 17° M10x1.5 thread package tr/tf: 15/30 ns
ELJ-525-627 525 nm 35 mW, 320 mW/sr 500 mA <4.6 V 15° M10x1.5 thread package tr/tf: 15/30 ns
ELJ-590-617 590 nm 40 mW, 570 mW/sr 700 mA <3.2 V 17° M10x1.5 thread package tr/tf: 65 ns
ELJ-590-628 590 nm 45 mW, 1.3 mW/sr 700 mA <3.2 V 8° M10x1.5 thread package tr/tf: 65 ns
ELJ-630-628 630 nm 260 mW, 1.97 mW/sr 1 A <2.7 V 15° M10x1.5 thread package tr/tf: 60 ns
ELJ-670-629 670 nm 80 mW, 800 mW/sr 1 A <3.0 V 15° M10x1.5 thread package tr/tf: 55 ns
ELJ-690-629 690 nm 100 mW, 720 mW/sr 700 mA 2.4 V 17° M10x1.5 thread package tr/tf: 45 ns
ELJ-750-629 750 nm 200 mW, 1.8 W/sr 1 A 2.0 V 20° M10x1.5 thread package tr/tf: 60 ns
ELJ-810-629 810 nm 125 mW, 1.65 W/sr 1 A <2.6 V 17° M10x1.5 thread package tr/tf: 75 ns
ELJ-830-629 830 nm 260 mW, 2.1 W/sr 1 A <2.4 V 20° M10x1.5 thread package tr/tf: 20 ns
ELJ-850-629 850 nm 280 mW, 2.0 W/sr 1 A <2.3 V 20° M10x1.5 thread package tr/tf: 15/20 ns
ELJ-870-629 870 nm 250 mW, 1.9 W/sr 1 A <2.3 V 15° M10x1.5 thread package tr/tf: 10/20 ns
ELJ-940-629 940 nm 120 mW, 950 mW/sr 1 A <2.2 V 20° M10x1.5 thread package tr/tf: 600 ns

HIGH POWER SINGLE CHIP LEDS, JET SERIES

JET Series

High power LED, narrow beam

Power chip technology

5-10° viewing angle, square beam, no dark beam center from bonding wire

Clear epoxy package, M12x1 thread

Part No. Wavelength Output Power Current Voltage φ Package Note Data sheet
JET-635-05 635 nm 110 mW 500 mA 2.4 V 5° 　 　
JET-635-10 635 nm 130 mW 500 mA 2.4 V 10° 　 　
JET-660-05 660 nm 135 mW 500 mA 2.4 V 5° 　 　
JET-660-12 660 nm 210 mW 500 mA 2.4 V 10° 　 　
JET-685-05 685 nm 40 mW 700 mA 2.4 V 5° 　 　
JET-685-10 685 nm 88 mW 700 mA 2.4 V 10° 　 　
JET-735-05 730 nm 70 mW 500 mA 2.4 V 5° 　 　
JET-735-10 730 nm 130 mW 500 mA 2.4 V 10° 　 　
JET-800-10 800 nm 90 mW 500 mA 2.4 V 10° 　 　
JET-870-05 870 nm 90 mW 500 mA 2.2 V 5° 　 　
JET-870-10 870 nm 90 mW 500 mA 2.2 V 10° 　 　

HIGH POWER SINGLE CHIP LEDS, SUPER BEAM

REM Series

High power LED, ultra narrow beam

Power chip technology

4° viewing angle, round beam, no dark beam center from bonding wire

Black epoxy package, M3x0.5 thread

Part No. Wavelength Output Power Current Voltage φ Package Note Data sheet
REM-870-4M 870 nm 45 mW 300 mA 1.6 V 4° 　 tr/tf: 30 ns
　

FL Series

High power LED, super beam

Power chip technology

16° viewing angle

Clear epoxy package, base size: 7.6 x 7.6 mm²

-> PHASE OUT

Part No. Wavelength Output Power Current Voltage φ Package Note Data sheet
FL630W-21 635 nm 8 mW 20 mA 2.2 V 16° 　 　
FL850-03-80 850 nm 60 mW 100 mA 1.4 V 16° 　 　

HIGH POWER SINGLE CHIP LEDS, M3L1 SERIES

M3L1 Series

High power LED, 1 Watt electrical power

Power chip technology, 1x1 mm² LED chip size

Aluminium disk package, diameter 11 mm, with M3 thread, thread length 6 mm

-> PHASE OUT

Part No. Wavelength Output Power Current Voltage φ Package Note Data sheet
M3L1-HW-60 white 16 cd 350 mA 　 60° 　 　
M3L1-HW-120 white 15 cd 350 mA 　 120° 　 　
M3L1-HW-120-S soft white 15 cd 350 mA 　 120° 　 　
M3L1-HU-30 395-405 nm 15-20 mW 350 mA 　 30° 　 　 request
M3L1-HU-60 395-405 nm 15-20 mW 350 mA 　 60° 　 　 request
M3L1-HU-120 395-405 nm 15-20 mW 350 mA 　 120° 　 　 request
M3L1-HB-30 470 nm 17-20 mW, 14 cd 350 mA 　 30° 　 　
M3L1-HB-60 470 nm 17-20 mW, 12 cd 350 mA 　 60° 　 　
M3L1-HB-120 470 nm 17-20 mW, 10 cd 350 mA 　 120° 　 　
M3L1-HC-120 505 nm 15-18 mW, 17 cd 350 mA 　 120° 　 　
M3L1-HG-30 525 nm 13-17 mW, 25 cd 350 mA 　 30° 　 　
M3L1-HG-60 525 nm 13-17 mW, 22 cd 350 mA 　 60° 　 　
M3L1-HG-120 525 nm 13-17 mW, 20 cd 350 mA 　 120° 　 　
M3L1-HY-30 590 nm 8-10 mW, 10 cd 350 mA 　 30° 　 　
M3L1-HY-60 590 nm 8-10 mW, 8 cd 350 mA 　 60° 　 　
M3L1-HY-120 590 nm 8-10 mW, 7 cd 350 mA 　 120° 　 　
M3L1-HR-30 625 nm 20-25 mW, 10 cd 350 mA 　 30° 　 　
M3L1-HR-120 625 nm 20-25 mW, 7 cd 350 mA 　 120° 　 　
M3L1-660-30 660 nm 20-25 mW 350 mA 　 30° 　 　 request
M3L1-670-30 670 nm 20-25 mW 350 mA 　 30° 　 　 request
M3L1-680-30 680 nm 20-25 mW 350 mA 　 30° 　 　 request
M3L1-740-60 740 nm 28-35 mW 350 mA 　 60° 　 　 request
M3L1-740-120 740 nm 28-35 mW 350 mA 　 120° 　 　 request
M3L1-760-30 760 nm 28-35 mW 350 mA 　 30° 　 　 request
M3L1-770-30 770 nm 28-35 mW 350 mA 　 30° 　 　 request
M3L1-830-30 830 nm 110 mW 350 mA 　 30° 　 　 request
M3L1-880-30 880 nm 30-40 mW 350 mA 　 30° 　 　
M3L1-905-30 905 nm 25-30 mW 350 mA 　 30° 　 　 request
M3L1-920-30 920 nm 25-30 mW 350 mA 　 30° 　 　 request
M3L1-940-30 940 nm 25-30 mW 350 mA 　 30° 　 　
M3L1-940-120 940 nm 25-30 mW 350 mA 　 120° 　 　
M3L1-970-30 970 nm 　 350 mA 　 30° 　 　

HIGH POWER SINGLE CHIP LEDS, C11A1 SERIES

C11A1 Series

High power LED, Ø11 mm aluminium disk package

Power chip technology, 1x1 mm² LED chip size, 1 Watt electrical power

Available viewing angles: 30°, 60° or 120°

-> PHASE OUT

Part No. Wavelength Output Power Current φ Package Note Data sheet
C11A1-HU-30 395-405 nm 15-20 mW 350 mA 30° Ø11 mm aluminium disk 　 request
C11A1-HU-60 395-405 nm 15-20 mW 350 mA 60° Ø11 mm aluminium disk 　 request
C11A1-HU-120 395-405 nm 15-20 mW 350 mA 120° Ø11 mm aluminium disk 　 request
C11A1-HW-30 white 20 cd 350 mA 30° Ø11 mm aluminium disk 　
C11A1-HW-60 white 20 cd 350 mA 60° Ø11 mm aluminium disk 　
C11A1-HW-120 white 20 cd 350 mA 120° Ø11 mm aluminium disk 　
C11A1-HW-120-S soft white 20 cd 350 mA 120° Ø11 mm aluminium disk 　
C11A1-HB-30 470 nm 17-20 mW, 14 cd 350 mA 30° Ø11 mm aluminium disk 　
C11A1-HB-120 470 nm 17-20 mW, 14 cd 350 mA 120° Ø11 mm aluminium disk 　
C11A1-HC-30 505 nm 15-18 mW, 20 cd 350 mA 30° Ø11 mm aluminium disk 　
C11A1-HC-120 505 nm 15-18 mW, 20 cd 350 mA 120° Ø11 mm aluminium disk 　
C11A1-HG-30 525 nm 13-17 mW, 25 cd 350 mA 30° Ø11 mm aluminium disk 　
C11A1-HG-120 525 nm 13-17 mW, 25 cd 350 mA 120° Ø11 mm aluminium disk 　
C11A1-HY-30 590 nm 8-10 mW, 10 cd 350 mA 30° Ø11 mm aluminium disk 　
C11A1-HY-120 590 nm 8-10 mW, 10 cd 350 mA 120° Ø11 mm aluminium disk 　
C11A1-HR-120 625 nm 20-25 mW, 10 cd 350 mA 120° Ø11 mm aluminium disk 　
C11A1-660-30 660 nm 20-25 mW 350 mA 30° Ø11 mm aluminium disk 　 request
C11A1-660-120 660 nm 20-25 mW 350 mA 120° Ø11 mm aluminium disk 　 request
C11A1-670-30 670 nm 20-25 mW 350 mA 30° Ø11 mm aluminium disk 　 request
C11A1-670-120 670 nm 20-25 mW 350 mA 120° Ø11 mm aluminium disk 　 request
C11A1-680-30 680 nm 20-25 mW 350 mA 30° Ø11 mm aluminium disk 　 request
C11A1-680-120 680 nm 20-25 mW 350 mA 120° Ø11 mm aluminium disk 　 request
C11A1-690-30 690 nm 25-30 mW 350 mA 30° Ø11 mm aluminium disk 　 request
C11A1-690-120 690 nm 25-30 mW 350 mA 120° Ø11 mm aluminium disk 　 request
C11A1-720-60 720 nm 28-35 mW 350 mA 60° Ø11 mm aluminium disk 　 request
C11A1-720-120 720 nm 28-35 mW 350 mA 120° Ø11 mm aluminium disk 　 request
C11A1-740-30 740 nm 28-35 mW 350 mA 30° Ø11 mm aluminium disk 　 request
C11A1-740-60 740 nm 28-35 mW 350 mA 60° Ø11 mm aluminium disk 　 request
C11A1-760-30 760 nm 28-35 mW 350 mA 30° Ø11 mm aluminium disk 　 request
C11A1-770-30 770 nm 28-35 mW 350 mA 30° Ø11 mm aluminium disk 　 request
C11A1-780-30 780 nm 110 mW 500 mA 30° Ø11 mm aluminium disk 　 request
C11A1-810-30 810 nm 37-45 mW 350 mA 30° Ø11 mm aluminium disk 　 request
C11A1-820-30 820 nm 38-46 mW 350 mA 30° Ø11 mm aluminium disk 　 request
C11A1-850-30 850 nm 　 350 mA 30° Ø11 mm aluminium disk 　
C11A1-880-30 880 nm 30-40 mW 350 mA 30° Ø11 mm aluminium disk 　
C11A1-905-30 905 nm 25-30 mW 350 mA 30° Ø11 mm aluminium disk 　 request
C11A1-920-30 920 nm 25-30 mW 350 mA 30° Ø11 mm aluminium disk 　 request
C11A1-940-30 940 nm 25-30 mW 350 mA 30° Ø11 mm aluminium disk 　

HIGH POWER SINGLE CHIP LEDS, 20 mm DISK

C20A1 Series

High power LED, 1 Watt electrical power

Power chip technology, 1x1 mm² LED chip size

Aluminium disk package, diameter 20 mm

-> PHASE OUT

Part No. Wavelength Output Power Current Voltage φ Package Note Data sheet
C20A1-HU-30 395-405 nm 15-20 mW 350 mA 4.0 V 30° 　 　 request
C20A1-HB-30 470 nm 17-20 mW 350 mA 4.0 V 30° 　 　
C20A1-HC-30 505 nm 15-18 mW, 20 cd 350 mA 4.0 V 30° 　 　
C20A1-HG-30 525 nm 13-17 mW 350 mA 3.8 V 30° 　 　
C20A1-HR-30 625 nm 20-25 mW, 10 cd 350 mA 2.8 V 30° 　 　
C20A1-H650-30 650 nm 70 mw 350 mA 2.2 V 30° 　 　 request
C20A1-H660-30 660 nm 20-25 mw 350 mA 2.5 V 30° 　 　 request
C20A1-H670-30 670 nm 90 mw 350 mA 2.0 V 30° 　 　 request
C20A1-H680-30 680 nm 25-30 mw 350 mA 2.5 V 30° 　 　 request
C20A1-H690-30 690 nm 25-30 mw 350 mA 2.5 V 30° 　 　 request
C20A1-H720-30 720 nm 28-35 mw 350 mA 2.5 V 30° 　 　 request
C20A1-H740-30 740 nm 28-35 mw 350 mA 2.5 V 30° 　 　 request
C20A1-H740-60 740 nm 28-35 mw 350 mA 2.5 V 60° 　 　 request
C20A1-H760-30 760 nm 110 mw 350 mA 2.5 V 30° 　 　 request
C20A1-H770-30 770 nm 28-35 mw 350 mA 2.5 V 30° 　 　 request
C20A1-H810-30 810 nm 37-45 mw 350 mA 2.5 V 30° 　 　 request
C20A1-H820-30 820 nm 38-46 mw 350 mA 2.5 V 30° 　 　 request
C20A1-H850-30 850 nm 　 350 mA 3.0 V 30° 　 　
C20A1-H870-30 870 nm 　 350 mA 3.0 V 30° 　 　 request
C20A1-H880-30 880 nm 30-40 mw 350 mA 2.5 V 30° 　 　
C20A1-H890-30 890 nm 90 mw 350 mA 1.5 V 30° 　 　 request
C20A1-H905-30 905 nm 25-30 mw 350 mA 2.5 V 30° 　 　 request
C20A1-H940-30 940 nm 25-30 mw 350 mA 2.5 V 30° 　 　
　

C20A1 Series

High power LED

Power chip technology

Aluminium disk package, diameter 20 mm

-> PHASE OUT

Part No. Wavelength Output Power Current Voltage φ Package Note Data sheet
RLT-WNP600-02 white 5 lm 100 mA 　 60° 　 　 request
RLT-WNP1000-02 white 20 lm 350 mA 　 60° 　 　
RLT-BNP600-02 470 nm 3 lm 100 mA 　 60° 　 　 request
RLT-BNP1000-02 470 nm 11 lm 350 mA 　 60° 　 　
RLT-GNP1000-02 525 nm 20 lm 350 mA 　 60° 　 　 request
RLT-YUP600-02 587 nm 4 lm 100 mA 　 60° 　 　 request
RLT-RUP1000-02 630 nm 10 lm 350 mA 　 60° 　 　 request

HIGH POWER SINGLE CHIP LEDS, RECTANGULAR PACKAGE

R-HP803 Series

High power LED, 3 Watt electrical power

Power chip technology

Size: 25 x 25 mm², height 8.32 mm

-> PHASE OUT

Part No. Wavelength Output Power Current Voltage φ Package Note Data sheet
R-HP803NW white 55 lm 700 mA 4.0 V 120° 　 　 request
R-HP803WW warm white 45 lm 700 mA 4.0 V 120° 　 　 request
R-HP803NO 590 nm 36 lm 700 mA 3.0 V 120° 　 　 request

HIGH POWER SINGLE CHIP LEDS, EP20 SERIES

EP20 Series

High power LED

Power chip technology

Base size: 15.6 x 11,2 mm², dome size: Ø10.0 x 14.10 mm

-> PHASE OUT

Part No. Wavelength Output Power Current Voltage φ Package Note Data sheet
EP2012-150B1 470 nm 20 cd 150 mA 　 +/-10° 　 　 request
EP204K-150B1 470 nm 1.5 cd 150 mA 　 +/-50° 　 　 request

TO-66 high power array, with flat glass window and guard ring

60 chips array inside (5 x 12 chips on a 50 mm² footprint)

wavelengths: 365 nm - 435 nm and white, others on request

lens and heat sink available

LEDxxx-66-60-110 Wavelength Po Iop φ Uf Note Data sheet
LED365-66-60-110 365 nm 100 mW 200 mA 　 　 　 request
LED375-66-60-110 375 nm 150 mW 200 mA 　 　 　
LED385-66-60-110 385 nm 150 mW 240 mA 　 　 　
LED395-66-60-110 395 nm 240 mW 240 mA 　 　 　
LED405-66-60-110 405 nm 300 mW 400 mA 　 　 　
LED415-66-60-110 415 nm 300 mW 240 mA 　 　 　
LED420-66-60-110 420 nm 550 mW 400 mA +/-55° 　 　
LED430-66-60-110 430 nm 550 mW 400 mA 　 　 　 request
LED435-66-60-110 435 nm 　 　 　 　 　 request
LEDW47-66-60-110 white 13 cd 240 mA 　 　 　

TO-66 high power array, with silicone/epoxy resin

60 chips array inside (5 x 12 chips on a 50 mm² footprint)

wavelengths: 365 nm - 1550 nm, others on request

lens and heat sink available

LEDxxx-66-60 Wavelength Po Iop φ Uf Note Data sheet
LED365-66-60 365 nm 100 mW 200 mA +/- 55° 　 silicone resin
LED375-66-60 375 nm 150 mW 200 mA 　 　 silicone resin request
LED385-66-60 385 nm 150 mW 240 mA 　 　 silicone resin request
LED395-66-60 395 nm 250 mW 240 mA 　 　 silicone resin request
LED405-66-60 405 nm 310 mW 240 mA 　 　 　 request
LED420-66-60 420 nm 550 mW 400 mA 　 　 　 request
LED430-66-60 430 nm 550 mW 400 mA 　 　 　
LED435-66-60 435 nm 550 mW 400 mA 　 　 　
LED450-66-60 450 nm 40 mW 240 mA 　 　 　
LED470-66-60 470 nm 120 mW 240 mA 　 　 　
LEDW47-66-60 white 13 cd 240 mA 　 　 　
LED505-66-60 505 nm 60 mW 240 mA 　 　 　
LED525-66-60 525 nm 120 mW 240 mA 　 　 　
LED530-66-60 530 nm 120 mW 240 mA 　 　 　 request
LED550-66-60 550 nm 210 mW 240 mA 　 16.5 V 　 request
LED565-66-60 565 nm 8 mW 240 mA 　 　 　
LED570-66-60 570 nm 36 mW 240 mA 　 　 　
LED590-66-60 590 nm 60 mW 240 mA 　 　 　
LED620-66-60 620 nm 120 mW 240 mA 　 　 　
LED630-66-60 630 nm 140 mW 240 mA 　 　 　
LED645-66-60 645 nm 120 mW 240 mA 　 　 　
LED660-66-60 660 nm 180 mW 240 mA 　 　 　
LED660N-66-60 660 nm 2.4 W 1.2 A 　 　 　
LED670-66-60 670 nm 450 mW 240 mA 　 　 　
LED680-66-60 680 nm 300 mW 240 mA 　 　 　
LED690-66-60 690 nm 300 mW 240 mA 　 　 　
LED700-66-60 700 nm 300 mW 240 mA 　 　 　
LED720-66-60 720 nm 550 mW 600 mA 　 　 　
LED735-66-60 735 nm 1.0 W 600 mA 　 　 　
LED740-66-60 740 nm 1.0 W 600 mA 　 　 　
LED750-66-60 750 nm 1.0 W 600 mA 　 　 　
LED760-66-60 760 nm 1.0 W 600 mA 　 　 　
LED780-66-60 780 nm 1.0 W 600 mA 　 　 　
LED790-66-60 790 nm 1.0 W 600 mA 　 　 　
LED810-66-60 810 nm 1.0 W 600 mA 　 　 　
LED830-66-60 830 nm 1.0 W 600 mA 　 　 　
LED840-66-60 840 nm 　 　 　 　 　 request
LED850-66-60 850 nm 1.5 W 800 mA 　 　 　
LED870-66-60 870 nm 1.5 W 800 mA 　 　 　
LED880-66-60 880 nm 1.5 W 800 mA 　 　 　
LED890-66-60 890 nm 0.85 W 800 mA 　 　 　
LED910-66-60 910 nm 600 mW 800 mA 　 　 　
LED940-66-60 940 nm 1.2 W 0.8 A 　 　 　
LED950-66-60 950 nm 　 　 　 　 　 request
LED970-66-60 970 nm 500 mW 800 mA 　 　 　
LED980-66-60 980 nm 150 mW 600 mA 　 　 　
LED990-66-60 990 nm 100 mW 600 mA 　 6.5 V 　 request
LED1050-66-60 1050 nm 120 mW 600 mA 　 　 　
LED1070-66-60 1070 nm 60 mW 600 mA 　 　 　
LED1200-66-60 1200 nm 60 mW 600 mA 　 　 　
LED1300-66-60 1300 nm 140 mW 600 mA 　 　 　
LED1450-66-60 1450 nm 60 mW 600 mA 　 　 　
LED1550-66-60 1550 nm 60 mW 600 mA 　 　 　

High power LED array, TO-66 package, containing 12 power LED chips

4 x 3 LED matrix

wavelength: white, others on request

lens and heat sink available

LEDxxx-66-12100 Wavelength Po Iop φ Uf Note Data sheet
LED47W-66-12100 white 　 　 +/-60° 　 　 request

High power LED array, TO-66 package, containing 16 power LED chips

flat glass window and guard ring, 4 x 4 LED matrix

wavelength: 360 nm - 415 nm, others on request

lens and heat sink available

LEDxxx-66-16100-110 Wavelength Po Iop φ Uf Note Data sheet
LED360-66-16100-100 360 nm 　 　 　 　 　 request
LED365V-66-16100-100 365 nm 4 W 2 A +/-52° 14 V 　 request
LED385-66-16100-110 385 nm 170 mW 200 mA +/-60° 13 V 　
LED395-66-16100-110 395 nm 1 W 1 A +/-60° 15 V 　
LED415-66-16100-110 415 nm 　 　 　 　 　 request

High power LED array, TO-66 package, containing 16 power LED chips

silicone/epoxy resin, 4 x 4 LED matrix

wavelength: 385 nm - 950 nm, others on request

lens and heat sink available

LEDxxx-66-16100 Wavelength Po Iop φ Uf Note Data sheet
LED385-66-16100 385 nm 　 　 　 　 silicone resin request
LED415-66-16100 415 nm 　 　 　 　 　 request
LED470-66-16100 470 nm 420 mW 1.2 A +/-60° 14 V 　
LED47W-66-16100 white 80 lm 1.2 A +/-60° 13 V 　
LED660N-66-16100 660 nm 2.8 W 1.4 A +/-60° 9.2 V 　 request
LED680-66-16100 680 nm 450 mW 1.4 A +/-60° 7.7 V 　
LED720-66-16100 720 nm 550 mW 1.4 A +/-60° 7.4 V 　
LED730-66-16100 730 nm 600 mW 1.4 A +/-60° 7.4 V 　
LED735-66-16100 735 nm 　 　 　 　 　 request
LED740-66-16100 740 nm 450 mW 1.4 A +/-60° 5.5 V 　
LED780-66-16100 780 nm 2.8 W 3.2 A 　 8.0 V 　 request
LED790-66-16100 790 nm 　 　 　 　 　 request
LED810-66-16100 810 nm 900 mW 1.4 A +/-60° 6.8 V 　 request
LED840-66-16100 840 nm 　 　 　 　 　 request
LED850-66-16100 850 nm 　 　 　 　 　 request
LED870-66-16100 870 nm 　 　 　 　 　 request
LED920-66-16100 920 nm 650 mW 2.0 A +/-60° 5.5 V 　
LED940-66-16100 940 nm 　 　 　 　 　 request
LED950-66-16100 950 nm 750 mW 2.0 A +/-60° 5.5 V 　

High power LED array, TO-3 package, containing 4 power LED chips

epoxy resin, 2 x 2 LED matrix

wavelength: 385 nm - 940 nm

-> PHASE OUT

TO3A4 Wavelength Po Iop φ Uf Note Data sheet
TO3A4-H390-180 382-390 nm 200 mW 1.4 A +/-90° 4.1 V 　
TO3A4-HU-180 395-405 nm 65 mW 1.4 A +/-90° 4.5 V 　
TO3A4-HB-180 470 nm 90 mW 1.4 A +/-90° 4.4 V 　
TO3A4-HW-180 white 70 cd 1.4 A +/-90° 4.1 V 　
TO3A4-HY-180 590 nm 160 mW 1.4 A +/-90° 2.6 V 　
TO3A4-HR-180 630 nm 110 mW 1.4 A +/-90° 2.5 V 　
TO3A4-H650-180 650 nm 130 mW 1.4 A +/-90° 2.5 V 　
TO3A4-H660-180 660 nm 260 mW 1.2 A +/-90° 1.9 V 　
TO3A4-H670-180 670 nm 200 mW 1.4 A +/-90° 2.5 V 　
TO3A4-H680-180 680 nm 260 mW 1.2 A +/-90° 1.9 V 　
TO3A4-H690-180 690 nm 260 mW 1.2 A +/-90° 1.9 V 　
TO3A4-H720-180 720 nm 260 mW 1.2 A +/-90° 1.9 V 　
TO3A4-H740-180 740 nm 260 mW 1.2 A +/-90° 1.9 V 　
TO3A4-H760-180 760 nm 260 mW 1.2 A +/-90° 1.9 V 　
TO3A4-H770-180 770 nm 260 mW 1.2 A +/-90° 1.9 V 　
TO3A4-H780-180 780 nm 270 mW 1.4 A +/-90° 2.2 V 　
TO3A4-H810-180 810 nm 260 mW 1.2 A +/-90° 1.9 V 　
TO3A4-H820-180 820 nm 260 mW 1.2 A +/-90° 1.9 V 　
TO3A4-H880-180 880 nm 200 mW 1.2 A +/-90° 1.9 V 　
TO3A4-H890-180 890 nm 200 mW 1.4 A +/-90° 1.9 V 　
TO3A4-H905-180 905 nm 150 mW 1.2 A +/-90° 1.7 V 　
TO3A4-H940-180 940 nm 150 mW 1.2 A +/-90° 1.7 V 　

Emitter High Power LEDs

RGB High Power LEDs

High power RGB LED series, emitter type package, 6 pins: 3 x anode, 3 x cathode, viewing angle typ. 80°

A6-RGB Wavelength Po Iop φ Uf Note Data sheet
　 A6-RGB-1.5 620/515/460 nm 5/12/4 lm 3 x 150 mA +/- 40° 　 3 x 500 mW electrical power
　 A6-RGB-3 620/515/460 nm 23/44/12 lm 3 x 350 mA +/- 40° 　 3 x 1 Watt electrical power
　 A6-RGB-9 620/515/460 nm 50/60/22 lm 3 x 700 mA +/- 40° 　 3 x 3 Watt electrical power

High power RGB LED, emitter package

AR Wavelength Po Iop φ Uf Note Data sheet
　 AR58G05B24BC-A 620/515/460 nm 15/15.4/6 lm 3 x 350 mA +/- 40° 　 3 W, common anode request
　 AR58G05B24BC-C 620/515/460 nm 15/15.4/6 lm 3 x 350 mA +/- 40° 　 3 W, common cath. request
　 AR57G62B66BC-C 620/515/460 nm 4.5/10/3 lm 3 x 150 mA +/- 40° 　 1.5 W request

Hexagonal High Power LEDs

RGB high power LEDs

High power RGB LED, hexagonal aluminium PCB package

H4-AR Wavelength Po Iop φ Note Data sheet
　 H4-AR57G62B66BC-C 620/515/460 nm 4.5/10/3 lm 3 x 150 mA +/- 40° 3 x 500 mW electrical power, common - request
　 H4-AR58G05B24BC-A 620/515/460 nm 15/15.4/6 lm 3 x 350 mA +/- 40° 3 x 1 Watt electrical power, common + request
　 H4-AR58G05B24BC-C 620/515/460 nm 15/15.4/6 lm 3 x 350 mA +/- 40° 3 x 1 Watt electrical power, common - request

High power RGB LED series, hex type package, 6 pins, 3 x anode, 3 x cathode, viewing angle typ. 80°

H6-RGB Wavelength Po Iop φ Note Data sheet
　 H6-RGB-1.5 620/515/460 nm 5/12/4 lm 3 x 150 mA +/- 40° 3 x 500 mW electrical power
　 H6-RGB-3 620/515/460 nm 23/45/12 lm 3 x 350 mA +/- 40° 3 x 1 Watt electrical power

SMD LEDs

High power 4-chip UV-LED series hermetic ceramic SMD package, size: 6.8 x 6.8 x 2.1 mm, glass window

UVLED Wavelength Po Iop φ Uf Note Data sheet
　 UVLED-365-1200-SMD 365 nm 1200 mW 500 mA 120° 15.0 V 　 request
　 UVLED-385-1200-SMD 385 nm 1200 mW 500 mA 120° 14.8 V 　 request

Ultra high power 4-chip UV-LED series in aluminium SMD package with quartz glass window and integrated zener diode ESD protection size: 6.3 x 6.3 x 1.4 mm

UVLED Wavelength Po Iop φ Uf Note Data sheet
　 CUN6AF4A 365 nm 2350 mW 1000 mA 110° 7.8 V 　
　 CUN8AF4A 385 nm 3750 mW 1000 mA 110° 7.4 V 　
　 CUN9AF4A 395 nm 3750 mW 1000 mA 110° 7.4 V 　

High power 4-chip chip UV-LED series

Hermetic ceramic SMD package, size: 4.2 x 4.2 x 1.3 mm

UV resistant silicone mold, integrated zener diode ESD protection

low operation current

XHL Wavelength Po Iop φ Uf Note Data sheet
　 XHL-375-SD 375 nm 95 mW 80 mA 125° 　 　
　 XHL-400-SD 400 nm 150 mW 80 mA 125° 　 　 request

High power 25-chip UV-LED series

Hermetic ceramic SMD package, size: 19.9 x 7.9 mm

UV resistant silicone mold

XML Wavelength Po Iop φ Uf Note Data sheet
　 XML-365-SD 365 nm 200 mW 300 mA 135° 　 　
　 XML-375-SD 375 nm 900 mW 300 mA 140° 　 　
　 XML-385-SD 385 nm 1000 mW 300 mA 140° 　 　
　 XML-400-SD 400 nm 1500 mW 300 mA 140° 　 　

High power LED array

AlN ceramic package with 60 chips onboard

352 nm - 1550 nm available, clear silicone mold window, UV resistant

size: 18 x 14 x 1.5 mm

SMAL Wavelength Po Iop φ Uf Note Data sheet
　 SMAL415 　 　 　 　 　 　 request
　 SMAL670 　 　 　 　 　 　 request
　 SMAL680 　 　 　 　 　 　 request
　 SMAL720 　 　 　 　 　 　 request
　 SMAL735 735 nm 400 mW 600 mA 　 　 　 request
　 SMAL780 780 nm 400 mW 600 mA 　 　 　 request
　 SMAL850 850 nm 1.1 W 800 mA 　 　 　
　 SMAL870 870 nm 650 mW 800 mA 　 　 　 request
　 SMAL890 　 　 　 　 　 　 request
　 SMAL910 　 　 　 　 　 　 request
　 SMAL940 940 nm 380 mW 800 mA 　 　 　 request
　 SMAL970 　 　 　 　 　 　 request
　 SMAL1050 1050 nm 130 mW 800 mA 　 　 　
　 SMAL1600 　 　 　 　 　 　 request

High power SMB series, multi chip solution, power chip technology, chip size 1 x 1 mm², mounted on copper heat sink into a hermetic ceramic SMD package, size: 5.0 x 5.0 mm, silicone / epoxy mold

365 nm - 970 nm available

-> PHASE OUT

Wavelength Po Iop φ Uf Note Data sheet
　 SMB3W-420/525/640-I 420/525/640 nm 115/60/110 mW 300 mA 124° < 3.5 V triple LED, isolated chip

High power SMD LED series, If: 3 x 20 mA, +/-60° angle, 3 chips inside, 6.0 x 5.0 mm base, 1.70 mm height

-> PHASE OUT

Wavelength Po Iop φ Uf Note Data sheet
　 WTFH01DS white 3 cd 3 x 20 mA +/- 60° 3.2 V 　 request
　 BNFH01TS 470 nm 510 mcd 3 x 20 mA +/- 60° 3.6 V 　 request
　 GNFH01TS 523 nm 1.3 cd 3 x 20 mA +/- 60° 3.2 V 　 request
　 OMFH01TS 626 nm 540 mcd 3 x 20 mA +/- 60° 2.3 V 　 request

ELJ series

6 chips, Jumbo package, M10 x 1.5 mm thread package

ELJ Wavelength Po Iop φ Uf Note Data sheet
　 ELJ-595-225B 590 nm 12 mW 100 mA 15° 　 　
　 ELJ-630-215 630 nm 58 mW 100 mA 12° 　 　 request
　 ELJ-810-228B 810 nm 225 mW 250 mA 20° 　 　
　 ELJ-880-228B 880 nm 260 mW 250 mA 20° 　 　
　 ELJ-920-228B 920 nm 260 mW 250 mA 20° 　 　
　 ELJ-950-228B 950 nm 170 mW 250 mA 20° 　 　

FAT series

6 power chips inside, jumbo package, M18 x 1 mm thread mounting, tr/tf 80/100 ns

Wavelength Po Iop φ Uf Note Data sheet
　 FAT-655-40 655 nm 150 mW 250 mA 40° 12.9 V 　 request
　 FAT-685-40 685 nm 250 mW 250 mA 40° 12.4 V 　 request
　 FAT-800-40 800 nm 350 mW 350 mA 40° 10 V 　 request
　 FAT-870-40 870 nm 350 mW 350 mA 40° 10 V 　 request

Aluminium Plate Package

High Power LED array, metal PCB package with 12 parallel 1 mm² power chips, 30°, 60° or 120° available, size: 72 x 32 mm²

-> PHASE OUT

RLT-MIL Wavelength Po Iop φ Uf Note Data sheet
　 RLT-MIL470-12W-30 white 　 4.2 A 30° 4.7 V 　 request
　 RLT-MIL505-12C-30 505 nm 12 x 18 mW 4.2 A 30° 4.5 V 　 request
　 RLT-MIL590-12A-30 590 nm 12 x 10 mW 4.2 A 30° 3.3 V 　 request
　 RLT-MIL630-12R-30 630 nm 12 x 24 mW 4.2 A 30° 3.3 V 　 request
　 RLT-MIL780-12I-30 780 nm 12 x 100 mW 4.2 A 30° 2.5 V 　 request
　 RLT-MIL810-12I-30 810 nm 12 x 150 mW 4.2 A 30° 2.5 V 　 request
　 RLT-MIL850-12I-30 850 nm 12 x 160 mW 4.2 A 30° 2.5 V 　 request
　 RLT-MIL880-12I-30 880 nm 12 x 120 mW 4.2 A 30° 2.5 V 　 request
　 RLT-MIL940-12I-30 940 nm 12 x 120 mW 4.2 A 30° 2.3 V 　 request

High power LED array, 3 x 3 power LED chips on aluminium plate, size 38.3 x 39.7 mm², electrical power typ. 10 W

-> PHASE OUT

Wavelength Po Iop φ Uf Note Data sheet
　 RLT-BA1000-02 470 nm 100 lm 1.05 A 60° 10.2 V 　 request
　 RLT-GA1000-02 525 nm 140 lm 1.05 A 60° 10.5 V 　 request

Metal Plate Package

High power LED array for illumination purposes, five high power LEDs connected in series. Chip-assembly covered with plastic lenses. Mounted on a compact FR4 board with copper-plated rear side to provide efficient heat dissipation. Applications: sensors, illumination for IR-cameras, security, nightvision, etc., 24 x 8 x 5.5 mm³

ELM Wavelength Po Iop φ Uf Note Data sheet
　 ELM-875-8x24-2 870 nm 720 mW 500 mA 25° 7.0 V 　 request
　 ELM-910-927 910 nm 390 mW 500 mA 20° 　 　 request

High power LED arrays for illumination purposes, 22 x 60 mm², 2 x 10 emitters

-> PHASE OUT

ELA Wavelength Po Iop φ Uf Note Data sheet
　 ELA-660-22x60 660 nm 75 mW 　 　 　 　 request
　 ELA-810-22x60 810 nm 1 W 　 　 　 　 request
　 ELA-880-22x60 880 nm 1 W 　 　 　 　 request
　 ELA-920-22x60 920 nm 1 W 　 　 　 　 request

35L3 series

High power LED array, aluminium plate package with 3 x 1 mm² power chips onboard. LED chips connected in parallel. Size: 35 mm diameter

35L3 Wavelength Po Iop φ Uf Note Data sheet
　 35L3-HW-60 white 20 cd 1.05 A 60° 4.0 V 　 request
　 35L3-HU-60 395-405 nm 3 x 16 mW 1.05 A 60° 4.0 V 　 request
　 35L3-HB-60 470 nm 3 x 18 mW 1.05 A 60° 4.0 V 　 request
　 35L3-HC-60 505 nm 3 x 17 mW 1.05 A 60° 4.0 V 　 request
　 35L3-HG-60 525 nm 3 x 15 mW 1.05 A 60° 3.8 V 　 request
　 35L3-HY-60 590 nm 3 x 10 mW 1.05 A 60° 2.8 V 　 request
　 35L3-HR-60 625 nm 3 x 22 mW 1.05 A 60° 2.8 V 　 request
　 35L3-H850-60 850 nm 　 1.50 A 60° 2.5 V 　 request
　 35L3-H880-60 880 nm 3 x 45 mW 1.95 A 60° 2.4 V 　 request
　 35L3-H940-60 940 nm 3 x 45 mW 2.40 A 60° 2.2 V 　 request

C20C3 series

High power RGB LED, aluminium disk package, diameter 20 mm, diverse wavelengths, power chip technology 1 x 1 mm² chip size, 3 x 1 Watt electrical power, other wavelengths on request

-> PHASE OUT

C20C3 Wavelength Po Iop φ Uf Note Data sheet
C20C3-HYGB-60 585/515/460 nm 8/9/3 lm 3 x 350 mA 60° 　 　 request
C20C3-HYRB-60 585/620/460 nm 8/6/3 lm 3 x 350 mA 60° 　 　 request

C38A8 series

High power LED array, aluminium plate package, 8 x 1 mm² power chips onboard, total 8 Watt electrical power, size: 38 mm diameter

-> PHASE OUT

C38A8 Wavelength Po Iop φ Vf Note Data sheet
C38A8-HU-30 395-405 nm 8 x 16 mW 4 x 350 mA 30° 4 x typ. 7.6 V 　 request
C38A8-HB-30 470 nm 8 x 4.5 lm 4 x 350 mA 30° 4 x typ. 7.0 V 　 request
C38A8-HC-30 505 nm 8 x 10 lm 4 x 350 mA 30° 4 x typ. 7.2 V 　 request
C38A8-HY-30 590 nm 8 x 10 lm 4 x 350 mA 30° 4 x typ. 4.1 V 　 request
C38A8-H850-30 850 nm 8 x 40 mW 4 x 300 mA 30° 4 x typ. 2.9 V 　 request
C38A8-H880-30 880 nm 8 x 40 mW 4 x 300 mA 30° 4 x typ. 2.8 V 　 request

10 mm epoxy

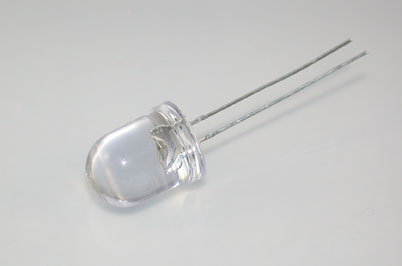

High power LED series, 4 parallel chips inside, If: 80 mA, 10 mm clear epoxy

Wavelength Po Iop φ Uf Note Data sheet
　 10W43-HCA-H white 13-15 cd 80 mA 60° 4.0 V 　 request
　 10B43-HCA-H 470 nm 8-10 cd 80 mA 60° 4.0 V 　 request
　 10C43-HCA-H 505 nm 9-12 cd 80 mA 60° 4.0 V 　 request
　 10G43-HCA-H 525 nm 15-18 cd 80 mA 60° 3.8 V 　 request
　 10Y43-HCA-H 590 nm 7-8 cd 80 mA 60° 2.2 V 　 request

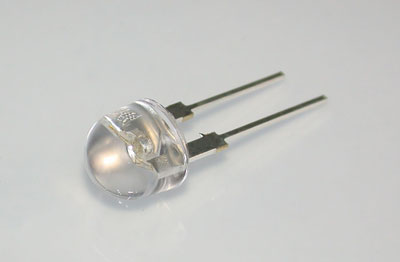

High power LED series, 4 parallel chips inside, If: 80 mA, 10 mm clear epoxy, copper lead frame

Wavelength Po Iop φ Uf Note Data sheet
　 RLS-10W2P4D white 22 cd 80 mA 8-10° 3.4 V 　 request
　 10W4DHCB-H white 13-15 cd 80 mA 180° 4.0 V 　 request
　 10B4DHCB-H 470 nm 8-10 cd 80 mA 180° 4.0 V 　 request
　 10C4DHCB-H 505 nm 9-11 cd 80 mA 180° 4.0 V 　 request
　 10G4DHCB-H 525 nm 15-18 cd 80 mA 180° 3.8 V 　 request
　 10Y4DHCB-H 590 nm 8-9 cd 80 mA 180° 2.2 V 　 request
　 10R4DHCB-H 625 nm 7-8 cd 80 mA 180° 2.2 V 　 request

Super Flux LEDs

High power LED series, 4 parallel chips inside, If: 80 mA, clear epoxy package, 7.6 x 7.6 mm² base

Wavelength Po Iop φ Uf Note Data sheet
　 5W4S2HCA white 5-8 cd 80 mA +/-90° 4.0 V 　 request
　 5B4S2HCA 470 nm 3-6 cd 80 mA +/-90° 4.0 V 　 request
　 5G4S2HCA 528 nm 7-10 cd 80 mA +/-90° 4.0 V 　 request
　 5Y4S2HCA 590 nm 3-6 cd 80 mA +/-90° 2.2 V 　 request
　 5R4S2HCA 622 nm 3-6 cd 80 mA +/-90° 2.2 V 　 request

Multi Watt LED Engines

ULTRA high power LED light engines

  • • USB/serial PC Interface for monitoring
  • • up to 1000lm
  • • thermal protection system
  • -> PHASE OUT
  • • software included
  • • ready to operate
Wavelength P Iop φ 　 Data sheet
　 UNO18 AIR LE WHITE white 18 W 　 　 　 request
　 UNO18 AIR LE NIR 870 nm 18 W 　 　 　 request

OPTICS FOR HIGH POWER LEDS

Collimating Optics

Diverse collimating optics for high power LEDs, material: polycarbonate, designed for Luxeon (hexagonal plate)

Suitable for: Cree, Seoul, Avago, Luxeon, Roithner compatible LEDs.

　 Note Data sheet
10048 4 degree half angle optic
10049 4 x 25 degree half angles optic
10003 6 degree half angle optic
10003/15 15 degree half angle optic
10003/25 25 degree half angle optic
10003/L25 6 x 25 degree half angles line optic

Holders for Collimating Optics

Diverse lens holders for 1, 3 and 5 watt power LEDs

Suitable for: Cree, Seoul, Avago, Luxeon, Roithner compatible LEDs.

　 Note Data sheet
10012 round, black, for 1 W LED
10026 hexagonal, black, for 1 W LED
10043 hexagonal, black, for 3/5 W LED
10045 hexagonal, clear, for 3/5 W LED
10065 4° optic holder, white, 17.15 x 22.7 mm, for 1 W LED
10076 4° optic holder, black, 16.15 x 21.7 mm, for 3 W/5 W LED
10077 4° optic holder, white 16.15 x 21.7 mm, for 3 W/5 W LED

Narrow Beam Optics

Collimating catadioptic lens for high power LEDs, double reflection system, generates a +/- 2° ultra narrow beam, ideal for far distance and spot illumination. Suitable for: Cree, Seoul, Avago, Luxeon, Roithner compatible LEDs.

Material: polycarbonate, efficiency ~70°

　 Note Data sheet
10158 2 degree half angle spot optic, diameter 60 mm, height 11mm, polycarbonate
10145 spreader lens for 10158 optic request
10146 holder for 10158 optic

Fiber Coupling Optics

Special focusing optic designed for coupling light of high power LEDs into a 5-12 mm NA 0.5 fiber bundle. Material: polycarbonate

Suitable for: Cree, Seoul, Avago, Luxeon, Roithner compatible LEDs.

　 Note Data sheet
10034 　

Reflectors

Metalized reflectors, material polycarbonate. Available for power LEDs with lambertian lens design and for Acriche LEDs. Recommended optic for narrow beam generation

Suitable for: Cree, Seoul, Avago, Luxeon, Roithner compatible LEDs.

　 Note Data sheet
CLP17CR 6° reflector for lambertian LED, metalized polycarbonate 17.5 x 10.7 mm [DxH]
CLP20CR 6° reflector for lambertian LED, metalized polycarbonate 20.5 x 15.7 mm [DxH]
CLP23CR 20° reflector for Acriche LED, metalized polycarbonate 23.0 x 13.3 mm [DxH]
CLP28ACR 12° reflector for Acriche LED, metalized polycarbonate 27.5 x 18.3 mm [DxH]

ACCESSORIES FOR TO-66 PACKAGE

Heat Sinks for TO-66 Package

Part No. Material Size Weight Note Data sheet
Heat Sink 47x10 black aluminium Ø47.5 x 10 mm 27 g 　 request
Heat Sink 47x20 black aluminium Ø47.5 x 20 mm 54 g 　 request
　

Thermal Grease

Recommended for high power LEDs

Part No. Material Weight Note Data sheet
Thermal Grease ST-700 　 1 g 10 % AgOx, TC: > 7.5 W/mK request
　

Optics for TO-66 Package

Part No. Material φ Aperture focal length Size Weight Note Data sheet
LED-OPTIC-12 aspheric glass lens ±30° 12 mm 12.0 mm 　 　 　 Data sheet
LED-OPTIC-18 aspheric glass lens ±30° 18 mm 13.5 mm 　 　 　 Data sheet
LENS-13 plastic lens/reflector ±15° 　 　 　 　 　

ACCESSORIES FOR SMB SERIES

PCB boards for SMB Series

Get your SMB LEDs mounted easily with those PCB boards!

Available for SMB1W and SMB1N series

Part No. Material Size Note Data sheet
SMB1W-PCB Cu + Au plate 17 x 23 mm PCB for SMB1W series
SMB1N-PCB Cu + Au plate 17 x 23 mm PCB for SMB1N series
　

Taped Lens for SMB Series

Optical grade PMMA with high UV and temperature resistance (105°C)

Part No. Material Size Note Data sheet
SMB-LENS PMMA Ø16.1 x 10.1 m 10° FWHM

DRIVERS FOR HIGH POWER LEDS

Current driver for high power LEDs, supply voltage 95 .. 240 VAC, 50..60 Hz, constant current output: 350 mA, size: 40 x 42 x 21 mm³

　 Po Iop Note Data sheet
PTDCC/3/350 3 W 350 mA max. 3 x 1 W LED in series

Current driver for high power LEDs, DC supply voltage 9 .. 24 VDC, constant current output: 350 mA, size: 40 x 42 x 21 mm³

　 Po Iop Note Data sheet
PTDCC/350/12-24 3 W 350 mA max. 3 x 1 W LED in series, Vin: 9-24 VDC request

Current driver for high power LEDs, AC supply voltage, DC constant current output, size: 34 x 115 x 19 mm³

　 Po Iop Note Data sheet
PTDCC/10/350 10 W 350 mA max. 8 .. 11 pcs. 1W LED in series
PTDCC/10/500 10 W 500 mA max. 3 pcs. 3W LED in series
PTDCC/10/700 10 W 700 mA max. 2 pcs. 5W LED in series

Current driver for high power LEDs, AC supply voltage, DC constant current output, size: 38 x 123 x 21 mm³

　 Po Iop Note Data sheet
PTDCC/15/350 17 W 350 mA max. 12 .. 13 pcs. 1W LED in series, Vin: 220-240 VAC
PTDCC/15/700 17 W 700 mA max. 5 .. 6 pcs. 3W LED in series, Vin: 220-240 VAC

Current driver for high power LEDs, supply voltage 95 .. 240 VAC, constant current output, size: 22 x 144.5 x 22 mm³

　 Po Iop Note Data sheet
PTDCCL/10/350 10 W 350 mA max. 8 .. 11 pcs. 1W LED in series
PTDCCL/10/700 10 W 700 mA max. 2 pcs. 5W LED in series


更多产品请看本公司产品专用销售网站:欢迎索取免费详细资料、设计指南和光盘 ；产品凡多，未能尽录，欢迎来电查询。

中国传感器科技信息网：http://www.sensor-ic.com/SSTKJ工控安防网：http://www.pc-ps.net/

SSTKJ电子 元器件网：http://www.sunstare.com/消费电子产品网://www.icasic.com/

科技产品网://www.sunstars.cn/传感器销售热线：

    地址：深圳市福田区福华路福庆街鸿图大厦9732室

    电话：0755-83376489 83376549 83607652 83370250   83370251   83376549

    传真：0755-83376182  （0）13902971329  MSN: xjr5@163.com

    邮编：518033   E-mail:szss20@163.com     QQ: 195847376

    深圳赛格展销部：深圳华强北路赛格电子市场9583号 电话：0755-83665529   13823648918

    技术支持: 0755-83394033 13501568376

    北京分公司：北京海淀区知春路132号中发电子大厦3097号               TEL：  18927445855  13823791822  FAX：010-62543996

    上海分公司：上海市北京东路668号上海賽格电子市场地下一层D25号                TEL：  56703037  13823676822  FAX：021-56703037

    西安分公司：西安高新开发区20所(中国电子科技集团导航技术研究所)  　      西安劳动南路88号电子商城二楼D23号

            TEL：  18926764199  FAX:029-77678271
