Laser Diodes Drivers TECs Optics Accessories
　
Item # Wavelength Po Package MPD Pinout Note Data sheet
RLTCM-2307D 2.3 µm 7.5 mW 5.6 mm x 　 　
RLTCM-2310D 2.3 µm 10 mW 5.6 mm x 　 　
RLTCM-2325D 2.3 um 25 mW 5.6 mm x 　 　 request

DFB AND FP LASER DIODES

  • DFB Laser Diodes
  • FP Laser Diodes
  • DFB QCLs
  • FP QCLs

DFB Laser Diodes

DFB laser diodes show unique device performance to meet the requirements of many customers. Their high side mode suppression ratio (SMSR) and high spectral purity make them perfectly suited for applications like gas sensing. Mode hop free DFB emission with a high side mode suppression ratio around 35 dB is guaranteed for the device in the entire specified temperature and current range of operation.

Customer specific facet coating and customer specific wavelengths are available on request.

Item # Wavelength Power CT CI Note Data sheet
DFB-760-10 760 nm 10 mW 　 　 　 request
DFB-852-30 852 nm 50 mW 　 　 　 request
DFB-935-50 935 nm 50 mW 　 　 　
DFB-1368-5 1368 nm 5 mW 　 　 　 request
DFB-1654-5 1654 nm 5 mW 　 　 　 request
DFB-1742-5 1742 nm 5 mW 　 　 　 request
DFB-1805-5 1805 nm 5 mW 　 　 　
DFB-1877-5 1877 nm 5 mW 　 　 　 request
DFB-1910-5 1910 nm 5 mW 　 　 　
DFB-2004-3 2004 nm 3 mW 　 　 　
DFB-2050-3 2050 nm 3 mW 　 　 　
DFB-2330-3 2330 nm 3 mW 　 　 　
DFB-2640-2 2640 nm 2 mW 　 　 　
DFB-2735-2 2735 nm 2 mW 　 　 　

Package options:

Option A: TO-5 with TEC and thermistor

Option B: TO-8 with TEC and thermistor

Option C: TO-8 with TEC and thermistor with cap and ZnSe window

Option D: butterfly package (760 nm up to 2.3 um) with TEC and thermistor

Option E: C-mount

Option F: TO-5 no cap

FP Laser Diodes

FP laser diodes are available in a wide spectral range from 750 nm up to 3000 nm. Typical applications range from the use in external cavity optical systems up to range finding systems and high resolution analytical sensing systems.

Customer specific facet coating and customer specific wavelengths are available on request.

Item # Wavelength Power CT CI Note Data sheet
FP-760-22 760 nm 22 mW 　 　 　 request
FP-852-45 852 nm 45 mW 　 　 　
FP-935-75 935 nm 75 mW 　 　 　 request
FP-1368-7 1368 nm 7 mW 　 　 　 request
FP-1654-7 1654 nm 7 mW 　 　 　
FP-1742-7 1742 nm 7 mW 　 　 　 request
FP-1805-7 1805 nm 7 mW 　 　 　 request
FP-1877-7 1877 nm 7 mW 　 　 　 request
FP-1910-7 1910 nm 7 mW 　 　 　
FP-2004-4 2004 nm 4 mW 　 　 　 request
FP-2050-4 2050 nm 4 mW 　 　 　 request
FP-2330-4 2330 nm 4 mW 　 　 　
FP-2640-3 2640 nm 3 mW 　 　 　 request
FP-2735-3 2735 nm 3 mW 　 　 　
FP-2760-3 2760 nm 3 mW 　 　 　 request

Package options:

Option A: TO-5 with TEC and thermistor

Option B: TO-8 with TEC and thermistor

Option C: TO-8 with TEC and thermistor with cap and ZnSe window

Option D: butterfly package (760 nm up to 2.3 um) with TEC and thermistor

Option E: C-mount

Option F: TO-5 no cap

DFB Quantum Cascade Laser Diodes

DFB quantum cascade laser diodes (DFB-QCL), 5.6 mm or 9.0 mm as standard package, high side mode suppression, high spectral purity, pulsed mode operation at room temperature.

Special gas sensing wavelengths on request

Item # Wavelength Power CT CI Note Data sheet
DFB-QCL-5250-100 5250 nm 100 mW 　 　 　 request
DFB-QCL-7350-20 7350 nm 20 mW 　 　 　 request
DFB-QCL-8450-30 8450 nm 30 mW 　 　 　 request
DFB-QCL-8770-10 8770 nm 10 mW 　 　 　 request
DFB-QCL-9120-100 9120 nm 100 mW 　 　 　
DFB-QCL-11600-20 11600 nm 20 mW 　 　 　 request
DFB-QCL-13150-100 13150 nm 100 mW 　 　 　 request
DFB-QCL-13500-80 13500 nm 80 mW 　 　 　 request
DFB-QCL-13900-1 13900 nm 1 mW 　 　 　 request

Package options:

Option A: TO-5 with TEC and thermistor

Option B: TO-8 with TEC and thermistor

Option C: TO-8 with TEC and thermistor with cap and ZnSe window

Option D: butterfly package (760 nm up to 2.3 um) with TEC and thermistor

Option E: C-mount

Option F: TO-5 no cap

FP Quantum Cascade Laser Diodes

FP quantum cascade laser diodes (FP-QCL), 5.6 mm or 9.0 mm as standard package, pulsed mode operation at room temperature.

Special gas sensing wavelengths on request

Item # Wavelength Power CT CI Note Data sheet
FP-QCL-5250-100 5250 nm 100 mW 　 　 　 request
FP-QCL-7350-20 7350 nm 20 mW 　 　 　 request
FP-QCL-8450-30 8450 nm 30 mW 　 　 　 request
FP-QCL-8770-10 8770 nm 10 mW 　 　 　 request
FP-QCL-9120-100 9120 nm 100 mW 　 　 　
FP-QCL-11600-20 11600 nm 20 mW 　 　 　 request
FP-QCL-13150-100 13150 nm 100 mW 　 　 　 request
FP-QCL-13500-80 13500 nm 80 mW 　 　 　 request
FP-QCL-13900-1 13900 nm 1 mW 　 　 　 request

Package options:

Option A: TO-5 with TEC and thermistor

Option B: TO-8 with TEC and thermistor

Option C: TO-8 with TEC and thermistor with cap and ZnSe window

Option D: butterfly package (760 nm up to 2.3 um) with TEC and thermistor

Option E: C-mount

Option F: TO-5 no cap

FIBER COUPLED LASER DIODES

  • Fiber Coupled LD
  • Dual-Wavelength

Related products: Fiber Optic Collimator Lenses Ι Drivers For Laser Diodes

405 nm - 445 nm
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL405-015-4 405 +/-5 nm 15 mW sm 4 µm FC, ST, SMA-905 Coaxial PD optional
SPL405-015-4P 405 +/-5 nm 15 mW sm 4 µm PM FC, ST, SMA-905 Coaxial 　
SPL405-045-4 405 +/-5 nm 45 mW sm 4 µm FC, ST, SMA-905 Coaxial PD optional
SPL405-055-4P 405 +/-5 nm 55 mW sm 4 µm PM FC, ST, SMA-905 Coaxial PD optional
SPL405-10-50M-PD 405 +/-5 nm 10 mW mm 50 µm FC, ST, SMA-905 Coaxial 　 request
SPL405-50-50M 405 +/-5 nm 50 mW mm 50 µm FC, ST, SMA-905 Coaxial PD optional
SPL405-100-50M 405 +/-5 nm 100 mW mm 50 µm FC, ST, SMA-905 Coaxial PD optional request
SPL405-350-50M 405 +/-5 nm 350 mW mm 50 µm FC, ST, SMA-905 Coaxial PD optional request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL445-15-4 445 +/-5 nm 15 mW sm 4 µm FC, ST, SMA-905 Coaxial PD optional request
SPL445-15-4P 445 +/-5 nm 15 mW sm 4 µm PM FC, ST, SMA-905 Coaxial PD optional request
SPL445-25-25M 445 +/-5 nm 25 mW mm 25 µm FC, ST, SMA-905 Coaxial PD optional request
SPL445-30-40M 445 +/-5 nm 30 mW mm 40 µm FC, ST, SMA-905 Coaxial PD optional request
SPL445-30-105M 445 +/-5 nm 30 mW mm 105 µm FC, ST, SMA-905 Coaxial PD optional request

635 nm - 685 nm

Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
RLCD-S63-01 635 +/-10 nm 1 mW sm 4 µm FC, ST, SMA-905 Coaxial 　
RLCD-S63-02 635 +/-10 nm 2 mW sm 4 µm FC, ST, SMA-905 Coaxial 　
SPL635-2-4-PD 635 +/-5 nm 2 mW sm 4 µm FC, ST, SMA-905 Coaxial 　 request
SPL635-5-4-PD 635 +/-5 nm 5 mW sm 4 µm FC, ST, SMA-905 Coaxial 　
SPL635-5-4P-PD 635 +/-5 nm 5 mW sm 4 µm PM FC, ST, SMA-905 Coaxial 　 request
SPL635-5-105M-PD 635 +/-5 nm 5 mW sm 105 µm FC, ST, SMA-905 Coaxial 　 request
RLCD-S63-10 635 +/-10 nm 10 mW sm 4 µm FC, ST, SMA-905 Coaxial 　
RLCD-S63-20 635 +/-10 nm 20 mW sm 4 µm FC, ST, SMA-905 Coaxial 　
RLCD-M63H-350 635 +/-10 nm 350 mW mm 100 µm FC, ST, SMA-905 HHL 　
RLCD-M63H-1W 635 +/-10 nm 1 W mm 400 µm SMA-905 HHL 　 request
RLCD-M63H-2W 635 +/-10 nm 2 W mm 400 µm SMA-905 HHL 　 request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL650-1-4-PD 650 +/-5 nm 1 mW sm 4 µm FC, ST, SMA-905 Coaxial 　 request
RLTG065AS 650 +/-10 nm 1 mW sm 9 µm ST, SMA-905 Coaxial 　 request
RLTG065AU 650 +/-10 nm 2.5 mW mm 50 or 100 µm FC, ST, SMA-905 Coaxial 　
SPL650-3-105M-PD 650 +/-5 nm 3 mW mm 105 µm FC, ST, SMA-905 Coaxial 　
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL650-20-4 658 +/-5 nm 20 mW sm 4 µm FC, ST, SMA-905 Coaxial PD optional request
SPL650-20-4P 658 +/-5 nm 20 mW sm 4 µm PM FC, ST, SMA-905 Coaxial PD optional request
SPL650-30-105M 658 +/-5 nm 30 mW mm 105 µm FC, ST, SMA-905 Coaxial PD optional request
SPL650-40-4P 658 +/-5 nm 40 mW sm 4 µm PM FC, ST, SMA-905 Coaxial PD optional request
SPL650-50-4 658 +/-5 nm 50 mW sm 4 µm FC, ST, SMA-905 Coaxial PD optional request
SPL650-60-105M 658 +/-5 nm 60 mW mm 105 µm FC, ST, SMA-905 Coaxial PD optional request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
RLCD-S66-02 650 +/-10 nm 2 mW sm 4 µm FC, ST, SMA-905 Coaxial 　
RLCD-S66-10 650 +/-10 nm 10 mW sm 4 µm FC, ST, SMA-905 Coaxial 　
RLCD-S66-40 650 +/-10 nm 40 mW sm 4 µm FC, ST, SMA-905 Coaxial 　
RLCD-S66H-40 660 +/-5 nm 40 mW sm 4 µm FC, ST, SMA-905 HHL TEC request
RLCD-S66H-60 660 +/-5 nm 60 mW sm 4 µm FC, ST, SMA-905 HHL TEC request
RLCD-S66H-80 660 +/- 5 nm 80 mW sm 4 µm FC, ST, SMA-905 HHL TEC request
G066PU1200M 660 +/-5 nm 200 mW mm 100 µm FC, ST, SMA-905 H1 TEC request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
RLCD-M66H-200 665 +/-5 nm 200 mW mm 100 µm FC, ST, SMA-905 14-Pin butterfly TEC request
RLCD-M66H-750 665 +/- 5 nm 750 mW mm 100 µm FC, ST, SMA-905 9-Pin HHL TEC request
G066PU214W 660 +/-5 nm 1.4 W mm 430 µm ST, SMA-905 H2 TEC request
RLCD-M66H-2W 665 +/-5 nm 2 W mm 400 µm SMA-905 HHL 　
RLCD-M66H-3W 665 +/-5 nm 3 W mm 400 µm SMA-905 HHL 　
G066PU335W 660 +/-5 nm 3.5 W mm 600 µm SMA-905 H3 TEC request
RLCD-M66H-5W 665 +/-5 nm 5 W mm 400 µm SMA-905 HHL 　 request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL670-1-4-PD 670 +/-10 nm 1 mW sm 4 µm FC, ST, SMA-905 Coaxial 　 request
SPL670-1-4P-PD 670 +/-10 nm 1 mW sm 4 µm PM FC, ST, SMA-905 Coaxial 　 request
G067PU160M 670 +/-10nm 160 mW 　 50 µm FC 　 　 request
G067PU200M 670 +/-10 nm 200 mW 　 100 µm FC 　 　 request

785 nm - 880 nm

Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL685-4-4P-PD 685 +/-15 nm 4 mW sm 4 µm PM FC, ST, SMA-905 Coaxial 　 request
SPL685-9-4-PD 685 +/-15 nm 9 mW sm 4 µm FC, ST, SMA-905 Coaxial 　 request
SPL685-14-4P-PD 685 +/-15 nm 14 mW sm 4 µm PM FC, ST, SMA-905 Coaxial 　 request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL785-20-4-PD 785 +/-10 nm 20 mW sm 4 µm FC, ST, SMA-905 Coaxial 　
SPL785-20-4P-PD 785 +/-10 nm 20 mW sm 4 µm PM FC, ST, SMA-905 Coaxial 　
SPL785-30-4-PD 785 +/-10 nm 30 mW sm 4 µm FC, ST, SMA-905 Coaxial 　
SPL785-30-4P-PD 785 +/-10 nm 30 mW sm 4 µm PM FC, ST, SMA-905 Coaxial 　 request
SPL785-40-105M-PD 785 +/-10 nm 40 mW mm 105 µm FC, ST, SMA-905 Coaxial 　
SPL785-50-4 785 +/-10 nm 50 mW sm 4 µm FC, ST, SMA-905 Coaxial PD optional
RLT780M-1WFC 785 +/-5 nm 1 W mm 100 µm FC/PC 14-Pin DIP TEC
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL808-40-4-PD 808 +/-5 nm 40 mW sm 4 µm FC, ST, SMA-905 Coaxial 　 request
RLCD-M81-40 808 +/-5 nm 40 mW mm 62.5 µm FC, ST, SMA-905 Coaxial 　 request
SPL808-50-5-PD 808 +/-5 nm 50 mW sm 5 µm FC Coaxial 　 request
RLCD-M81-60 808 +/-5 nm 60 mW mm 62.5 µm FC, ST, SMA-905 Coaxial 　 request
SPL808-120-105M-PD 808 +/-5 nm 120 mW mm 105 µm FC, ST, SMA-905 Coaxial 　 request
SPL808-180-105M-PD 808 +/-5 nm 180 mW mm 105 µm FC, ST, SMA-905 Coaxial 　 request
RLCO-808-0500-F 808 +/-3 nm 500 mW mm 100 µm SMA-905 HHL 　
G081PU1600M 808 +/-5 nm 600 mW mm 50 µm FC, ST, SMA-905 H1 TEC
G081PU1750M 808 +/-5 nm 750 mW mm 100 µm FC, ST, SMA-905 H1 TEC
RLCO-808-1000-F 808 +/-3 nm 1 W mm 100 µm SMA-905 HHL 　
G081PU11500M 808 +/-5 nm 1.5 W mm 100 µm FC, ST, SMA-905 H1 TEC
RLT808M-1.5WFC 808 +/-5 nm 1.5 W mm 100 µm FC/PC 14-Pin DIP TEC
G081PU2W-HHL 808 +/-5 nm 2 W mm 100 or 200 µm FC, ST, SMA-905 HHL PD, TC, TH request
RLCO-808-2000-F 808 +/-3 nm 2 W mm 100 µm SMA-905 HHL 　
G081PU3W-HHL 808 +/-5 nm 3 W mm 100 or 200 µm FC, ST, SMA-905 HHL PD, TC, TH request
RLCO-808-3000-F 808 +/-3 nm 3 W mm 200 µm SMA-905 HHL 　 request
RLT808M-3WFC 808 +/-5 nm 3 W mm 100 µm FC/PC 14-Pin DIP TEC
G081PU4W-HHL 808 +/-5 nm 4 W mm 100 or 200 µm FC / ST / SMA-905 HHL PD, TC, TH request
RLCO-808-4000-F 808 +/-3 nm 4 W mm 200 µm SMA-905 HHL 　 request
RLCO-808-5000-F 808 +/-3 nm 5 W mm 200 µm SMA-905 HHL 　 request
G081PU25W 808 +/-5 nm 5 W mm 400 µm FC, ST, SMA-905 H2 TEC
RLT808M-8WFC 808 +/-5 nm 8 W mm 100 µm SMA-905 14-Pin DIP TEC request
RLT808M-10WFC 808 +/-5 nm 10 W mm 400 µm SMA-905 14-Pin DIP TEC request
G081PU210W 808 +/-5 nm 10 W mm 400 µm FC, ST, SMA-905 H2 TEC
G081PU312W 808 +/-5 nm 12 W mm 700 µm FC, ST, SMA-905 H3 TEC
G081PU314W 808 +/-5 nm 14 W mm 700 µm FC, ST, SMA-905 H3 TEC
G081PU325W 808 +/-5 nm 25 W mm 700 µm FC, ST, SMA-905 H3 TEC
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL830-1-4-PD 830 +/-10 nm 1 mW sm 4 µm FC, ST, SMA-905 Coaxial 　 request
SPL830-1-4P-PD 830 +/-10 nm 1 mW sm 4 µm PM FC, ST, SMA-905 Coaxial 　 request
SPL830-10-4P-PD 830 +/-10 nm 10 mW sm 4 µm PM FC, ST, SMA-905 Coaxial 　 request
SPL830-14-4-PD 830 +/-10 nm 14 mW sm 4 µm FC, ST, SMA-905 Coaxial 　 request
G083PU0500M 830 +/-5 nm 500 mW mm 50 µm FC, ST, SMA-905 H0 　 request
RLCO-830-1000-F 830 +/-5 nm 1 W mm 50 µm SMA-905 HHL 　
RLCO-830-1500-F 830 +/-5 nm 1.5 W mm 50 µm SMA-905 HHL 　 request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL850-10-4P-PD 850 +/-5 nm 10 mW sm 4 µm PM FC, ST, SMA-905 Coaxial 　
SPL850-14-4-PD 850 +/-5 nm 14 mW sm 4 µm FC, ST, SMA-905 Coaxial 　 request
SPL850-30-105M-PD 850 +/-5 nm 30 mW mm 105 µm FC, ST, SMA-905 Coaxial 　 request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL880-1-4P-PD 880 +/-10 nm 1 mW sm 4 µm PM FC, ST, SMA-905 Coaxial 　 request
SPL880-2-4-PD 880 +/-10 nm 2 mW sm 4 µm FC, ST, SMA-905 Coaxial 　 request

915 nm - 980 nm

Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
RLT915-200SPM 915 +/-5 nm 200 mW sm PM 　 　 TEC request
RLT915M-1.5WFC 915 +/-5 nm 1.5 W mm 100 µm FC/PC 14-Pin DIP TEC request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
RLT940-200SPM 940 +/-5 nm 200 mW sm PM 　 14-Pin DIP TEC request
SPL940-1.5W-105M-HHL 940 +/-10 nm 1.5 W mm 105 µm 　 HHL 　 request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
RLT975-250SBG 975 +/-0.5 nm 250 mW sm PM-FBG 　 14-Pin DIP TEC request
RLT975-300SPM 975 +/-5 nm 300 mW sm PM 　 14-Pin DIP TEC
RLT975M-3WFC 975 +/-5 nm 3 W mm 100 µm FC/PC 14-Pin DIP TEC
RLT975M-10WFC 975 +/-5 nm 10 W mm 200 µm SMA-905 14-Pin DIP TEC request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL980-10-9-PD 980 +/-10 nm 10 mW sm 9 µm FC, ST, SMA-905 Coaxial 　
SPL980-15-9-PD 980 +/-10 nm 15 mW sm 9 µm FC, ST, SMA-905 Coaxial 　 request
SPL980-20-9-PD 980 +/-10 nm 20 mW sm 9 µm FC, ST, SMA-905 Coaxial 　 request
SPL980-30-105M-PD 980 +/-15 nm 30 mW mm 105 µm FC, ST, SMA-905 Coaxial PD optional request
SPL980-100-105M-PD 980 +/-15 nm 100 mW mm 105 µm FC, ST, SMA-905 Coaxial 　
RLCO-980-0500-F 980 +/-10 nm 0.5 W mm 105 µm SMA-905 HHL 　 request
G098PU1600M 980 +/-5 nm 0.6 W mm 50 µm FC, ST, SMA-905 H1 TEC
G098PU1750M 980 +/-5 nm 0.75 W mm 100 µm FC, ST, SMA-905 H1 TEC
RLCO-980-1000-F 980 +/-10 nm 1 W mm 105 µm SMA-905 　 　
G098PU11300M 980 +/-5 nm 1.3 W mm 100 µm FC, ST, SMA-905 H1 TEC
RLCO-980-2000-F 980 +/-10 nm 2 W mm 100 µm SMA-905 　 　 request
RLCO-980-3000-F 980 +/-10 nm 3 W mm 100 µm SMA-905 　 　
RLCO-980-4000-F 980 +/-10 nm 4 W mm 200 µm SMA-905 　 　 request
RLCO-980-5000-F 980 +/-10 nm 5 W mm 200 µm SMA-905 　 　 request
G098PU25W 980 +/-5 nm 5 W mm 400 µm FC, ST, SMA-905 H2 TEC
G098PU209W 980 +/-5 nm 9 W mm 400 µm FC, ST, SMA-905 H2 TEC
G098PU312W 980 +/-5 nm 12 W mm 700 µm FC, ST, SMA-905 H3 TEC
G098PU322W 980 +/-5 nm 22 W mm 700 µm FC, ST, SMA-905 H3 TEC

1064 nm - 1490 nm

Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
RLT1064-150SBG 1064 +/-0.5 nm 150 mW sm PM-FBG 　 14-Pin DIP TEC
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL1270-2-9-PD 1270 +/-3 nm 2 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 Gb/s request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL1290-2-9-PD 1290 +/-3 nm 2 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 Gb/s request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
FU-17SLD-F3M1 1310 +/-20 nm 0.5 mW 　 　 FC Coaxial 　
LFO-14-ip 1310 +/-20 nm 1 mW sm 9/125 µm FC/APC Coaxial FP
LFO-14-d 1310 +/-20 nm 1 mW sm 9/125 µm FC/APC Coaxial FP, internal driver (3 VDC) request
G131PU001S 1310 +/-30 nm 1 mW sm 9 µm FC 14-Pin DIP TEC, tr/ts = 0.5 ns
SPL1310-1-9-PD 1310 +/-20 nm 1 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 Gb/s
SPL1310-2-9-PD 1310 +/-20 nm 2 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 Gb/s
SPL1310-3-9-PD 1310 +/-20 nm 3 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 Gb/s
SPL1310-4-9-PD 1310 +/-20 nm 4 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 Gb/s
SPL1310-5-9-PD 1310 +/-20 nm 5 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 Gb/s
SPL1310-10-9-PD 1310 +/-20 nm 10 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 Gb/s request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL1330-2-9-PD 1330 +/-3 nm 2 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 Gb/s request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL1350-2-9-PD 1350 +/-3 nm 2 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 Gb/s request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL1370-2-9-PD 1370 +/-3 nm 2 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 Gb/s request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL1390-2-9-PD 1390 +/-3 nm 2 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 Gb/s request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL1410-2-9-PD 1410 +/-3 nm 2 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 Gb/s request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL1430-2-9-PD 1430 +/-3 nm 2 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 Gb/s
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL1450-2-9-PD 1450 +/-3 nm 2 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 Gb/s request
G145PU400m 1450 +/-30 nm 400 mW mm 100 µm FC, ST, SMA-905 H1 TEC
G145PU23W 1450 +/-30 nm 3 W mm 400 µm FC, ST, SMA-905 H2 TEC
G145PU38W 1450 +/-30 nm 8 W mm 600 µm FC, ST, SMA-905 H3 TEC
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL1470-2-9-PD 1470 +/-3 nm 2 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 Gb/s request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL1490-2-9-PD 1490 +/-3 nm 2 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 Gb/s request

1490 nm - 1610 nm

Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL1510-2-9-PD 1510 +/-3 nm 2 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 Gb/s request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL1530-2-9-PD 1530 +/-3 nm 2 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 Gb/s request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
LFO-18-ip 1550 +/-20 nm 1 mW sm 9/125 µm FC/UPC Coaxial FP
LFO-18-d 1550 +/-20 nm 1 mW sm 9/125 µm FC/UPC Coaxial FP, internal driver (3 VDC)
G155PU001S 1550 +/-40 nm 1 mW sm 9 µm FC 14-Pin DIP TEC, tr/ts = 0.5 ns
LFO-18-2-ip 1550 +/-20 nm 2 mW sm 9/125 µm FC/UPC Coaxial FP
LFO-18/2-d 1550 +/-20 nm 2 mW sm 9/125 µm FC/UPC Coaxial FP, internal driver (3 VDC) request
SPL1550-1-9-PD 1550 +/-30 nm 1 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 Gb/s request
SPL1550-2-9-PD 1550 +/-30 nm 2 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 Gb/s request
SPL1550-3-9-PD 1550 +/-30 nm 3 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 GB/s request
SPL1550-9-9-PD 1550 +/-30 nm 9 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 2.0 Gb/s request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL1570-2-9-PD 1570 +/-3 nm 2 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 Gb/s request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL1590-2-9-PD 1590 +/-3 nm 2 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 Gb/s request
Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
SPL1610-2-9-PD 1610 +/-3 nm 2 mW sm 9 µm FC, ST, SMA-905 Coaxial DFB, 1.25 Gb/s request

Fiber Coupled Dual-Wavelength Laser Diodes

Fiber coupled dual-wavelength laser diodes are available with fiber core diameters of 200 µm and 400 µm, and output powers up to 7 W, and a 650 nm 2mW aiming beam. Standard configurations at 808 nm and 980 nm are available for applications like dentistry, surgery, aesthetics and physiotherapy.

Item # Wavelength Po Mode Fiber Connector Type Package Note Data sheet
RLCD-D81H-2W 808 +/- 10 nm 2 W mm 200 µm FC, ST, SMA-905 HHL PD, TC, TH request
RLCD-D81H-3W 808 +/- 10 nm 3 W mm 200 µm FC, ST, SMA-905 HHL PD, TC, TH request
RLCD-D81H-4W 808 +/- 10 nm 4 W mm 200 µm FC, ST, SMA-905 HHL PD, TC, TH request
RLCD-D81H-5W 808 +/- 10 nm 5 W mm 200 or 400 µm FC, ST, SMA-905 HHL PD, TC, TH request
RLCD-D81H-7W 808 +/- 10 nm 7 W mm 200 µm FC, ST, SMA-905 HHL PD, TC, TH request
RLCD-D98H-2W 980 +/- 10 nm 2 W mm 200 µm FC, ST, SMA-905 HHL PD, TC, TH request
RLCD-D98H-4W 980 +/- 10 nm 4 W mm 200 µm FC, ST, SMA-905 HHL PD, TC, TH request
RLCD-D98H-5W 980 +/- 10 nm 5 W mm 200 µm FC, ST, SMA-905 HHL PD, TC, TH request
RLCD-D98H-7W 980 +/- 10 nm 7 W mm 200 or 400 µm FC, ST, SMA-905 HHL PD, TC, TH request

LASER DIODE ARRAYS

  • LD Bars
  • Stacked LD Arrays
  • Linear LD Arrays

High Power Laser Diode Bars
Item # Wavelength Po Array length Emitter Area No. of emitters Beam div. Note Data sheet
AB081C20W 780..830 nm 20 W cw 10 mm 100 x 1 nm 19 40 x 8 deg. 　
AB081C40W 780..830 nm 40 W cw 10 mm 150 x 1 nm 19 40 x 8 deg. 　
AB081Q60W 780..830 nm 60 W qcw 10 mm 80 x 1 µm 100 40 x 8 deg. 　
AB081Q100W 780..830 nm 100 W qcw 10 mm 80 x 1 µm 100 40 x 8 deg. 　
Item # Wavelength Po Array length Emitter Area No. of emitters Beam div. Note Data sheet
AB098C20W 920..980 nm 20 W cw 10 mm 100 x 1 nm 19 40 x 8 deg. 　
AB098C40W 920..980 nm 40 W cw 10 mm 150 x 1 nm 19 40 x 8 deg. 　 request
AB098Q60W 920..980 nm 60 W qcw 10 mm 80 x 1 nm 100 40 x 8 deg. 　 request

Stacked Laser Diode Arrays
Item # Wavelength Po Array length Emitter Area No. of emitters Beam div. Note Data sheet
AS081C40W 780..830 nm 40 W cw 10 mm 1.6 mm 2 40 x 8 deg. 　
AS081C60W 780..830 nm 60 W cw 10 mm 1.6 mm 3 40 x 8 deg. 　
AS081C100W 780..830 nm 100 W cw 10 mm 1.6 mm 5 40 x 8 deg. 　
AS081C120W 780..830 nm 120 W cw 10 mm 　 5 40 x 8 deg. 　 request
AS081C140W 780..830 nm 140 W cw 10 mm 　 5 40 x 8 deg. 　 request
AS081C200W 780..830 nm 200 W cw 10 mm 2.4 mm 5 40 x 8 deg. 　
AS081C280W 780..830 nm 280 W cw 10 mm 2.4 mm 　 40 x 8 deg. 　 request
AS081C320W 780..830 nm 320 W cw 10 mm 2.4 mm 8 40 x 8 deg. 　
AS081C480W 780..830 nm 480 W cw 10 mm 2.4 mm 12 40 x 8 deg. 　
AS081Q300W 780..830 nm 300 W qcw 10 mm 0.5 mm 5 40 x 8 deg. 　
AS081Q600W 780..830 nm 600 W qcw 10 mm 0.5 mm 10 40 x 8 deg. 　
AS081Q1200W 780..830 nm 1200 W qcw 10 mm 0.5 mm 20 40 x 8 deg. 　
AS081Q3000W 780..830 nm 3000 W qcw 10 mm 0.5 mm 30 40 x 8 deg. 　
AS081Q5000W 780..830 nm 5000 W qcw 10 mm 0.5 mm 50 40 x 8 deg. 　
AS081Q15000W 780..830 nm 15000 W qcw 10 mm 0.5 mm 150 40 x 8 deg. 　
Item # Wavelength Po Array length Emitter Area No. of emitters Beam div. Note Data sheet
AS098C40W 920..980 nm 40 W cw 10 mm 1.6 mm 2 40 x 8 deg. 　
AS098C60W 920..980 nm 60 W cw 10 mm 1.6 mm 3 40 x 8 deg. 　
AS098C100W 920..980 nm 100 W cw 10 mm 1.6 mm 5 40 x 8 deg. 　
AS098Q300W 920..980 nm 300 W qcw 10 mm 0.4 mm 5 40 x 8 deg 　
AS098Q600W 920..980 nm 600 W qcw 10 mm 0.4 mm 10 40 x 8 deg. 　
AS098Q1200W 920..980 nm 1200 W qcw 10 mm 0.4 mm 20 40 x 8 deg. 　

Linear Laser Diode Arrays
Item # Wavelength Po Array length Emitter Area No. of emitters Beam div. Note Data sheet
AL081C60W 780..830 nm 60 W cw 　 34 mm 3 40 x 8 deg. 　 request
AL081C80W 780..830 nm 80 W cw 　 46 mm 4 41 x 8 deg. 　 request
AL081C100W 780..830 nm 100 W cw 　 57 mm 5 42 x 8 deg. 　 request
AL081C120W 780..830 nm 120 W cw 　 34 mm 3 43 x 8 deg. 　 request
AL081C140W 780..830 nm 140 W cw 　 80 mm 7 44 x 8 deg. 　 request
AL081C200W 780..830 nm 200 W cw 　 57 mm 5 45 x 8 deg. 　 request
AL081C280W 780..830 nm 280 W cw 　 80 mm 7 46 x 8 deg. 　 request

PULSED LASER DIODES

850 nm Wavelength Po Mode Chip size Tw DF Package Note Data sheet
PLD850-2-T 850 nm 2 W 　 40 x 1 µm² 　 　 TO-46 　 request
PLD850-10-MG 850 nm 10 W 　 150 x 1 µm² 　 　 5.6 mm 　
900 nm Wavelength Po Mode Chip size Tw DF Package Note Data sheet
PLD904-4-MG 904 nm 4 W 　 60 x 1 µm² 　 　 5.6 mm 　
PLD904-10-MG 904 nm 10 W 　 150 x 1 µm² 　 　 5.6 mm 　
PLD904-4-T 904 nm 4 W 　 60 x 1 µm² 　 　 TO-46 　
PLD904-5-T 904 nm 5 W 　 75 x 1 µm² 　 　 TO-46 　 request
LDMP-0905-10W-51 905 nm 10 W 　 370 x 1µm² 50...200ns 0.05 % 5.6 mm 　
LDMP-0905-20W-51 905 nm 20 W 　 370 x 1 µm² 50...200ns 0.05 % 5.6 mm 　
LDMP-0905-50W-93 905 nm 50 W 　 370 x 100 µm² 50...200 ns 0.05 % 9 mm 　
VL905P75 905 nm 75 W 　 　 100 ns 0.2 % 5 mm epoxy packageNEW
RLT-HPL905-50 904 nm 50 W 　 370 x 100 µm² 50 ns 　 9 mm 　
1550 nm Wavelength Po Mode Chip size Tw DF Package Note Data sheet
LDMP-1550-010W-50 1550 nm 10 W 　 370x1 µm 50...200 ns 0.05 % 5.6 mm 　 request
LDMP-1550-015W-52 1550 nm 15 W 　 370x1 µm 50...200 ns 0.05 % 5.6 mm 　 request
LDMP-1550-020W-91 1550 nm 20 W 　 370x100 µm 100 ns 0.01 % 9 mm 　
1610 - 1625 nm Wavelength Po Mode Chip size Tw DF Package Note Data sheet
RLT1610-100MPG 1610 nm 100 mW 　 1 x 200 µm < 1 µs 　 9 mm 　
LD1625-C120 1625 nm 120 mW sm 　 　 　 5.6 mm 　

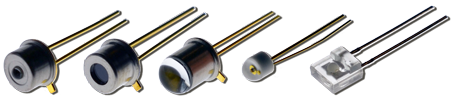

VERTIVAL CAVITY SURFACE EMITTING LASERS

VCSELs

available wavelengths: 670, 780, 850 and 980 nm

Part No. Wavelength Output Power Current Mode Monitor φ Gpbs Package Note Data sheet
VC670S-TO46FW 670 nm 0.5 mW 4 mA sm 　 12° 　 TO-46, flat window 　
VC670M-TO46FW 670 nm 1.0 mW 4 mA mm 　 20° 　 TO-46, flat window 　
VC670M-TO46FW-PD 670 nm 1.0 mW 4 mA mm x 20° 　 TO-46, flat window 　 request
VC670M-TO46GL 670 nm 1.0 mW 5 mA mm 　 2° 　 TO-46, glass lens 　 request
VC670M-3CEP 670 nm 1.0 mW 4 mA mm 　 15° 　 3 mm ceramic, epoxy lens 　 request
VC780M-TO46FW 780 nm 1.5 mW 6 mA mm 　 　 2.5 Gbps TO-46, flat window phase out
VC780M-TO46BL 780 nm 1.5 mW 6 mA mm 　 　 2.5 Gbps TO-46, ball lens phase out request
VC850S-SMD 850 nm 0.5 mW 3.5 mA sm 　 8° 　 SMD 0603 　
VC850M-SMD 850 nm 0.5 mW 4 mA mm 　 6° 　 SMD 0603 　
VC850M-TO46GL 850 nm 2 mW 6 mA mm 　 5° 　 TO-46, glass lens 　
VC850M-TO46GL-3PIN 850 nm 2 mW 6 mA mm 　 2° 　 TO-46, glass lens phase out
VC850M-H-TO46GL 850 nm 10 mW 20 mA mm 　 2° 　 TO-46, glass lens 　
VC850M-H-TO46FW 850 nm 8 mW 20 mA mm 　 　 >1.25Gbps TO-46, flat window 　
VC850M-H-TO46FW-PD 850 nm 10 mW 20 mA mm x 　 >1.25Gbps TO-46, flat window 　
VC850M-H2-TO46FW 850 nm 20 mW 50 mA mm 　 　 　 TO-46, flat window 　
VC980M-TO46FW 980 nm 1.5 mW 6 mA mm 　 20° 　 TO-46, flat window 　 request
　

VCSEL Modules

Available wavelengths: 780, 850 and 980 nm

Part No. Wavelength Output Power Current Mode φ Package Note Data sheet
VC780S-MODULE 780 nm max 0.25 mW 5 mA sm 　 10 x 18 mm phase out request
VC850S-MODULE 850 nm max 0.4 mW 4 mA sm 　 10 x 18 mm phase out request
VC850M-MODULE 850 nm max 5 mW 20 mA mm 　 10 x 18 mm 　 request
VC980M-MODULE 980 nm max 0.75 mW 6 mA mm 　 10 x 18 mm 　 request

LASER DIODE CHIPS

EPI wafer laser diode chip dies

Item # Wavelength Power Mode Note Data sheet
CHIP-635-P5 635 nm 5 mW sm Minimum Order Quantity 1000 pcs. request
CHIP-650-P5 650 nm 5 mW sm Minimum Order Quantity 1000 pcs.
CHIP-980-P50 980 nm 50 mW sm Minimum Order Quantity 100 pcs.
CHIP-1310-P5 1310 nm 5 mW sm 2.5 GHz,Minimum Order Quantity 1000 pcs.
　

　

紫外发光二极管
深紫外发光二极管 近紫外发光二极管
牙医蓝大功率发光二极管 大功率深紫外发光二极管
发光二极管驱动 　
激光二极管
气体分析用激光二极管 超辐射激光二极管 　
通用激光二极管 　 激光二极管驱动控制器 　
光纤耦合激光二极管 激光二极管配件
大功率泵浦激光二极管模块 半导体光学放大器
红外发光二极管
大功率红外发光二极管 中红外发光二极管
发光二极管驱动 近红外发光二极管
光电探测器
热电堆探测器 硅光电探测器
热释电探测器 锗光电探测器
中红外光电探测器 InGaAs光电探测器
紫外探测器 　 双波段探测器
CO 红外探测器   CH4红外探测器   CO2红外探测器   SF6红外探测器   SO2红外探测器 HC红外探测器
红外光源   红外光电气体传感器  NDIR红外气体传感器  红外温度传感器  红外气体分析器件
CO2红外光源   CH4红外光源   CO红外光源   C3H8红外光源   C4H10红外光源   C2H4红外光源   C2H2红外光源      SF6红外光源   SO2红外光源   HC红外光源
安防产品 主动红外 被动红外 门窗磁控感应器
其它产品 电子元器件产品 液位传感器 接近传感器
干簧管 磁簧继电器 光电传感器 液位开关
浮子 　 　 　

becker-hickl光子计数产品中国代理资料下载  Excelitas单光子计数器 SPD单光子计数器 Hamamatsu光子计数模块HORIBA光子计数代理美国斯坦福单光子计数器TH单光子计数器 COUNT单光子计数器  PILATUS光子计数器  其它光子计数器

　

　
　


　

更多产品请看本公司产品专用销售网站:

中国传感器科技信息网：http://www.sensor-ic.com/

SSTKJ工控安防网：http://www.pc-ps.net/

SSTKJ电子 元器件网：http://www.sunstare.com/

SSTKJ微波光电产品网:HTTP://www.rfoe.net/

消费电子产品网://www.icasic.com/

科技产品网://www.sunstars.cn/

传感器销售热线：

    地址：深圳市福田区福华路福庆街鸿图大厦9732室

    电话：0755-83376489 83376549 83607652 83370250   83370251   83376549

    传真：0755-83376182  （0）13902971329  MSN: xjr5@163.com

    邮编：518033   E-mail:szss20@163.com     QQ: 195847376

    深圳赛格展销部：深圳华强北路赛格电子市场9583号 电话：0755-83665529   13823648918

    技术支持: 0755-83394033 13501568376

欢迎索取免费详细资料、设计指南和光盘 ；产品凡多，未能尽录，欢迎来电查询。

    北京分公司：北京海淀区知春路132号中发电子大厦3097号

               TEL：  18927445855  13823791822  FAX：010-62543996

    上海分公司：上海市北京东路668号上海賽格电子市场地下一层D25号

               TEL：  56703037  13823676822  FAX：021-56703037

    西安分公司：西安高新开发区20所(中国电子科技集团导航技术研究所)

　　　　　      西安劳动南路88号电子商城二楼D23号

            TEL：  18926764199  FAX:029-77678271
