LCD/LCM/TFT/VFD/EL 驱动IC
SSTKJ实业专用电路部一家集科工贸,为一体的高新技术企业。专业的LCD驱动IC代理 方案提供
◆
我司具有十多年的电子元器件销售历史,目前在香港、深圳、北京、上海、西安、成都等均注册有独立的公司,拥有一个相当完善的全球采购系统。主要经营LCD驱动及电源方面的IC。
◆ 在LCD驱动IC方向代理经营新德(NEOTEC)、诠华 (ASLIC)、凌阳(SUNPLUS)的LCD 驱动产品。同时一级直销 普诚(PTC)、意法半导体(ST)的LCD
驱动产品。
◆ 在锂电池保护、电源管理IC方向代理经营 理光 (RICOH)、精工(SII)、富晶(FORTUNE)产品。同时直销三洋、东芝、AOS公司的MOSFET。
◆ 我司在香港,大陆均设有现货仓库,能极大的满足贵公司不同的交货方式要求。
我们承诺:在同行中我们的价格最具有挑战力、质量保证、一流的售后服务和专业的技术支持相信我们将是你最佳的选择,欢迎你洽询。
主要从事开发、生产和销售;液晶屏( LCD )和液晶模块( LCM )和 OLED 及电子产品。屏主要包括: TN 、 STN 、 FSTN 等玻璃;模块包括:
COG 、 TAB 、 SMT 、 COF 、 COB 等封装和 OLED 模块。连接器产品:主要以代理: AMP 、 MOLEX 、 JST
等知名品牌连接器及端子。
(一)、图形类产品资料
(二)、字符类产品资料
(三)、TAB产品资料
|
|
我公司是台湾凌阳、合泰IC代理商,同时独家代理台湾镭射半导体LCD驱动IC,其特色为:可软件程控使其适用于多样化的LCD应用线路,僅用到3至4條訊號線便可控制LCD駆動器,除此之外亦可介由指令使其進入省電模式。系列产品如下:
* FL601 驱动芯片
* FL602 驱动芯片
* FL603 驱动芯
* FL604 驱动芯片
* FL605驱动芯片 |
|
|
|
LCD驱动 |
|
型 号
|
说 明
|
厂牌
|
兼容型号
|
HT1613 |
Timer with Dialer Interface
|
HOLTEK
|
|
HT1620 |
RAM Mapping 32×4 LCD Controller
for I/O MCU
|
HOLTEK
|
|
HT1621 |
RAM Mapping 32×4 LCD Controller
for I/O MCU
|
HOLTEK
|
|
HT1621B |
RAM Mapping 32×4 LCD Controller
for I/O MCU
|
HOLTEK
|
|
ESC1621B |
RAM Mapping 32×4 LCD Controller
for I/O MCU
|
------ |
中文概述 |
LHT1621 |
RAM Mapping
32×4 LCD Controller for I/O MCU |
直接兼容HT1621B
|
HT1621D |
RAM Mapping 32×4 LCD Controller
for I/O MCU
|
HOLTEK
|
|
ESC1621D |
RAM Mapping 32×4 LCD Controller
for I/O MCU
|
EASTECH |
中文概述 |
HT1622 |
RAM Mapping 32×8 LCD Controller
for I/O MCU
|
HOLTEK |
|
HT16220 |
RAM Mapping 32×8
LCD Controller for I/O MCU |
HOLTEK |
|
|
V F D / L
E D 驱 动 |
|
型 号
|
说 明
|
厂牌
|
兼容型号
|
HT16511 |
1/8 to 1/16 Duty VFD Controller
|
HOLTEK |
PT6311 |
HT16512 |
1/4 to 1/11 Duty VFD Controller
|
HOLTEK
|
PT6312 |
PT6311 |
1/8 to 1/16 Duty VFD Controller
|
PTC
|
HT16511 |
PT6312BLQ |
1/4 to 1/11 Duty VFD Controller
|
PTC |
HT16512 |
SS6961 |
1/4 to 1/11 Duty LED Controller
|
SIISEMI
|
PT6961 SM1623 |
|
■ |

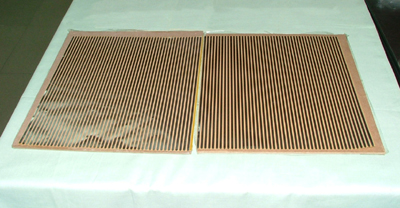

EL原理
EL是通过加在两极的交流电压产生的交流电场,被电场激发的电子碰撞荧光物质(Zns)而引致电子能极的跳跃、变化、复合而导致发射出高效率的冷光的一种物理现象,即电致发光现象。EL片是利用上述原理制成的一种先进的具备各种突出优点而被广泛应用的场致发光薄片。 |
■ |
EL特性
● 视角宽、平面固态发光源
● 超薄平整(可达到0.12mm)
● 重量轻
● 丰富的发光颜色
● 可弯折(半径5mm)可曲面发光
● 防震性强
● 柔和稳定,直视光源不耀眼
● 功耗低
● 冷光源,不产生热量
● 寿命长(超过25,000小时)
● 加工自由,形状任意,创造活力
● 不会产生紫外线
● 有烟和雾的场合能见度高
|
|
即使用刀剪
断仍能发光 |
|
放水中同样发光显示其优良的防水、防潮特性,且不受任何场合限制 |
|
可任意弯曲,优良
的抗震和冲击性 |
■ |

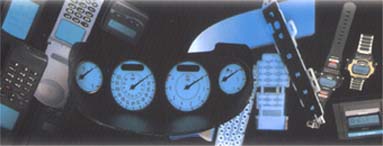

EL的用途
最早EL是应用于航空、军事等领域,随着EL制造工艺的改善、技术力量的增强、可靠性的提高、生产成本的下降;近年来,特别有了适合不同规格及不受任何场合限制的EL驱动逆变器、IC、EL的市场开始日益壮大,它被广泛应用于电子计算机工业及各行各业。
El主要用途为:

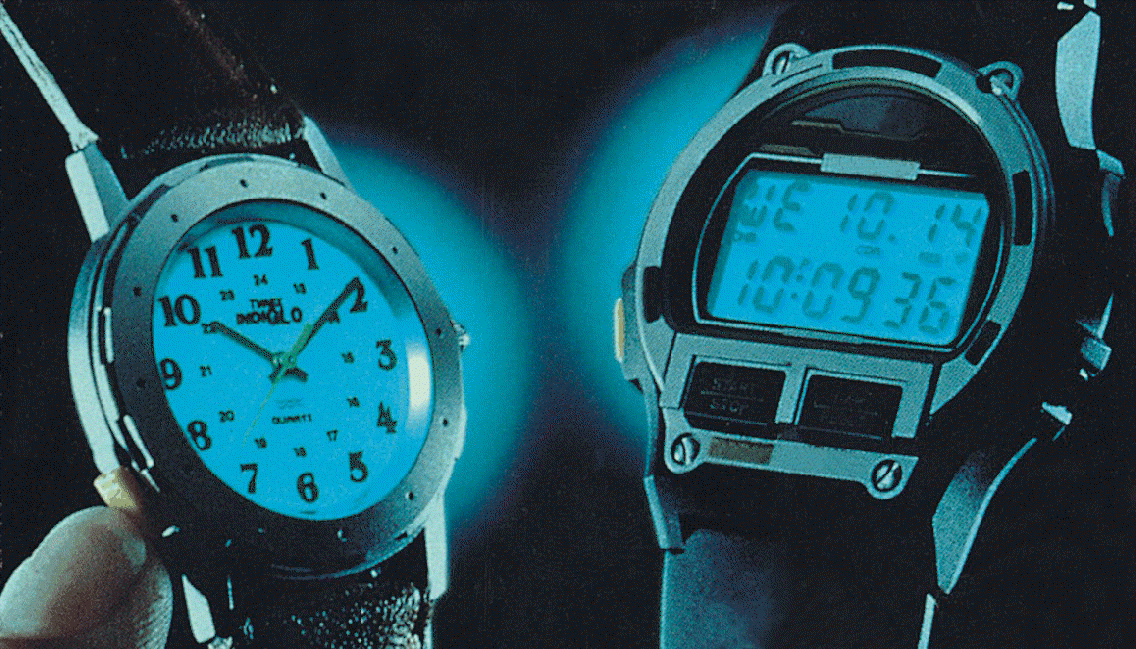

(1)LCD背光源。(2)时钟、手表。(3)玩具、电子礼品、圣诞灯饰。(4)广告艺术招牌。(5)应急标志灯。(6)门标、门牌、汽车车牌
。(7)仪器、仪表表盘。(8)小夜灯等。 |
■ |
EL驱动器部门
●
无论任意大小EL都有逆变器或IC可以配合
● 输入范围1.5-24VDC
● 可任意调整一闪及多闪的功能
●
本公司可根据客户要求设计所需逆变器,并代理高品质美国产IC |
|
|
□El主要用途/§LCD背光源/§时钟、手表/§玩具、电子礼品/§应急标志灯、汽车车牌/§仪器、仪表表盘/ |
|
|
SSTKJ实业专用电路部液晶显示模组
|
Note: For the Character
Module |
SSX
|
161
|
0
|
S1
|
M
|
L1
|
Y
|
T
|
H
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
|
|
1
|
Module type
|
SSX Standard
Character Module |
SSX Standard
Graphic Module |
SSX Custom
Character Module |
SSX Custom
Graphic Module
|
TG Standard TAB
Module |
TGX Custom TAB
Module |
2
|
Series No.
|
SSX1610 16
character X 1 line |
SSX1232 122 X 32
dots
|
3
|
Series code
|
0--99
|
4
|
LCD Module
|
N TN
|
S STN
|
S1 STN yellow
|
F FSTN
|
5
|
Polarizer type
|
R Reflective
|
Nil Transflective
|
N Negative
|
M Transmissive
|
P Paper white
|
6
|
Backlight
|
L
|
LED B/L
|
L 9mm height
above PCB |
L1 8mm height
above PCB |
L2 7mm height
above PCB |
L3 edge light
|
E EL Panel B/L
|
C CCFL B/L
|
7
|
Backlight color
|
Y Yellow green
|
A Amber
|
R Red
|
G Green
|
B Blue
|
W White
|
8
|
View direction
|
Nil Bottom
view (6H)
|
T Top view
(12H)
|
9
|
Temp. range
|
Nil Normal
temperature |
H Wide
temperature |
|
Graphic LCD Module: |
Display
Format |
Part No.
|
Variation
|
Option
|
Dot Size
(WXHMM) |
Outline
Dimension (WxHxTmm)
|
Built-in
Controller |
T/C
|
DC/DC
|
104 x 52
|
SSX10520
|
Reflective
|
★
|
★
|
0.80 x 0.80
|
122.0 x 76.2 x
12.0
|
Bit Map
KS0107/KS0108
|
120 x 16
|
SSX12160
|
LED B/L
|
★
|
★
|
2.65 x 2.65
|
356.0 x 64.0 x
16.0
|
Bit Map
SED1520
|
122 x 32
|
SSX12321
|
Reflective
|
|
|
0.40 x 0.45
|
84.0 x 44.0 x
I 0.0
|
Bit Map
SED1520DAA
|
EL B/L
|
|
|
84.0 x 44.0 x
I 0.0
|
LED B/L
|
|
|
84.0 x 44.0 x
14.5
|
SSX12322
|
Reflective
|
|
|
0.40 x 0.45
|
65.4 x 30.0 x
4.7
|
Bit Map
SED1520DOA
|
LED B/L
|
|
|
65.4 x 30.0 x
6.0
|
SSX12323
|
Reflective
|
|
|
0.36 x 0.41
|
65.4 x 29.0 x
5.7
|
Bit Map
SED1520DOA
|
SSX12328
|
Reflective
|
★
|
|
0.54 x 0.61
|
98.0 x 50.0 x
I0.1
|
Bit Map
SED1520DOA
|
EL B/L
|
★
|
|
98.0 x 50.0 x
I0.1
|
LED B/L
|
★
|
|
98.0 x 50.0 x
14.5
|
SSX123212
|
LED B/L
|
★
|
★
|
0.8 x 1.19
|
130.0 x 66.0 x
14.1
|
Bit Map
SED1520DAA
|
128 x 64
|
SSX12641
|
Reflective
|
★
|
★
|
0.48 x 0.48
|
93.0 x 70.0 x
10.0
|
Bit Map
KS0107/KS0108
|
EL B/L
|
★
|
★
|
93.0 x 70.0 x
10.0
|
LED B/L
|
★
|
★
|
93.0 x 70.0 x
15.0
|
SSX12642
|
Reflective
|
★
|
★
|
0.40 x 0.56
|
78.0 x 70.0 x
10.0
|
Bit Map
KS0107/KS0108
|
LED B/L
|
★
|
★
|
78.0 x 70.0 x
13.0
|
SSX12643
|
Reflective
|
★
|
|
0.40 x 0.56
|
78.0 x 70.0 x
10.0
|
T6963C
|
LED B/L
|
★
|
|
78.0 x 70.0 x
13.0
|
SSX12644
|
Reflective
|
★
|
★
|
0.40 x 0.40
|
75.0 x 52.8 x
6.8
|
Bit Map
KS0107/KS0108
|
LED B/L
|
★
|
★
|
75.0 x 52.8 x
9.0
|
SSX12645
|
Reflective
|
★
|
★
|
0.40 x 0.40
|
|
Bit Map
KS0107/KS0108
|
LED B/L
|
★
|
★
|
75.0 x 52.8 x
9.0
|
SSX12646
|
Reflective
|
★
|
★
|
0.40 x 0.40
|
75.0 x 67.7 x
9.0
|
Bit Map
KS0107/KS0108
|
LED B/L
|
★
|
★
|
SSX12647
|
Reflective
|
★
|
|
0.40 x 0.56
|
|
Bit Map
T6963C
|
EL B/L
|
★
|
|
|
LED B/L
|
★
|
|
87.0 x 71.0 x
15.0
|
128 x 128
|
SSX12121
|
Reflective
|
★
|
★
|
0.40 x 0.43
|
85.0 x I 00.0
x I 1.0
|
Bit Map
T6963C
|
EL B/L
|
★
|
★
|
85.0 x I 00.0
x I 1.0
|
LED B/L
|
★
|
★
|
85.0 x 100.0 x
14.5
|
160 x 32
|
SSX16321
|
Reflective
|
★
|
★
|
0.55 x 0.55
|
11 6.0 x 44.0
x 10.5 |
Bit Map
KS0107/SED1521 |
EL B/L
|
★
|
★
|
11 6.0 x 44.0
x 10.5 |
LED B/L
|
★
|
★
|
11 6.0 x 44.0
x 14.0 |
SSX16322
|
Reflective
|
★
|
★
|
0.55 x 0.55
|
11 6.0 x 44.0
x 10.5 |
Bit Map
KS0107/SED1521 |
EL B/L
|
★
|
★
|
11 6.0 x 44.0
x 10.5 |
LED B/L
|
★
|
★
|
11 6.0 x 44.0
x 14.0 |
160 x 80
|
SSX16801
|
Reflective
|
★
|
★
|
0.39 x 0.39
|
100.0 x 54.0
x 11.3 |
Bit Map
LC7981
|
EL B/L
|
★
|
★
|
100.0 x 54.0
x 11.3 |
LED B/L
|
★
|
★
|
100.0 x 54.0
x 15.3 |
160 x 150
|
SSX16151
|
EL B/L
|
★
|
|
0.28 x 0.28
|
78.5 x 74.75
x 9.5 |
HD66206
|
200 x 128
|
SSX20121
|
LED B/L
|
★
|
★
|
0.42 x 0.42
|
128.0 x 74.0
x 14.5 |
T6963C/KS0086
|
240 x 64
|
SSX24641
|
Reflective
|
★
|
★
|
0.49 x 0.49
|
180.0 x 65.0
x 10.0 |
LC7981
|
EL B/L
|
★
|
★
|
180.0 x 65.0
x 10.0 |
LED B/L
|
★
|
★
|
180.0 x 65.0
x 16.0 |
CCFL B/L
|
★
|
★
|
180.0 x 65.0
x 20.0 |
SSX24642
|
Reflective
|
★
|
|
0.49 x 0.49
|
180.0 x 65.0
x 10.0 |
T6963C
|
EL B/L
|
★
|
|
180.0 x 65.0
x 10.0 |
LED B/L
|
★
|
|
180.0 x 65.0
x 16.0 |
CCFL B/L
|
★
|
|
180.0 x 65.0
x 20.0 |
SSX24643
|
CCFL B/L
|
★
|
★
|
0.50 x 0.50
|
180.0 x 70.0
x 14.0 |
T6963C
|
SSX24644
|
Reflective
|
★
|
★
|
0.41 x 0.41
|
149.0 x 56.0
x 9.5 |
T6963C
|
SSX24645
|
Reflective
|
★
|
★
|
0.41 x 0.41
|
128.6 x 69.6
x 9.9 |
T6963C
|
240 x 128
|
SSX24121
|
CCFL B/L
|
★
|
|
0.47 x 0.47
|
170.0 x 103.2
x 12.0 |
T6963C
|
SSX24123
|
Reflective
|
★
|
★
|
0.40 x 0.40
|
144.0 x 104.0
x 10.8 |
T6963C
|
EL B/L
|
★
|
★
|
144.0 x 104.0
x 10.8 |
LED B/L
|
★
|
★
|
144.0 x 104.0
x 14.9 |
SSX24124
|
CCFL B/L
|
★
|
★
|
0.47 x 0.47
|
159.0 x 101.0
x 11 .0 |
LC7981C
|
256 x 128
|
SSX25121
|
EL B/L
|
★
|
★
|
0.44 x 0.44
|
146.0 x 116.0
x 12.0 |
KS0086
|
320 x 200
|
SSX32201
|
EL B/L
|
★
|
★
|
0.25 x 0.25
|
126.2 x 72.0
x 10.0 |
KS0086
|
320 x 240
|
SSX32241
|
LED B/L
|
★
|
★
|
0.33 x 0.33
|
167.1 x 109.0
x 11.0 |
79401/79430
|
CCFL B/L
|
★
|
★
|
SSX32242
|
LED B/L
|
★
|
★
|
0.33 x 0.33
|
167.1
x109.0x10.5 |
SED1335/KS0086
|
CCFL B/L
|
★
|
★
|
SSX32244
|
LED B/L
|
★
|
★
|
0.27 x 0.27
|
139.0
x102.5x13.2 |
KS0086
/SED1335 |
CCFL B/L
|
★
|
★
|
SSX32245
|
LED B/L
|
★
|
★
|
0.27 x 0.27
|
134.5 x
117.0x 1 4.0 |
KS0086
|
CCFL B/L
|
★
|
★
|
SSX32247
|
LED B/L
|
★
|
★
|
0.27 x 0.27
|
134.5 x1
17.0x 1 3.5 |
KS0086
|
CCFL B/L
|
★
|
★
|
|
Note: For the Character
Module |
For example |
SSX
|
161
|
0
|
S1
|
M
|
L1
|
Y
|
T
|
H
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
|
1
|
Module type
|
SSX Standard
Character Module |
SSX Standard
Graphic Module |
SSX Custom
Character Module |
SSX Custom
Graphic Module
|
TG Standard TAB
Module |
TGX Custom TAB
Module |
2
|
Series No.
|
SSX1610 16
character X 1 line |
SSX1232 122 X 32
dots
|
3
|
Series code
|
0--99
|
4
|
LCD Module
|
N TN
|
S STN
|
S1 STN yellow
|
F FSTN
|
5
|
Polarizer type
|
R Reflective
|
Nil Transflective
|
N Negative
|
M Transmissive
|
P Paper white
|
6
|
Backlight
|
L
|
LED B/L
|
L 9mm height
above PCB |
L1 8mm height
above PCB |
L2 7mm height
above PCB |
L3 edge light
|
E EL Panel B/L
|
C CCFL B/L
|
7
|
Backlight color
|
Y Yellow green
|
A Amber
|
R Red
|
G Green
|
B Blue
|
W White
|
8
|
View direction
|
Nil Bottom
view (6H)
|
T Top view
(12H)
|
9
|
Temp. range
|
Nil Normal
temperature |
H Wide
temperature |
|
Series No.
|
Version
|
Character x Lines
|
Character Format (W x H)
|
Character Size (W x H mm)
|
Outline Dimension (W x HxTmm)
|
Built-in Controlloer
|
Driving Muliplex
|
SSX0820
|
Reflectiv
|
8 ch x 2 lines
|
5 x 8 dots
|
2.945 x 5.545
|
58.0 x 32.0 x
10.0 |
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
58.0 x 32.0 x
14.5 |
SSX0823
|
Reflectiv
|
8 ch x 2 lines
|
5 x 8 dots
|
2.95 x 5.55
|
38.3 x 23.3 x
5.0 |
KS0066 or
Equivalent
|
1/16 duty
|
|
|
SSX1610
|
Reflectiv
|
16 ch x I line
|
5 x 8 dots
|
3.07 x 6.56
|
80.0 x 36.0 x
10.0 |
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
80.0 x 36.0 x
14.5 |
SSX1611
|
Reflectiv
|
16 ch x I line
|
5 x 7 dots +
cursor |
4.84 x 8.06
|
122.0 x 33.0 x
10.5 |
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
122.0 x 33.0 x
15.5 |
SSX1616
|
|
16 ch x I line
|
5 x 7 dots +
cursor |
4.84 x 8.06
|
|
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
114.75x 44.0 x
15.5 |
SSX1621
|
Reflectiv
|
16 ch x 2
lines |
5 x 7 dots +
cursor |
4.84 x 8.06
|
122.0 x 44.0 x
10.5 |
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
122.0 x 44.0
xl4.5 |
SSX1622
|
Reflectiv
|
16 ch x 2
lines |
5 x 8 dots
|
2.95 x 5.55
|
85.0 x 29.5
x 10.0
|
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
85.0 x 29.5 x
14.5 |
SSX1623
|
Reflectiv
|
16 ch x 2
lines |
5 x 8 dots
|
2.95 x 5.55
|
85.0 x 36.0 x
10.0 |
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
85.0 x 36.0 x
14.5 |
SSX1624
|
Reflectiv
|
16 ch x 2
lines |
5 x 8 dots
|
2.95 x 5.55
|
84.0 x 44.0 x
10.0 |
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
84.0 x 44.0 x
14.5 |
SSX1625
|
Reflectiv
|
16 ch x 2
lines |
5 x 8 dots
|
2.95 x 5.55
|
80.0 x 36.0 x
I 0.0 |
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
80.0 x 36.0 x
14.5 |
SSX1627
|
Reflectiv
|
16 ch x 2
lines |
5 x 8 dots
|
4.07 x 7.76
|
100.0 x 38.8x
10.0 |
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
100.0 x 38.8 x
13.3 |
SSX1628
|
Reflectiv
|
16 ch x 2
lines |
5 x 8 dots
|
2.95 x 5.55
|
|
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
85.0 x 35.0 x
13.5 |
SSX1629
|
Reflectiv
|
16 ch x 2
lines |
5 x 8 dots
|
4.07 x 7.76
|
100.0 x 38.8 x
10.0 |
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
100.0 x 38.8 x
13.3 |
SSX16211
|
Reflectiv
|
16 ch x 2
lines |
5 x 8 dots
|
2.95 x 5.55
|
79.2 x 26.3 x
4.66 |
KS0066 or
Equivalent
|
1/16 duty
|
|
|
SSX16214
|
Reflective
|
16 ch x 2
lines |
5 x 8 dots
|
2.875 x 11.71
|
65.6 x 27.8 x
4.0 |
KS0066 or
Equivalent
|
1/16 duty
|
|
|
SSX16215
|
Reflective
|
16 ch x 2
lines |
5 x 8 dots
|
2.875 x 11.71
|
65.6 x 27.8 x
4.0 |
KS0066 or
Equivalent
|
1/16 duty
|
|
|
SSX16262
|
Reflectiv
|
16 ch x 2
lines |
5 x 8 dots
|
2.95 x 5.55
|
87.0 x 29.5 x
10.0 |
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
87.0 x 29.5 x
10.8 |
SSX16263
|
Reflectiv
|
16 ch x 2
lines |
5 x 8 dots
|
2.95 x 5.55
|
85.0 x 35.0x
10.0 |
KS0066 or
Equivalent
|
1/16 duty
|
|
|
SSX16269
|
|
16 ch x 2
lines |
5 x 8 dots
|
4.84 x 8.06
|
|
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
122.0 x 44.0 x
14.0 |
SSX1640
|
Reflectiv
|
16 ch x 4
lines |
5 x 8 dots
|
2.95 x 4.75
|
87.0 x 60.0 x
10.0 |
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
87.0 x 60.0 x
14.5 |
SSX2011
|
Reflectiv
|
20 ch x I
lines |
5 x 8 dots
|
6.0 x 14.54
|
180.0 x 40.0 x
10.0 |
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
180.0 x 40.0 x
14.5 |
SSX2020
|
Reflective
|
20 ch x 2
lines |
5 x 8 dots
|
3.20 x 5.55
|
116.0 x 37.0 x
10.5 |
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
11 6.0 x 36.0
x 15.0 |
SSX2021
|
Reflective
|
20 ch x 2
lines |
5 x 8 dots
|
6.00 x 9.66
|
180.0 x 40.0 x
9.0 |
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
180.0 x 40.0 x
14.5 |
SSX2023
|
Reflective
|
20 ch x 2
lines |
5 x 8 dots
|
3.20 x 5.55
|
116.0 x 39.0 x
9.5 |
KS0066 or
Equivalent
|
1/16 duty
|
|
|
SSX2027
|
|
20 ch x 2
lines |
5 x 8 dots
|
2.492 x 4.618
|
|
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
800.0 x 36.0 x
15.0 |
SSX20211
|
Reflective
|
20 ch x 2
lines |
5 x 8 dots
|
3.20 x 5.55
|
86.9 x 33.4 x
9.0 |
KS0066 or
Equivalent
|
1/16 duty
|
|
|
SSX2040
|
Reflective
|
20 ch x 4
lines |
5 x 8 dots
|
2.95 x 4.75
|
98.0 x 60.0 x
10.0 |
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
98.0 x 60.0 x
14.5 |
SSX2041
|
Reflective
|
20 ch x 4
lines |
5 x 8 dots
|
4.84 x 9.22
|
146.0 x 62.5 x
10. |
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
146.0 x 62.5 x
14.5 |
SSX2043
|
Reflective
|
20 ch x 4
lines |
5 x 8 dots
|
3.45 x 6.35
|
105.0 x 61.0 x
14.5 |
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
105.0 x 61.0 x
14.5 |
SSX2420
|
Reflective
|
20 ch x 2
lines |
5 x 8 dots
|
3.20 x 5.55
|
11 8.0 x 36.0
x 10.0 |
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
11 8.0 x 36.0
x 14.5 |
SSX2440
|
Reflective
|
20 ch x 4
lines |
5 x 8 dots
|
2.70 x 5.55
|
93.0 x 60.0 x
10. |
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
|
SSX4020
|
Reflective
|
20 ch x 2
lines |
5 x 8 dots
|
3.20 x 5.55
|
182.0 x 33.5 x
10. |
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
182.0 x 33.5 x
14.0 |
SSX4040
|
Reflective
|
20 ch x 4
lines |
5 x 8 dots
|
2.78 x 4.89
|
190.0 x 54.0 x
10.0 |
KS0066 or
Equivalent
|
1/16 duty
|
LED B/L
|
190.0 x 54.0 x
14.0 |
Note
LED B/L thickness,
|
L - Array
LED, 9 -- 9.6mm height above PCB
|
LI - Array
LED, 8.0mm height above PCB
|
L2 Array
LED, 7.25mm height above PCB
|
L3 Edge-lite
LED, 7.0mm height above PCB
|
|
TAB类产品
|
Display
Format
|
Part
No.
|
Variation
|
Option
|
Dot Size
(W*Hmm)
|
Outline Dimension
(W*H*Tmm)
|
Built-in
Controller
|
T/C
|
DC/DC
|
96*32
|
TG96320
|
Reflective
|
|
|
0.30*0.33
|
39.0*40.02*1.65
|
SSD1810ATR
|
96*32
|
TG96322
|
EL B/L
|
|
|
0.30*0.33
|
53.0*26.0*3.5
|
SED1530TAA
|
120*32
|
TG12321
|
LED B/L
|
|
|
0.30*0.34
|
59.0*28.5*8.0
|
MC141803T
|
122*32
|
TG12324
|
Reflective
|
|
|
0.30*0.34
|
49.8*42.37*2.1
|
MC141803T
|
128*64
|
TG12643
|
Transflective
|
|
|
0.38*0.34
|
58.0*54.6*2.1
|
SED1565
|
128*64
|
TG12644
|
LED B/L
|
★
|
★
|
0.48*0.48
|
112.7*54.0*13.0
|
SED1565
|
132*64
|
TG13652
|
LED B/L,T/P
|
★
|
★
|
0.35*0.49
|
62.5*51.6*6.5
|
SED1565
|
132*64
|
TG13653
|
LED B/L
|
★
|
★
|
0.35*0.49
|
74.5*51.6*6.5
|
SED1565
|
132*65
|
TG13655
|
EL/BL
|
★
|
★
|
0.295*0.31
|
55.0*45.0*6.2
|
SED1565
|
|
|
|
|
|
|
|
160*160
|
TG16162
|
EL B/L
|
★
|
|
0.335*0.335
|
69.0*69.5*5.5
|
LH1560
|
TG16163
|
EL B/L,T/P
|
★
|
|
0.335*0.335
|
70.2*89.5*12
|
LH1560
|
TG16167
|
EL B/L,T/P
|
|
|
0.335*0.335
|
69.4*89.4*5.2
|
NT7701
|
TG16168
|
EL B/L,T/P
|
★
|
|
0.335*0.335
|
70.2*70.7*12.0
|
LH1560
|
TG16169
|
EL B/L,T/P
|
|
|
0.245*0.245
|
52.88*51.88*3.55
|
NT7701
|
240*160
|
TG24161
|
EL B/L
|
|
|
0.23*0.23
|
84.6*56.1*5.1
|
LH1560/LH1562
|
TG24163
|
EL B/L,T/P
|
★
|
★
|
0.23*0.23
|
70.5*52.3*6.3
|
NT7701/LH1562
|
240*320
|
TG24323
|
EL B/L,T/P
|
★
|
★
|
0.225*0.225
|
98.6*70.45*12
|
LH1560/LH1562
|
TG24324
|
EL B/L,T/P
|
★
|
★
|
0.225*0.225
|
70.45*89*7.2
|
LH1560/LH1562
|
320*200
|
TG32201
|
EL B/L
|
★
|
★
|
0.27*0.27
|
122.8*79.0*7.8
|
LH1560/LH1562
|
320*240
|
TG32242
|
Reflective
|
★
|
|
0.34*0.34
|
150.0*106.0*2.7
|
MSM6778/MSM6779
|
TG32243
|
EL B/L,T/P
|
★
|
★
|
0.225*0.225
|
89.0*70.45*12
|
LH1560/LH1562
|
320*480
|
TG32481
|
EL B/L,T/P
|
★
|
★
|
0.20*0.20
|
82.0*124*8.8
|
NT7701/LH1562
|
640*200
|
TG64201
|
Reflective
|
★
|
★
|
0.24*0.30
|
202*88.4*10.5
|
NT7701/LH1562
|
类型 |
型号 |
显示内容 |
外型尺寸LxWxH)/mm |
视域尺寸
/mm |
点大小/点阵数 /mm |
点间距
/mm |
内藏控制器 |
字符型 |
MS0802A |
8x2 |
40.0x35.0 |
30.4x14.0 |
5x8 |
2.78x2,78 |
KS0066U |
MS0802B |
8x2 |
58.0x32x10 |
38x16 |
5x8 |
2.96x5.56 |
KS0066U |
MS1601A |
16x1 |
80.0x36.0 |
64.5x14.0 |
5x8 |
3.02x5.66 |
KS0066U |
MS1601B |
16x1 |
122.0x33.0 |
101.0x15.0 |
5x8 |
9.61x6.30 |
KS0066U |
MS1602A |
16x2 |
80.0x36.0 |
64.5x14.0 |
5x8 |
3.00x5.50 |
KS0066U |
MS1602B |
16x2 |
84.0x44.0 |
64.5x14.0 |
5x8 |
3.00x5.50 |
KS0066U |
MS1602H |
16x2 |
85.0x29.00 |
64.5x14.0 |
5x8 |
3.00x5.50 |
KS0066U |
MS1602K |
16x2 |
84.0x44.0 |
62.0x18.0 |
5x8 |
2.95x5.55 |
KS0066U |
MS1602L |
16x2 |
122.0x44.0 |
99.0x24.0 |
5x8 |
9.66x4.84 |
KS0066U |
MS1604A |
16x4 |
87.0x60.0 |
61.8x25.2 |
5x8 |
5.50x5.50 |
KS0066U |
MS2002A |
20x2 |
116.0x37.0 |
83.0x18.5 |
5x8 |
3.25x5.56 |
(3-5V驱动)KS0066U |
MS2002B |
20x2 |
180.0x40.0 |
149.0x23.0 |
5x8 |
5.92x9.52 |
KS0066U |
MS2002E |
20x2 |
116.0x40.0 |
83.0x18.5 |
5x8 |
5.92x9.52 |
(3-5V驱动)KS0066U |
MS2004A |
20x4 |
98.0x60.0 |
76.0x26.0 |
5x8 |
2.95x4.75 |
KS0066U |
MS4002A |
40x2 |
182.0x33.55 |
154.0x15.8 |
5x8 |
3.2x5.55 |
KS0066U |
MS4004A |
40x4 |
196.0x56.00 |
167.0x33.0 |
5x8 |
3.45x5.98 |
KS0066U |
图 形 型 |
MS6424A |
64x24 |
35.0x40.5 |
28.00x15.00 |
0.350x0.450 |
0.40x0.50 |
内藏汉字库 |
MS6464A |
64x64 |
56.5x42.0 |
33.40x33.4 |
0.400x0.400 |
0.45x0.45 |
HD61202 |
MS12016A |
120x16 |
61.0x30.0 |
45.00x12.0 |
0.320x0.360 |
0.36x0.40 |
SED1520 |
MS12232A |
122x32 |
67.0x27.0 |
54.80x18.20 |
0.360x0.410 |
0.40x0.45 |
SED1520 |
MS12232B |
122x32 |
84.0x44.0 |
60.50x18.00 |
0.360x0.360 |
0.40x0.40 |
外振或内振SED1520 |
MS12232C |
122x32 |
76.5x29.0 |
54.80x18.20 |
0.360x0.360 |
0.40x0.40 |
SED1520 |
MS16032A |
160x32 |
122.2x44.0 |
100.0x24.50 |
0.550x0.550 |
0.59x0.59 |
SED1520 |
MS12832A |
128x32 |
110.0x65.0 |
76.00x25.00 |
0.520x0.520 |
0.57x0.57 |
内藏汉字库或KS0108 |
MS12864A |
128x64 |
113.0x65.0 |
73.50x39.00 |
0.440x0.410 |
0.50x0.46 |
KS0108 |
MS12864B |
128x64 |
86.50x61.0 |
71.00x38.80 |
0.480x0.480 |
0.52x0.52 |
KS0108 |
MS12864F/C |
128x64 |
78.00x70.00 |
62.00x44.00 |
0.390x0.550 |
0.44x0.60 |
T6963C或KS0108 |
MS12864I |
128x64 |
54.0ox50.00 |
43.50x29.00 |
0.280x0.350 |
0.32x0.39 |
KS0108 |
MS12864N |
128x64 |
75.00x68.00 |
60.50x32.20 |
0.400x0.400 |
0.43x0.43 |
KS0108 |
MS12864J |
128x64 |
93.00x70.00 |
70.80x38.80 |
0.48x0.480 |
052x0.52 |
KS0108 |
MS12864M |
128x64 |
110.0x70.00 |
70.80x38,80 |
0.48x0.480 |
0.52x0.52 |
超低功耗KS0108 |
MS12864T |
128x64 |
58.00x39.50 |
54.00x31.00 |
.350x0.340 |
0.38x0.37 |
TAB |
MS19264A |
192x64 |
100.0x60.00 |
84.00x31.00 |
0.39x0.390 |
0.39x0.39 |
KS0108 |
MS19264B |
192x64 |
130.0x65.00 |
104.0x39.00 |
0.46x0.460 |
0.51x0.51 |
KS0108 |
MS192128A |
192*128 |
100*83.50 |
78.9*54.85 |
0.37*0.37 |
0.40*0.40 |
|
MS160160A |
160x160 |
69.00x69.50 |
60.00x60.10 |
0.335x0.335 |
0.35x0.35 |
TAB |
MS160128A |
160x128 |
129.0x102.00 |
101.0x82.00 |
0.54x0.540 |
0.40x0.40 |
T6963C |
MS128128A |
128x128 |
72.40x69.90 |
49.00x49.00 |
0.32x0.320 |
0.35x0.35 |
T6963C |
MS24064A |
240x64 |
180.0x65.00 |
132.0x39.00 |
0.49x0.490 |
0.53x0.53 |
T6963C |
MS25664A |
256x64 |
180.0x65.00 |
132.0x39.00 |
0.46x0.500 |
0.50x0.540 |
内藏汉字库 |
MS240128A |
240x128 |
144.0x10.40 |
114.0x64.00 |
0.40x0.400 |
0.05x0.05 |
T6963C |
MS240128B |
240x128 |
160.0x10.40 |
114.0x64.00 |
0.40x0.400 |
0.05x0.05 |
T6963C.ccfl蓝屏 |
MS240128K |
240x128 |
120.0x86.50 |
93.00x48.00 |
0.30x0.300 |
0.33x0.33 |
T6963C(信息电话机) |
MS320240A |
320x240 |
167.0x109.0 |
122.0x92.00 |
0.33x0.330 |
0.36x0.36 |
SED1335ccfl蓝屏 |
MS320*240 |
320*240 |
139.0*120.0 |
103.0*79.0 |
0.285*0.285 |
0.3*0.3 |
Sed13305ccfl |
MS128*64P |
128*64 |
50.4*51 |
49.0*38.0 |
0.35*0.32 |
0.54*0.51 |
Ssd1815 |
|
|
(注) :以上产品均可以加带EL、LED、CCFL背光,图形模块可自带负压,单电源5V工作,宽温范围为-3 0℃至8
0℃。欢迎客户来电垂询,订做各种特殊要求液晶显示模块。 |
|
|
|
|
